– AMF20/25, SW version 2.2, ©ComAp – September 2014 26
IL-NT-AMF-2.2-Reference Guide.pdf
Stand-by Applications

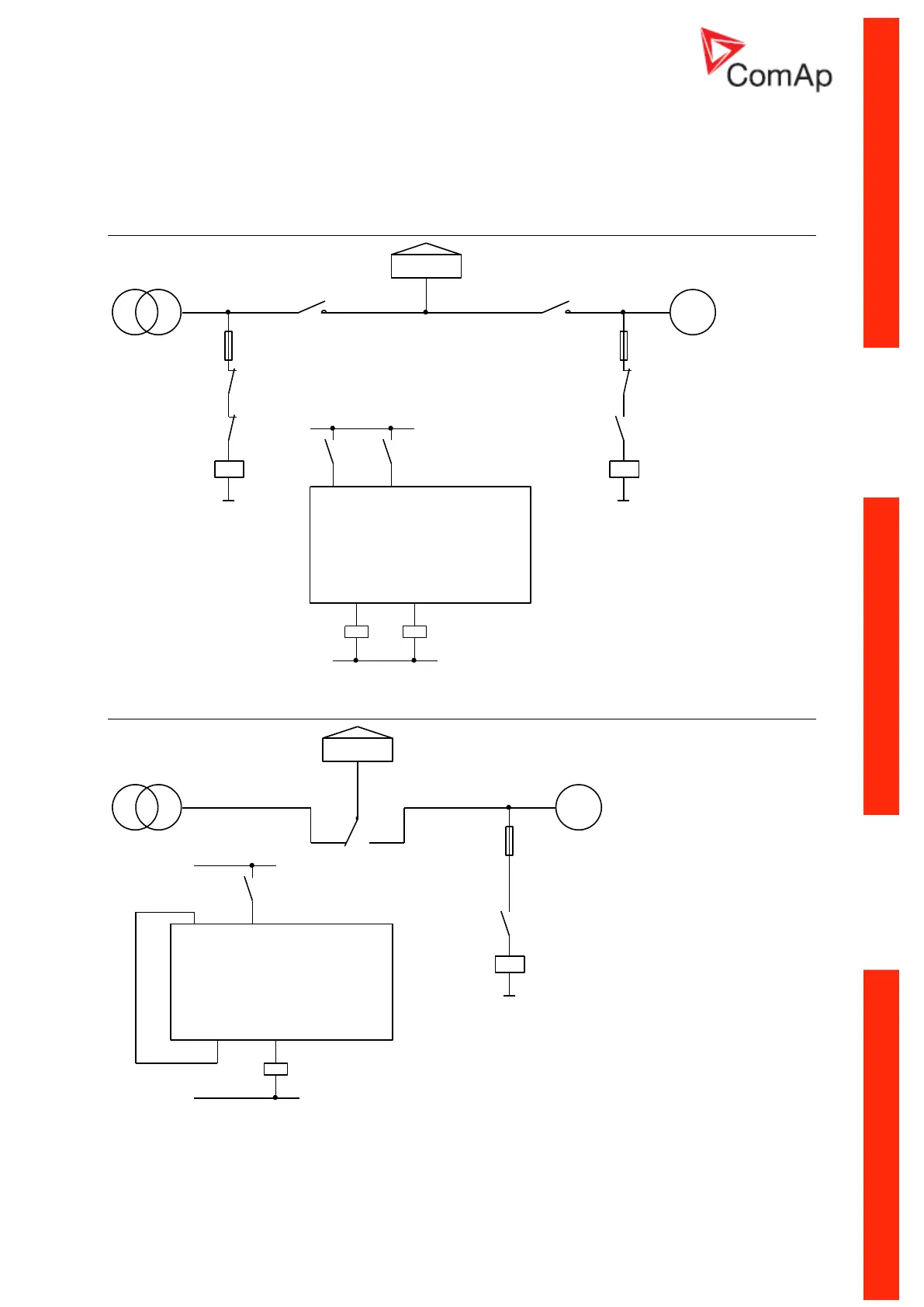

Contactors (set point MCB Logic = “CLOSE-OFF”)
FEEDBACK
+24V(12V)
MCGC
K3
GCB
CLOSE/OPEN
GC
MC
MCB
G~
GCB
MCB
FEEDBACK
CLOSE/OPEN
0V
MC
T
GC
K3
GC
LOAD
MC
K4
K4
ATS with two stable positions (set point MCB Logic = “CLOSE-ON”)
FEEDBACK
+24V(12V)
ATS
K3
GCB
MCB
G~
GCB
T
CLOSE/OPEN
ATS
0V
ATS
LOAD
FEEDBACK
CLOSE/OPEN
MCB
K3

ComAp intelilite nt amf25 Specifications

General

Communication Ports	RS232, RS485, USB
Power Supply	8-36 VDC
Number of Digital Inputs	8
Number of Digital Outputs	8
Number of Analog Inputs	3
Number of Analog Outputs	2
Display	LCD with backlight
Supported Protocols	Modbus
Operating Temperature	-20°C to +70°C
Humidity	95% non-condensing
Weight	0.4 kg
Protection	IP65 (front panel)
Controller Type	AMF Controller
Storage Temperature	-30 to +80 °C
