InteliLite

– AMF20/25, SW version 2.2, ©ComAp – September 2014 25

IL-NT-AMF-2.2-Reference Guide.pdf

Recommended Wiring

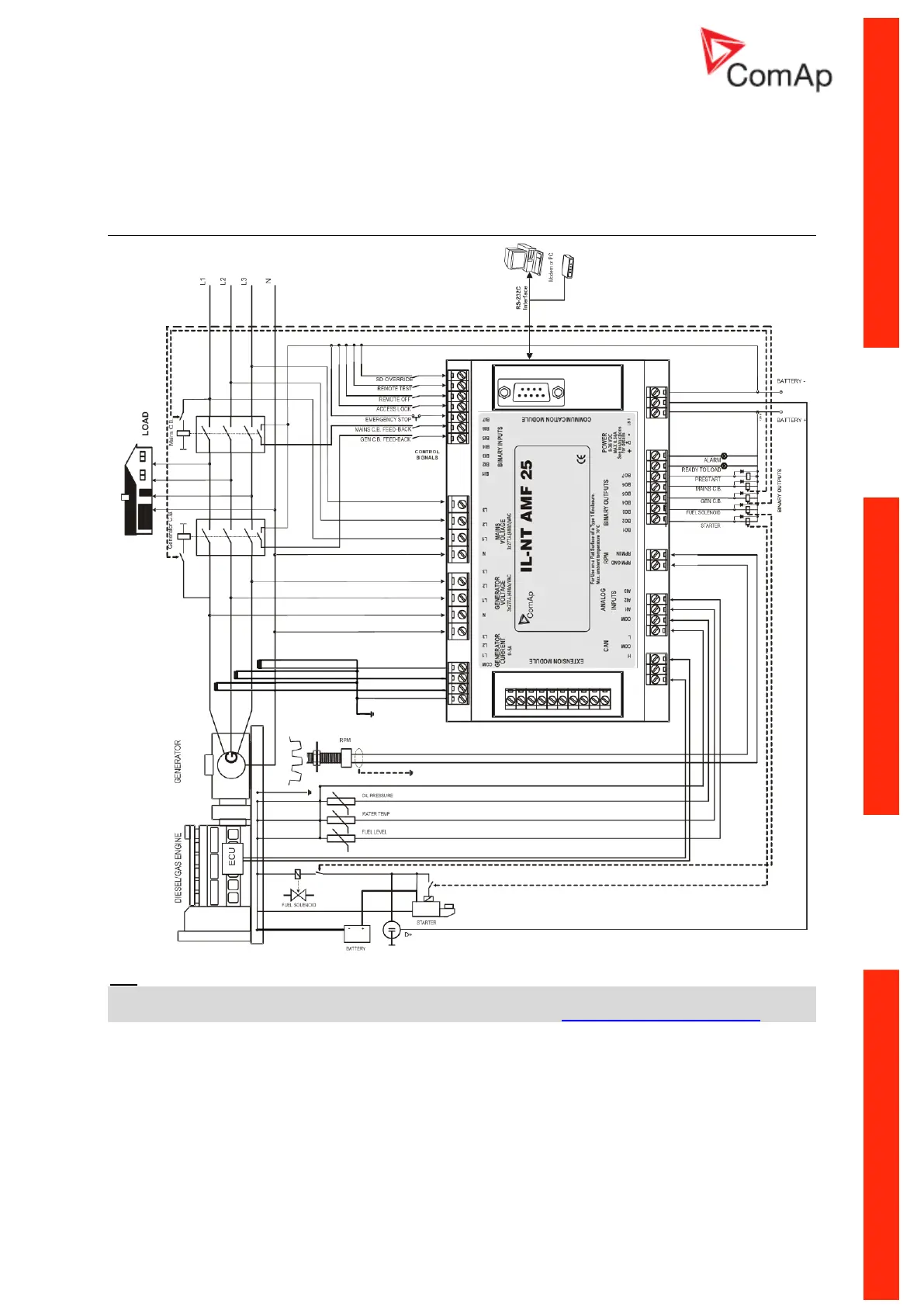

AMF – Wiring Diagram

Hint:

MCB and GCB is recommended to be mechanically interlocked.

It is possible to start Volvo and Scania engines via CAN bus. See Engines started via CAN bus.
