To insert the module, you must open the cover first (use screwdriver to open) and then insert the
module into slot. Once you have insert it, the module will snap under plastic teeth. It is supposed to be
installed permanently. Should you need to remove it, the safest way is to remove whole back cover
and then remove module manually.
How to install RS 232 communication module:
Hint:
The following procedure is analogic also for other communication modules.

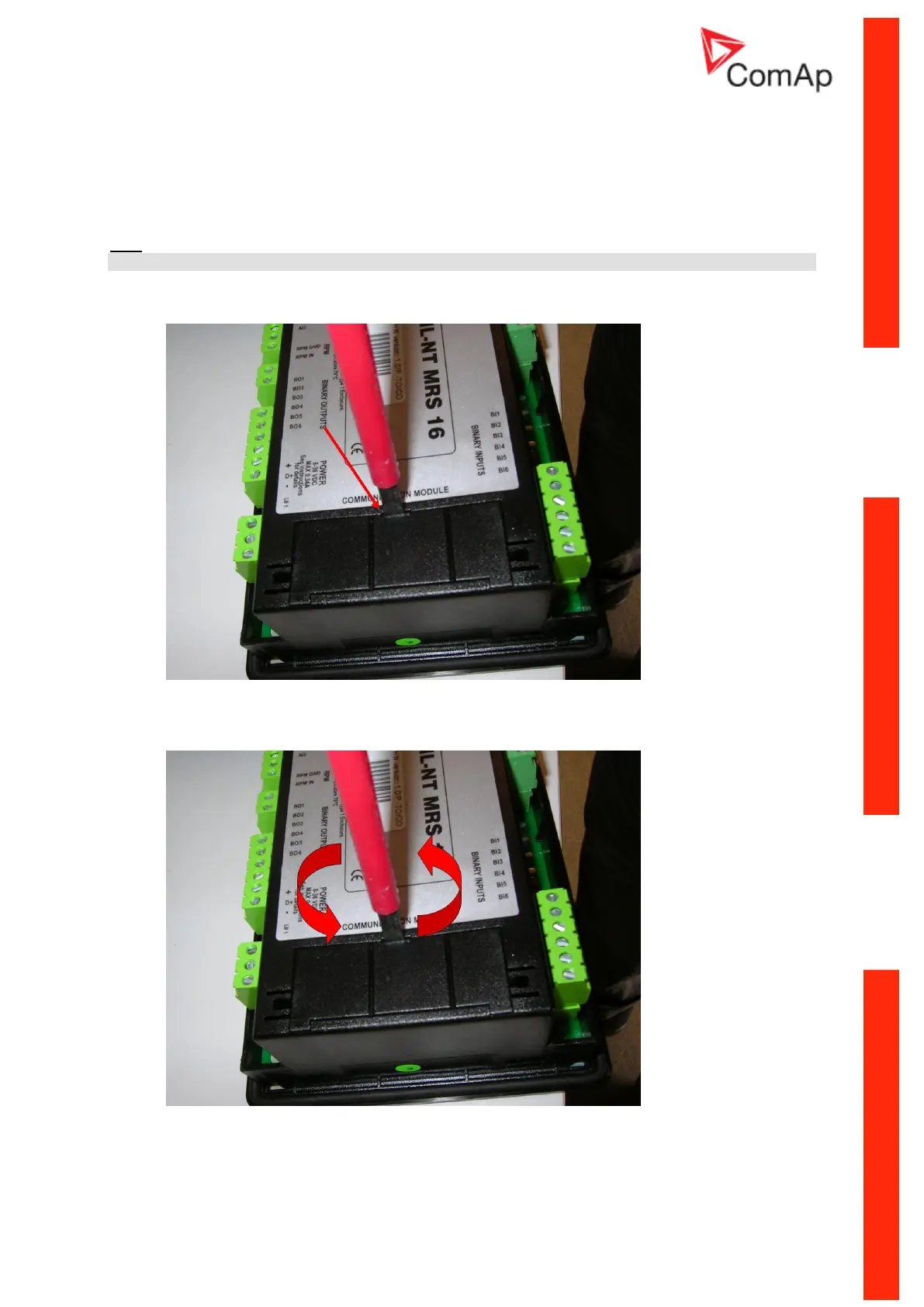

1. Insert a screwdriver into the slot of the cover.
2. Move the screwdriver to set apart the small cover. Be careful!
3. Remove the small cover.

ComAp intelilite nt amf25 Specifications

General

Communication Ports	RS232, RS485, USB
Power Supply	8-36 VDC
Number of Digital Inputs	8
Number of Digital Outputs	8
Number of Analog Inputs	3
Number of Analog Outputs	2
Display	LCD with backlight
Supported Protocols	Modbus
Operating Temperature	-20°C to +70°C
Humidity	95% non-condensing
Weight	0.4 kg
Protection	IP65 (front panel)
Controller Type	AMF Controller
Storage Temperature	-30 to +80 °C
