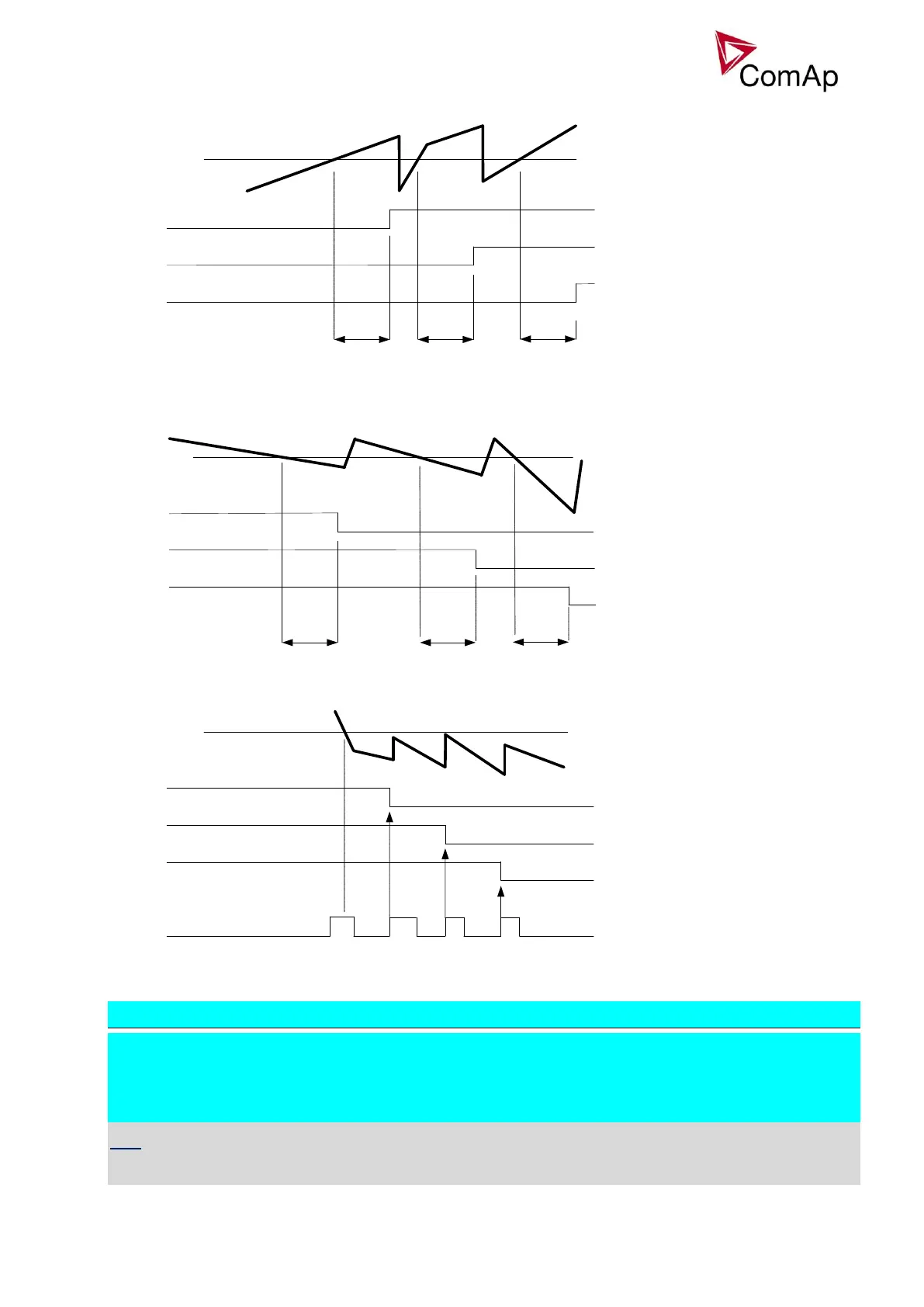

Ld shed del
Ld shed del
Ld shed del
BO Load shed 1
BO Load shed 2
BO Load shed 3
Ld shed level
Gen-set power
closed
closed
closed
Load reconnection – automatic -> AutoLd recon = ENABLED
Ld recon del Ld recon delLd recon del
BO Load shed 2
Ld recon level
Gen-set power
BO Load shed 3
BO Load shed 1
opened
opened
opened
Load reconnection – manual -> AutoLd recon = DISABLED
BO Load shed 2
Ld recon level
G
e
n
-
s
e
t
p
o
w
e
r
BO Load shed 3
BO Load shed 1
BI Man load recon
opened
opened
opened
no action
Power derating
This function linearly decreases genset nominal power according to analog input value.
Gen-set power starts decreasing when temperature measured by Analog input PowerDeratingX exceeds
DeratingX strt value.
Gen-set power is at DeratedX pwr value when temperature measured by Analog input Power deratingX is
equal or higher than DeratingX end value.
HINT
To use Power derating function configure at first Analog input PowerDeratingX to any IGS-NT or IS-AIN
analog input terminal by GenConfig.
