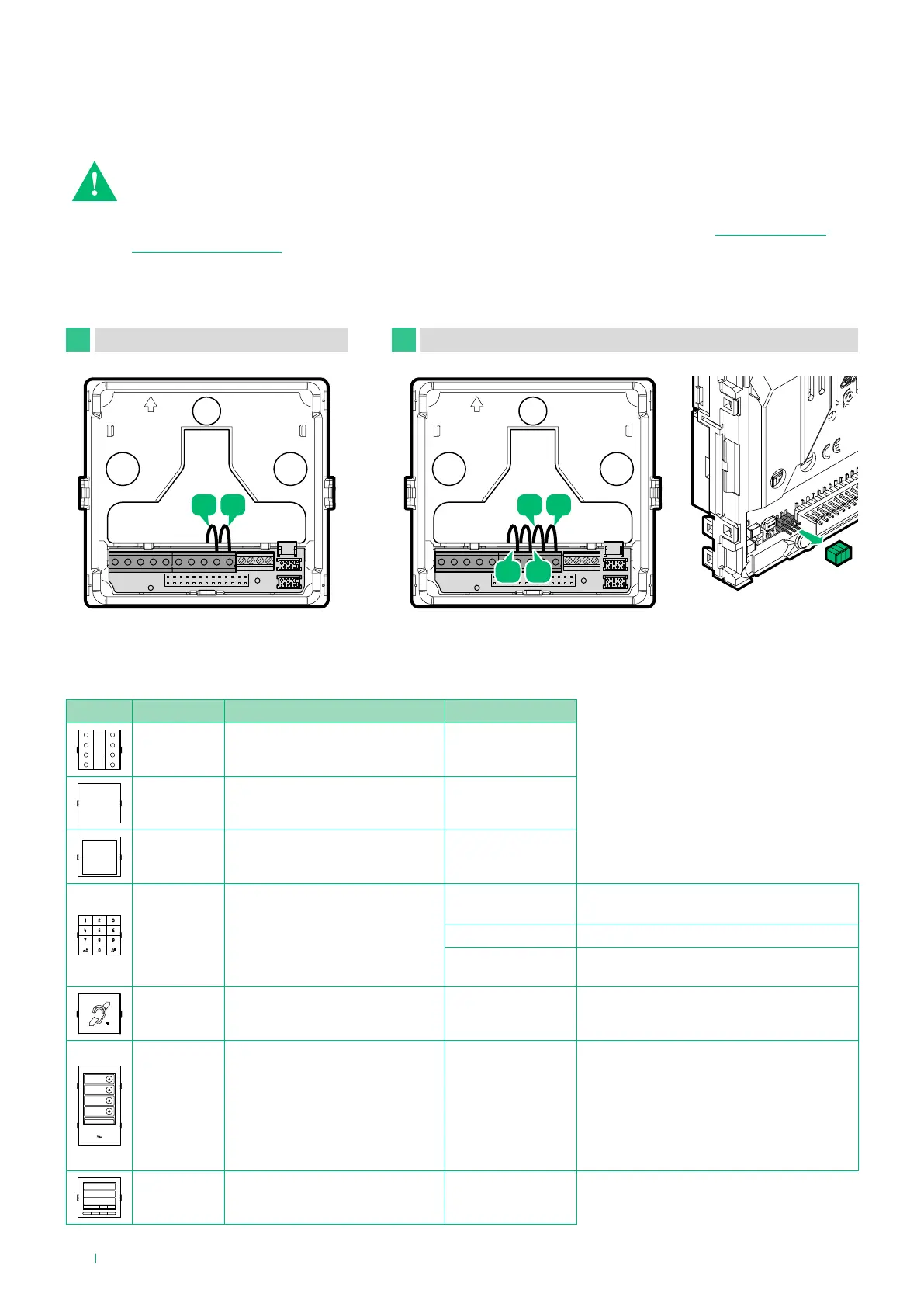

Module connection
For systems with art. UT2020/UT2010VC and power supply unit art. 1210/1210A, the maximum power
available for the outdoor entrance panel modules is 3.3 W.
Calculate the total power consumption of the modules in your system configuration using the Consumption
table.
If the total power consumption exceeds 3.3 W, connect a supplementary power supply unit (art. 1595) to
the V+ and V- contacts of the outdoor entrance panel, as shown in the figure below (see Connection with
separate power supply). In any case, the total absorption must be lower than 16.5 W.
Outdoor entrance panel module consumption table
powered by art. 1210/1210A
A B
powered by additional power supply unit art. 1595
Code Absorption (W)
UT9200 Call button modules 0.41
UT9240 Information module 0.41
UT9240M Metal information module 0.41
UT9279M Number keypad module
1.32
Relays disabled and audio or audio/video
module SE output used
2.47 With 1 bistable relay active
3.3
With 2 bistable relays active at the same
time
UT9310M Magnetic induction module 8.1
Always needs to be powered by additional
power supply unit Art. 1595
UT9270 Touchscreen module 3.3
In systems with an outdoor entrance
panel consisting of 1 audio or audio/video
module, Touch module art. UT9270 and up
to 80 users, it is not necessary to provide
any additional power supply.
For all other combinations, provide an
additional power supply unit art. 1595
UT9260M Digital directory module 1.98
