Comelit UT2020 - Programming Consecutive Smart User Codes

22
LL
1
S1 S2
8
8765
default
OFF
8765
ON
9
OFF
ON
1 2 3 4 6 75 8
4
S1 S2
3
ON
1 2 3 4 6 75 8
5
8765
default
OFF
8765
ON
2
=
1
6
= 2
+1
= 3
+1
= 4
+1
= 5
+1
7

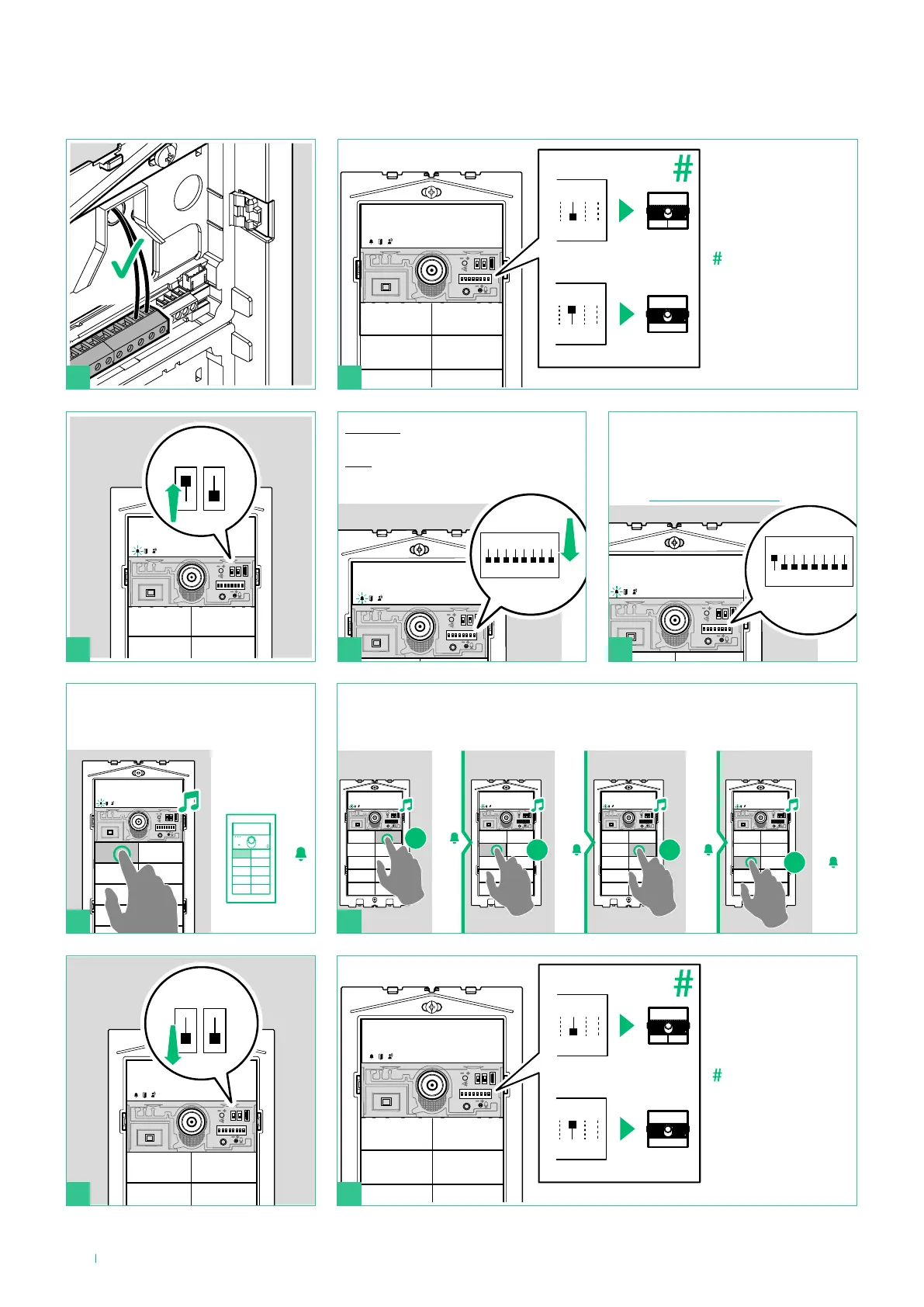

Programming consecutive smart user codes
example:
code 1
Set the user code of the apartment
you wish to call (for example:1)
using the DIP-switches
(see Table of user codes )
DIP 6: configuring
button type:
Single button (DIP6
ON).
Dual button (DIP6
OFF, default).
Press the button you want to
associate with the user code set
using the DIP-switches
Press the following buttons to assign consecutive user codes.
BEFORE you proceed:
Set
ALL DIP-switches to OFF, including
DIP 6.
DIP 6: configuring
button type:
Single button (DIP6
ON).
Dual button (DIP6
OFF, default).
