WARNING : Potential equalization conductor of the unit should be connected to the
potential equalization bus bar of the electrical installation when necessary.
4.2 Loading/Replacing Record Paper
There are two kinds of paper can be used as ECG record paper. One is Rolled thermosensitive
paper with 80mm width, and the other is folded thermosensitive paper with 80mm width.
Note: When using folded thermosensitive paper, the Paper Roller is unnecessary, and it can be
taken out.
When there is no record paper loaded or it reaches the end of record paper, warning message
“Paper?” will be given on the screen. Under this circumstance, record paper should be loaded
or replaced immediately.
Loading/Replacing Process for Rolled thermosensitive paper:
1) Place fingers under the flange of the recorder casing, pull upwards directly to release
the casing;
2) Take out the paper roller, and remove remain paper from the left of roller if necessary;
3) Take off the wrapper of thermosensitive paper roll, and then put through the roller from
the left with the paper’s grid side facing downward;
4) Place the paper and roller gently in the recorder with the roller pin on the roller’s left
side facing to the groove;
5) Pull about 2cm of paper out, and put down the recorder casing;
6) Secure the casing by pressing it firmly.

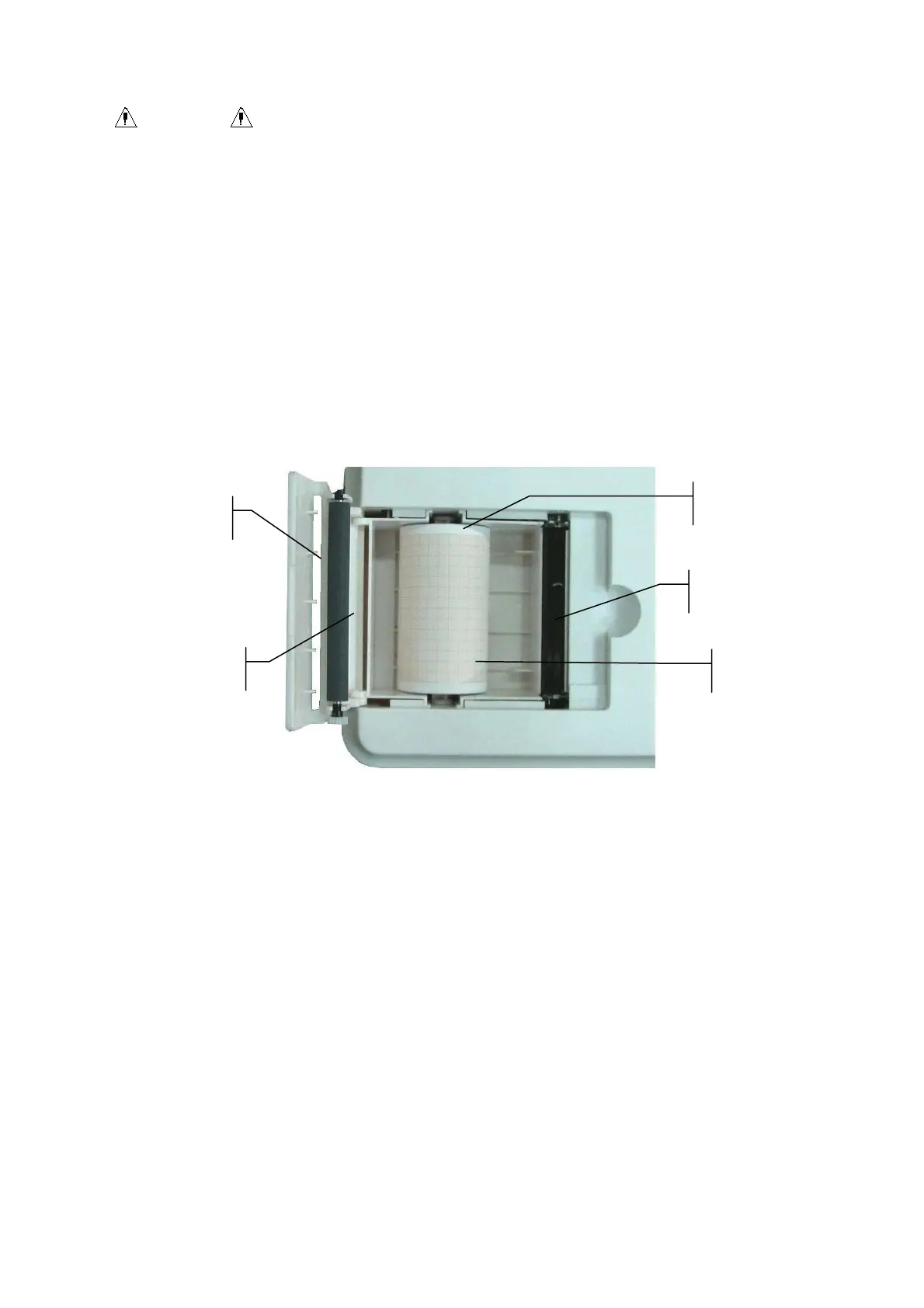

Paper Tray
Paper Roller
Thermal Print Head
Printer Platen
Recorder Casing
