Comen CM300 - Electrodes Connections

19
Connect Main Cable:
Plug the connector of main cable into the patient cable socket on the right side of the unit
according to the direction of arrow on the plug, and then secure it with two screws.
4.4 Electrodes Connections
Chest Electrode:
Limb Electrode:
The identifier and color code of electrodes used complies with IEC requirements. In order to
avoid incorrect connections, the electrode identifier and color code is specified in Table 4-1.
Moreover the equivalent code according to American requirements is given in Table 4-1 too.
Table 4-1 Electrodes and their identifier and color code
European American
Electrodes Identifier Color code Identifier Color code
Right arm R Red RA White
Left arm L Yellow LA Black
Right leg RF Black RL Green
Left leg F Green LL Red
Chest 1 C1 White/red V1 Brown/red
Chest 2 C2 White/yellow V2 Brown/yellow
Chest 3 C3 White/green V3 Brown/green
Chest 4 C4 White/brown V4 Brown/orange

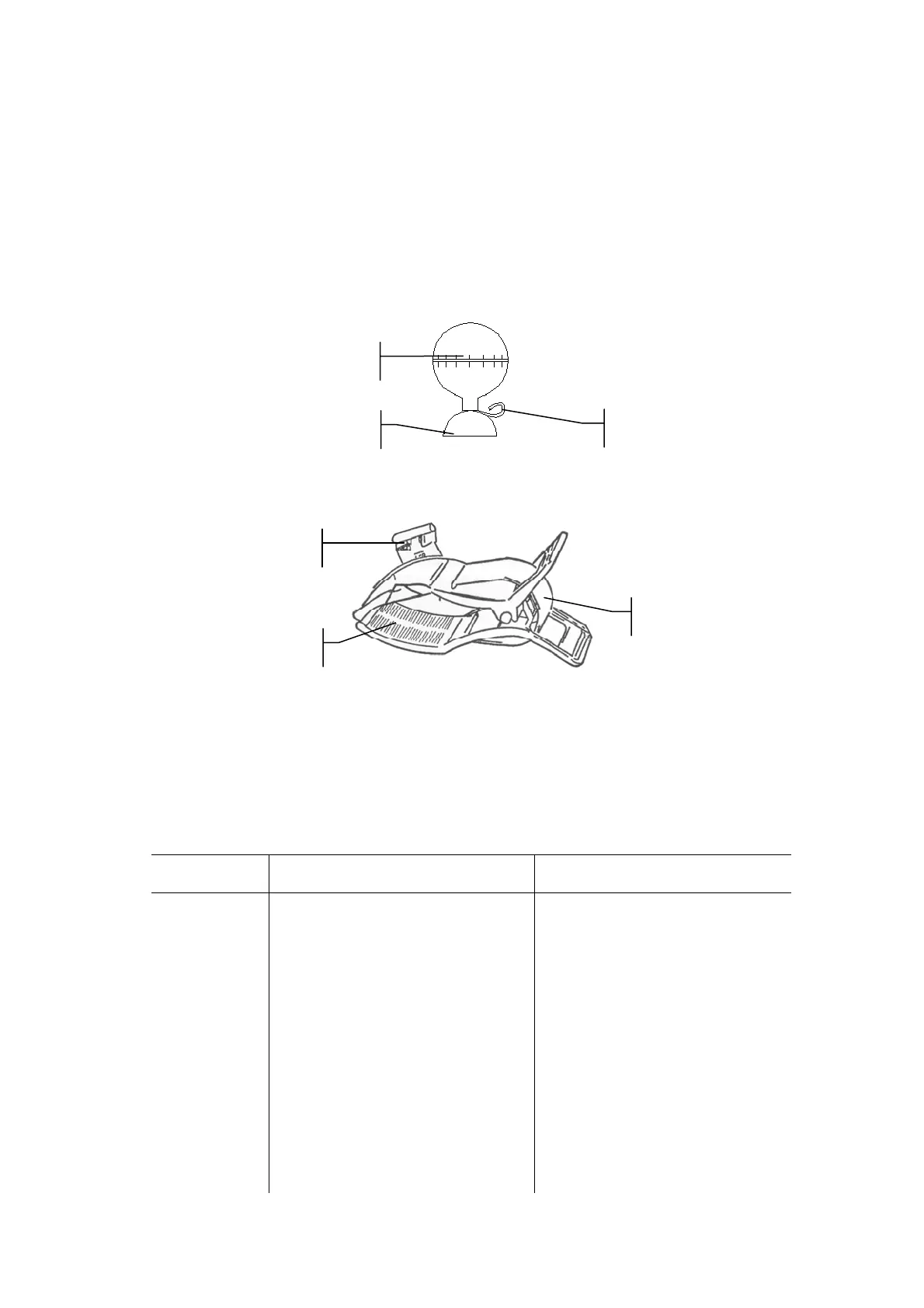

Reed
Electrode
Clamp
Suction Bulb
Electrode
Metal Cup
