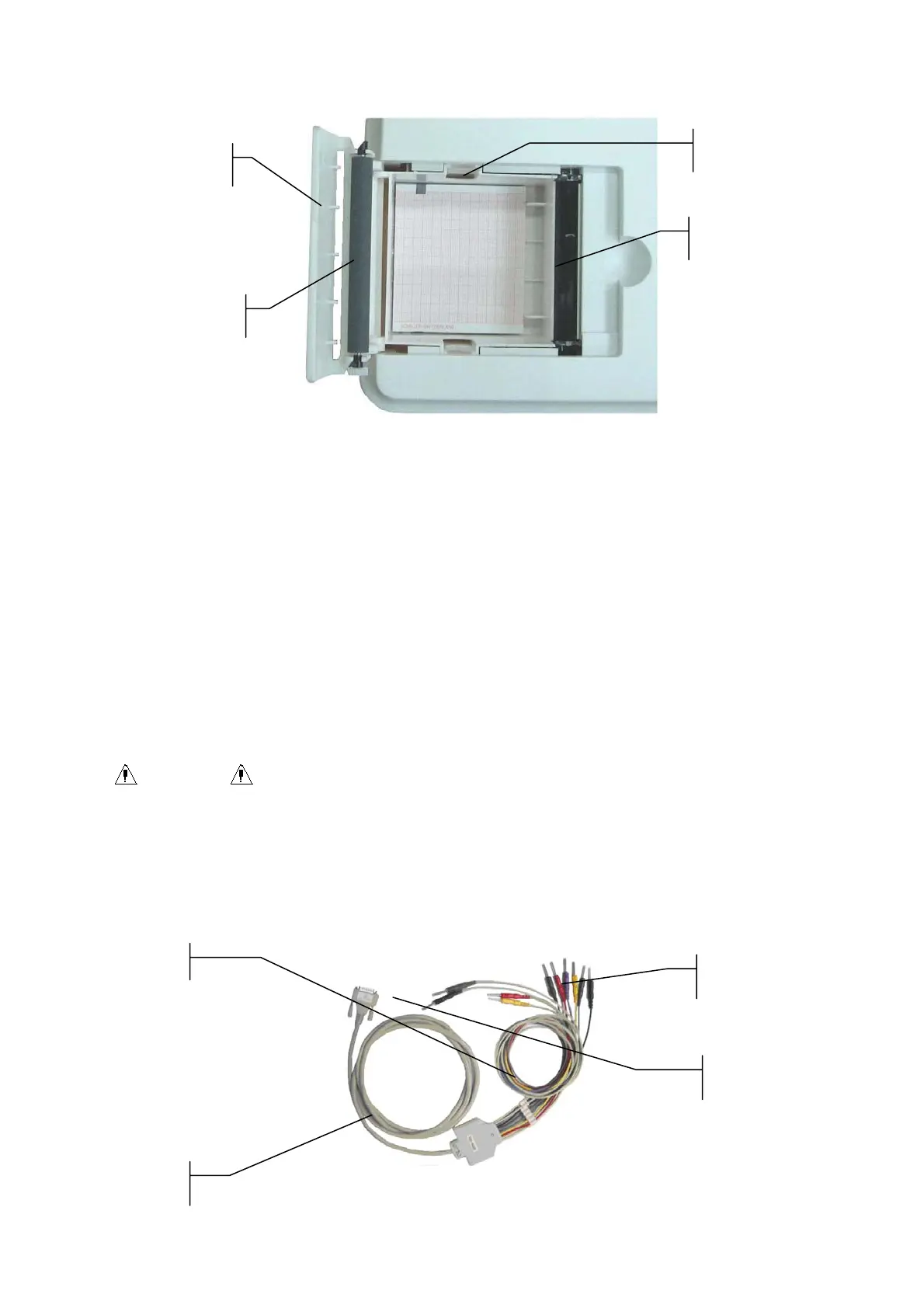

Loading/Replacing Process for Folded thermosensitive paper:
1) Place fingers under the flange of the recorder casing, pull upwards directly to release
the casing;
2) Remove remain paper in the Paper Tray if necessary;
3) Take off the wrapper of folded thermosensitive paper, and then put it in the Paper Tray
with the paper’s grid side facing upward and the thermal print head;
4) Pull about 2cm of paper out, and put down the recorder casing;
5) Secure the casing by pressing it firmly.
4.3 Patient Cable Connection
WARNING : The performance and electric shock protection can be guaranteed only if
original our company patient cable and electrodes are used.
Patient cable includes two parts, main cable and lead wires with associated connectors, which
can be distinguished from the color and identifier on the connectors.
Main Cable
Electrode Connector
Screw
Lead Wires
Paper Tray
Thermal Print Head
Printer Platen
Recorder Casing
