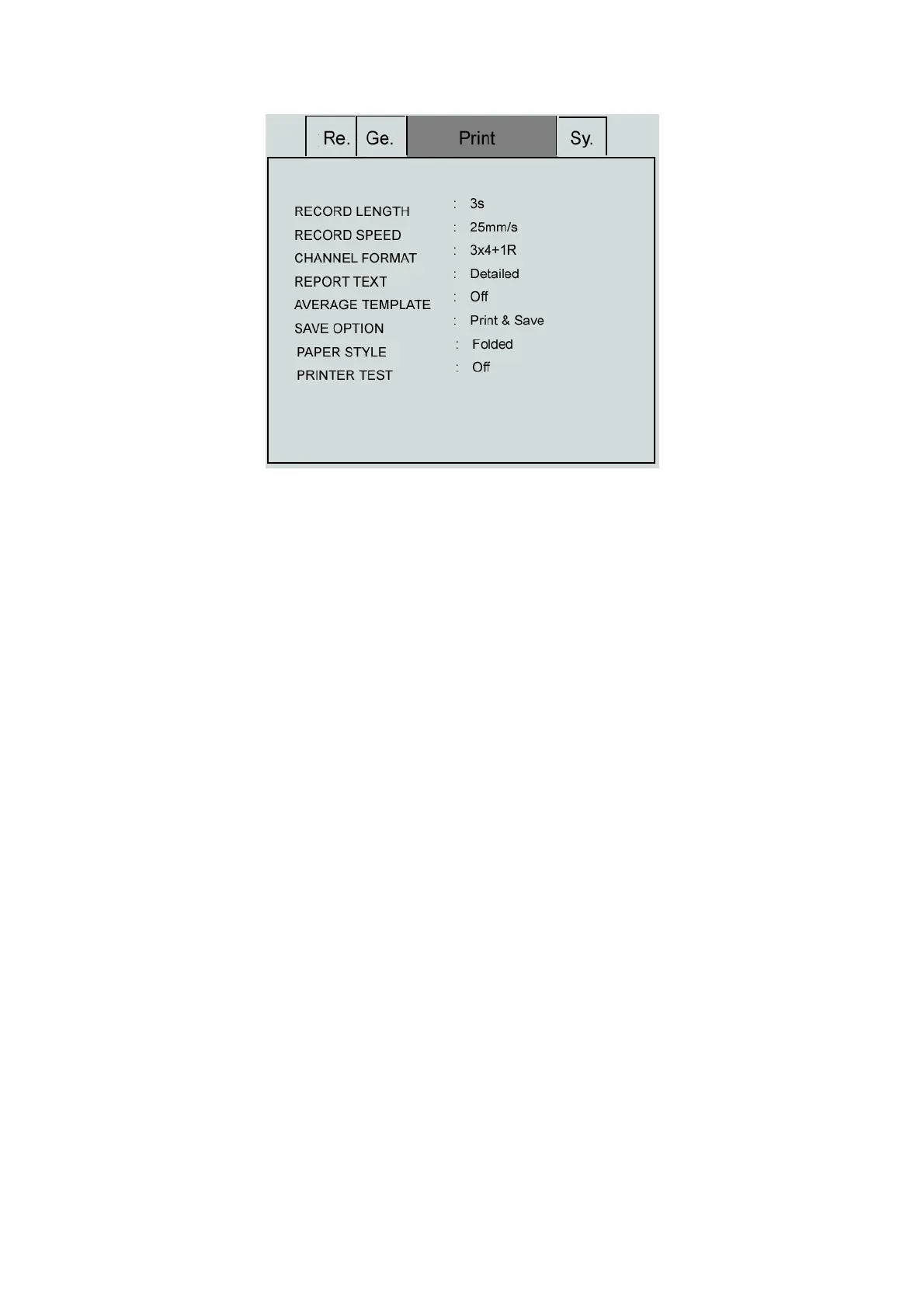

Figure 5-6 Print Interface
(1) RECORD LENGTH : 3S,6S,10S.
(2) RECORD SPEED: the paper driving speed of the recorder, there are five options for the user to set such as
5mm/sec, 10mm/sec, 12.5mm/sec, 25mm/sec and 50mm/sec.
Note: For the rhythm mode and automatic mode, the print only supports the paper driving speed of
25mm/s and 50mm/s.
(3) CHANNEL FORMAT: 3×4, 3×4+1R, 12×1., 1x12+1R
When it is set as 3×4, 12 leads are recorded in 3 channels and 4 sequences, record 2.5 seconds for each
sequence.
When it is set as 3×4+1R, 12 leads are recorded in 3 channels and 4 sequences, record 2.5 seconds for each
sequence and add 1 channel of rhythm lead waveform.
When it is set as 12×1, 12 leads are recorded in 12 channels and 1 sequences, record 2.5 seconds for each
sequence.
When it is set as 12×1+1R, 12 leads are recorded in 12 channels and 1 sequences, record 2.5 seconds for
each sequence and add 1 channel of rhythm lead waveform.
(4) REPORT TEXT: Off, basic, detailed.
When it is set as “Off”, there is only information set in the “Register”;
When it set as “Basic”, the print information include: information set in the “Register”, interval, electrical
axis, amplitude, etc;
When it is set as “Detailed”, the print information include: information set in the “Register”, interval,
electrical axis, amplitude, Minnesota code, diagnosis information, etc.
(5) Average Template: 4×3, 6×2+1R, Off.
When it is set as 3×4, 12 leads of average template waveforms are recorded in 3 channels and 4 sequences .
