F80CTL & G80CTL: Installation, Start–Up, Operating and Service and Maintenance Instructions

Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.

A03212

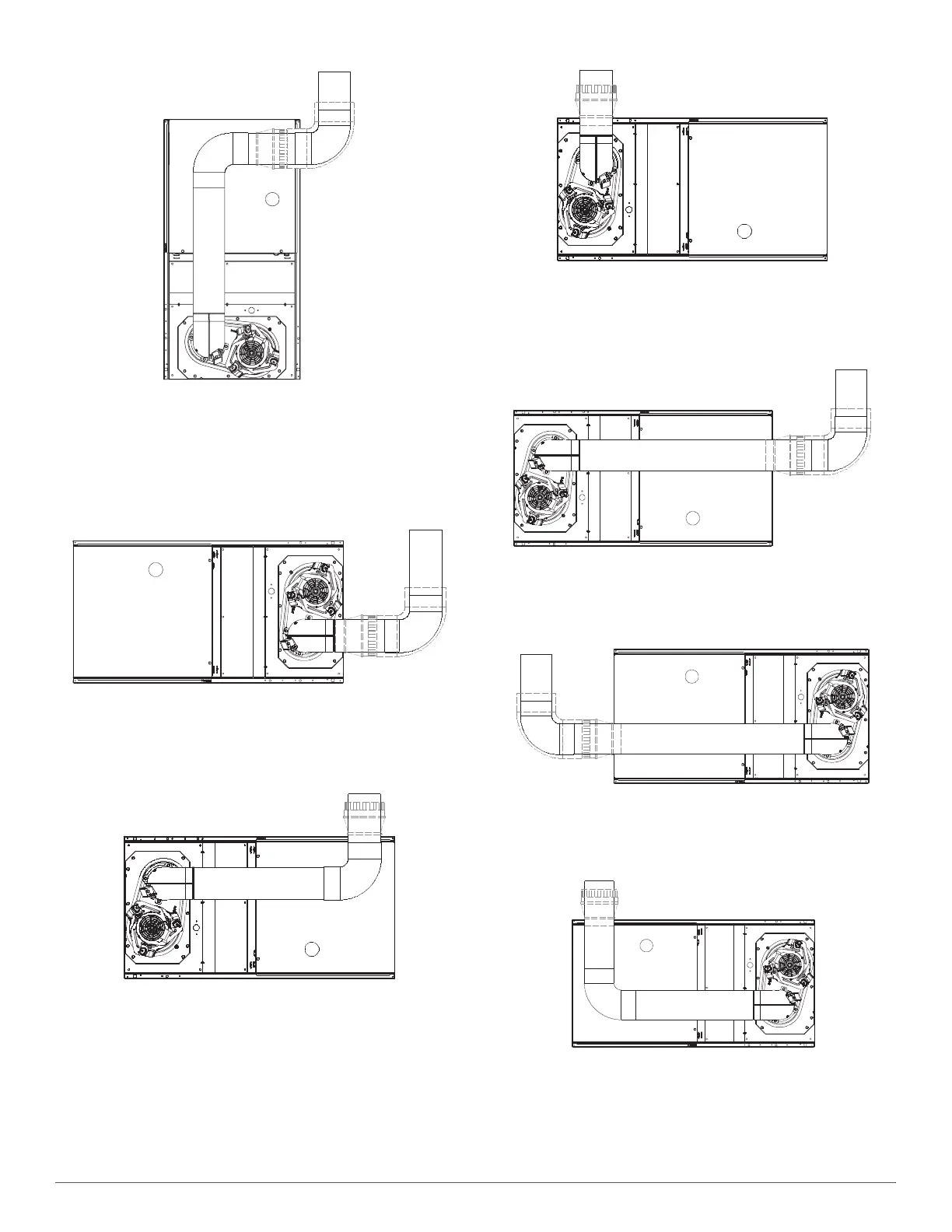

Fig. 40 – Downflow Application - Vent Elbow Up then Right

A03218

Fig. 41 – Horizontal Right Application-Vent Elbow Right

A03214

Fig. 42 – Horizontal Left Application - Vent Elbow Right then Up

A03215

Fig. 43 – Horizontal Left Application - Vent Elbow Up

A03216

Fig. 44 – Horizontal Left Application - Vent Elbow Right

A02068

Fig. 45 – Horizontal Right Application-Vent Elbow Left

A03219

Fig. 46 – Horizontal Right Application - Vent Elbow Left then Up
