0607
Ready:
Aluminum Profiles(4Pcs)
M5X25 Screw(4Pcs)
Ready:
X-axis assembly

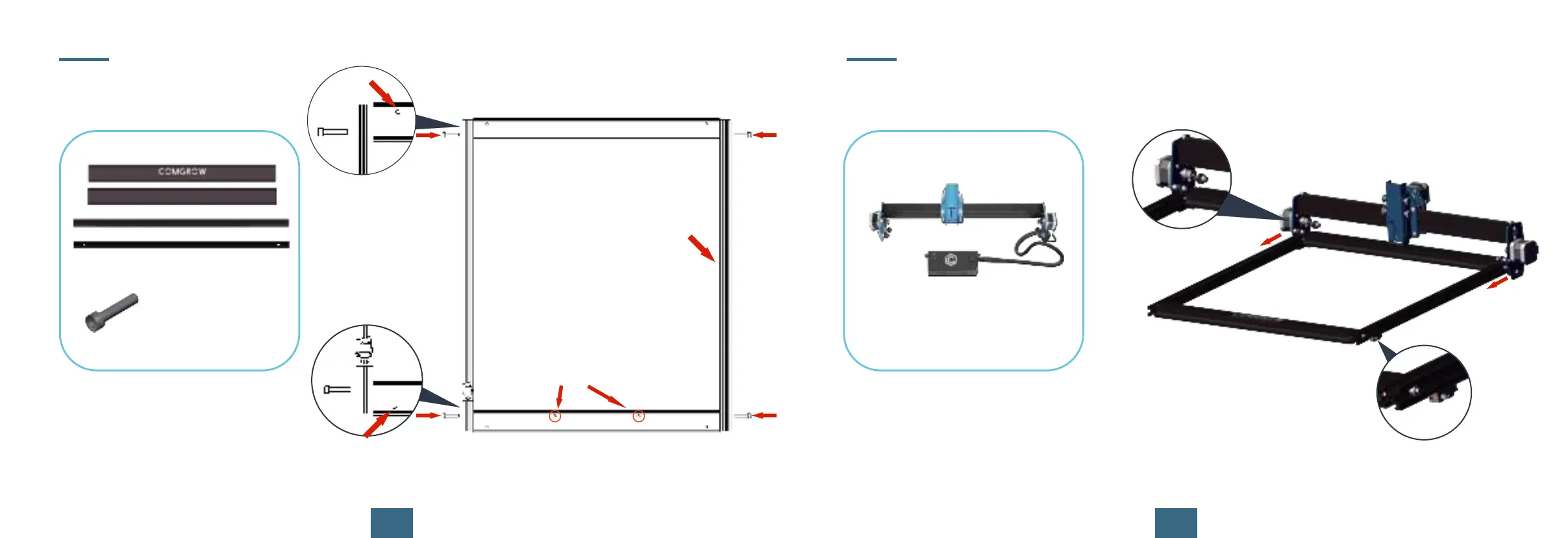

STEP1. Take out all four profiles and use four M5*25 screws for fixing
to complete the gantry installation.
STEP2.Takeout the X-axis assembly and embed it into the profile V-groove from
the rear in the Y-axis direction.
Frame Assembly Pt.1 Frame Assembly Pt.2
Note:the threaded holes are oriented outward.
Note:the threaded holes are
oriented outward.
Note the position of the limit switch!
This threaded hole is positioned
facing inward.
Tip: To watch the installation tutorial video, please visit SD Card.
The scale for this profile is on
the back.
To Next Page
