User Manual
37

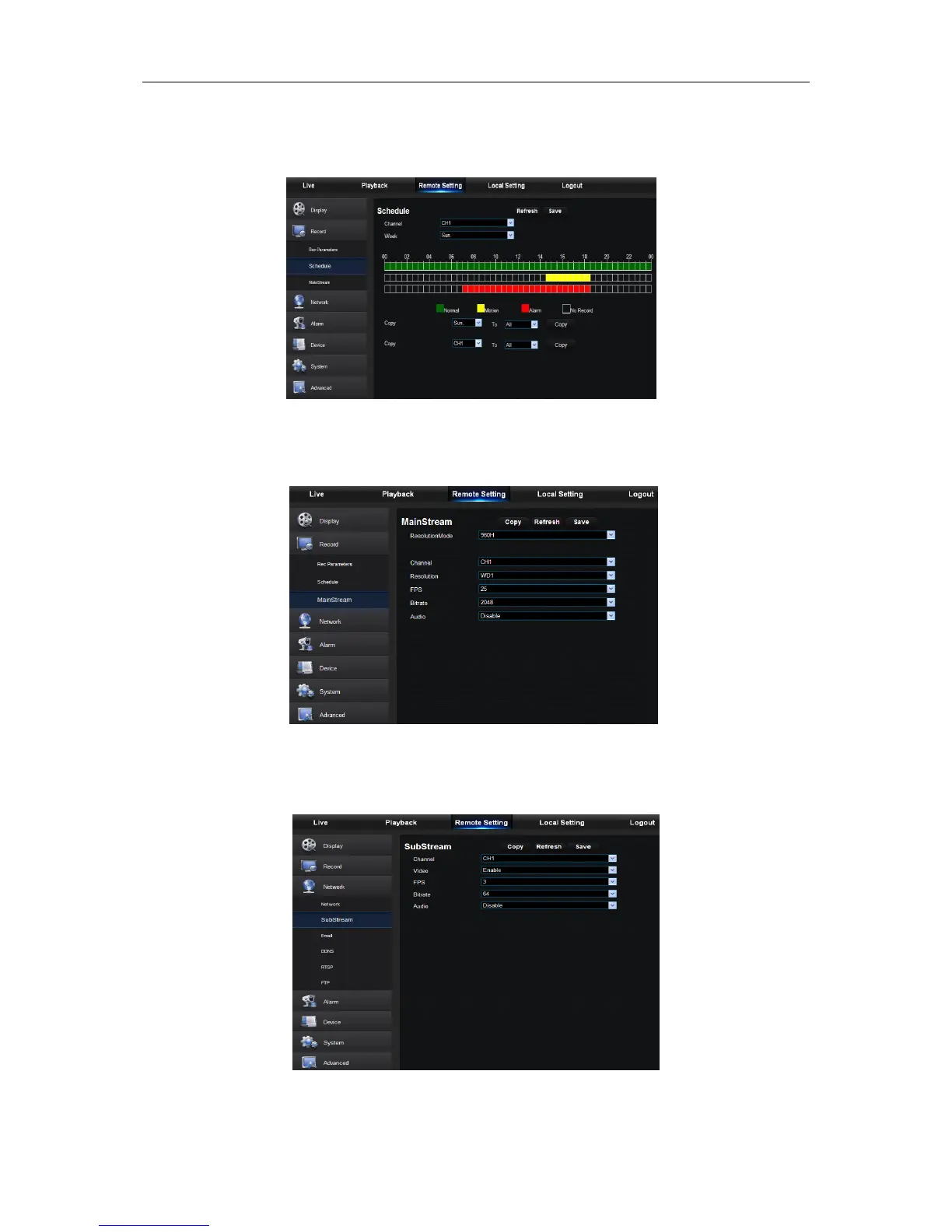

(2) Record Schedule. The parameters should be consistent with DVR local setting, as shown in
Fig. 6-16. Green stands for Normal record; Yellow stands for Motion detection; Red stands for I/O
trigger record.
Fig. 6-16
(3) Mainstream: User may set Mainstream, as shown in Fig. 6-17. The relevant parameters
should be consistent with DVR local setting.
Fig. 6-17
(4) Substream: User may set Mainstream, as shown in Fig. 6-19. The relevant parameters should
be consistent with DVR local setting.
Fig. 6-18
