2.4 <CPU and Memory Setup>
2.4.1 <CPU Setup>
The board comes with the socket478 for Intel Core 2 Duo socket-P processor Only, it
supports new generation of Intel Core 2 Duo socket-P processor with 533/800MHz of
front side bus and 4MB L2 cache. Please follow the instruction to install the CPU
properly.

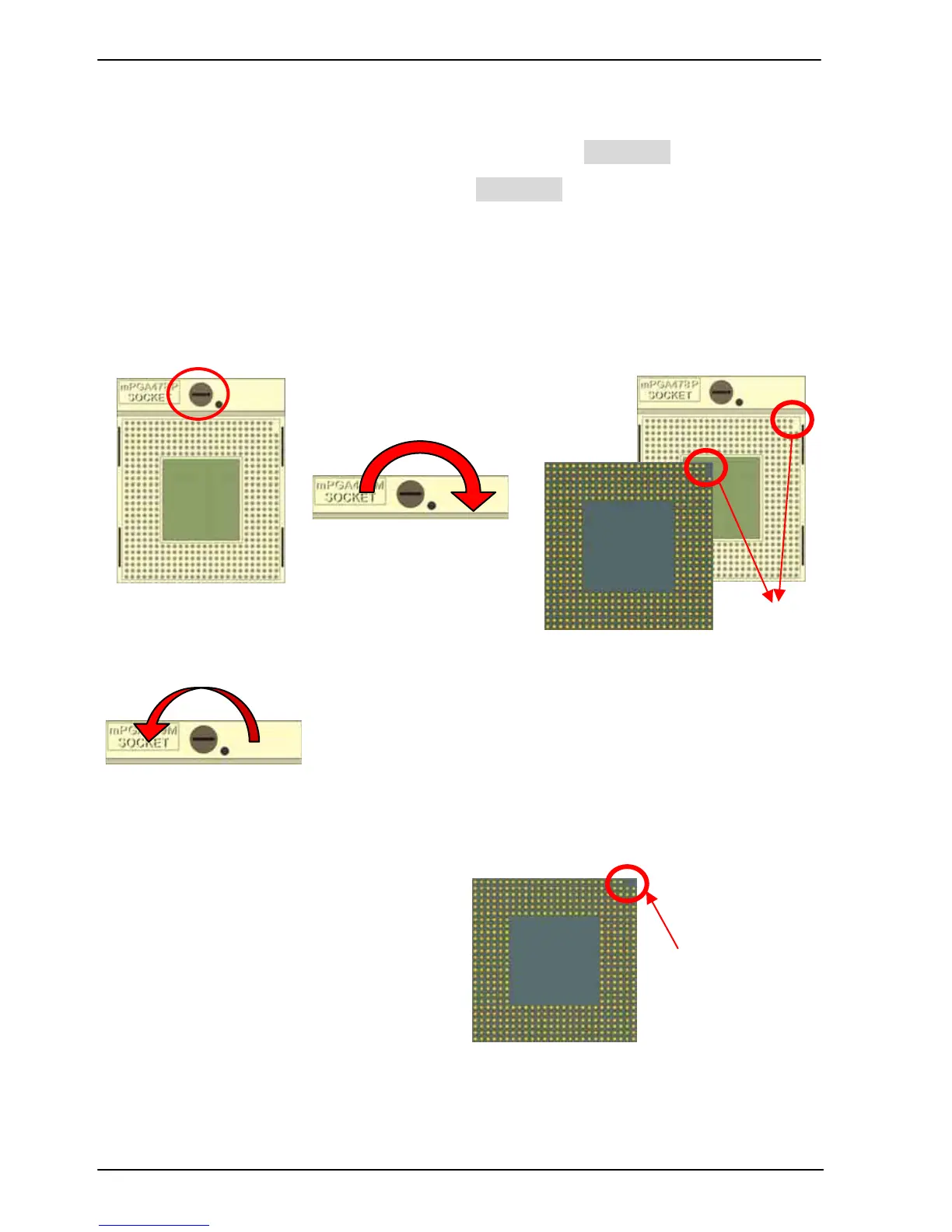

1. Use the flat-type
screw drive to unlock
the CPU socket
Unlock wa
y
Check
p
oint
2. Follow the pin direction to install
the processor on the socket
3. Lock the socket
4. Socket P has 478 pins, but is not
pin-compatible with Socket M
CPU.
Socket-M CPU
Check point
