LV-679User’s Manual
-
46-

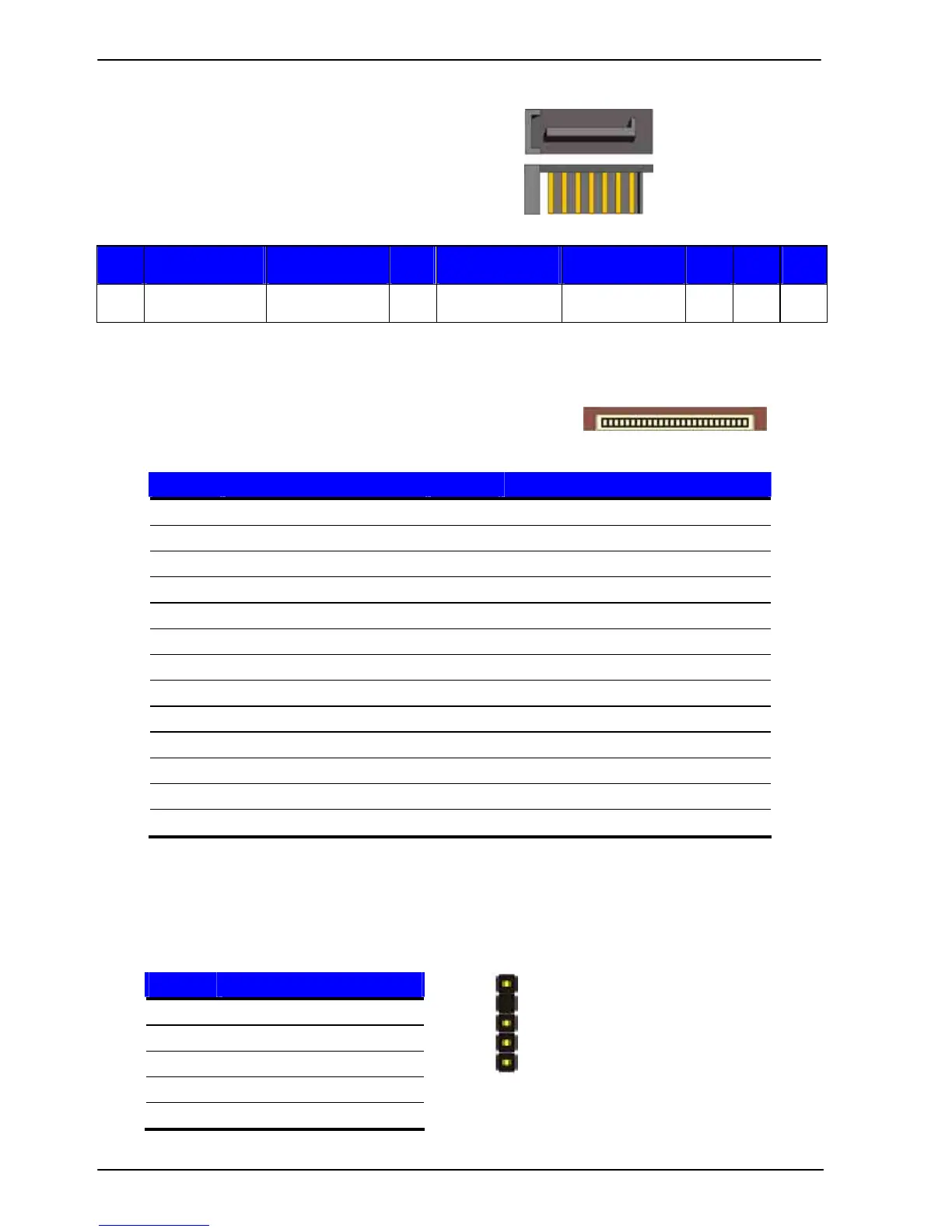

A.2 <Serial ATA Port>
Connector: SATA1/2
Type: 7-pin wafer connector
1 2 3 4 5 6 7 8 9
GND RSATA_TXP1 RSATA_TXN1 GND RSATA_RXN1 RSATA_RXP1 GND GND GND
A.3 <Floppy Port>
Connector: FDD
Type: 26-pin connector
Pin Description Pin Description
1 VCC 2 INDEX
3 VCC 4 DR0
5 VCC 6 DSKCHG
7 N/C 8 N/C
9 N/C 10 MTR0
11 DRVDE0 12 DIR
13 N/C 14 STEP
15 Ground 16 WRITE DATA
17 Ground 18 WRITE GATE
19 Ground 20 TRAK 0
21 N/C 22 WRPTO
23 Ground 24 RDATA-
25 Ground 26 HDSEL
A.4 <IrDA Port>
Connector: CN_IR
Type: 5-pin header for SIR Ports
Pin Description
1 VCC
2 N/C
3 IRRX
4 Ground
5 IRTX
1
5
JCSEL1 must
j
um
p
to
“
IrDA
”
