LV-679 User’s Manual
-
37-
2.14 <Switch and Indicator>

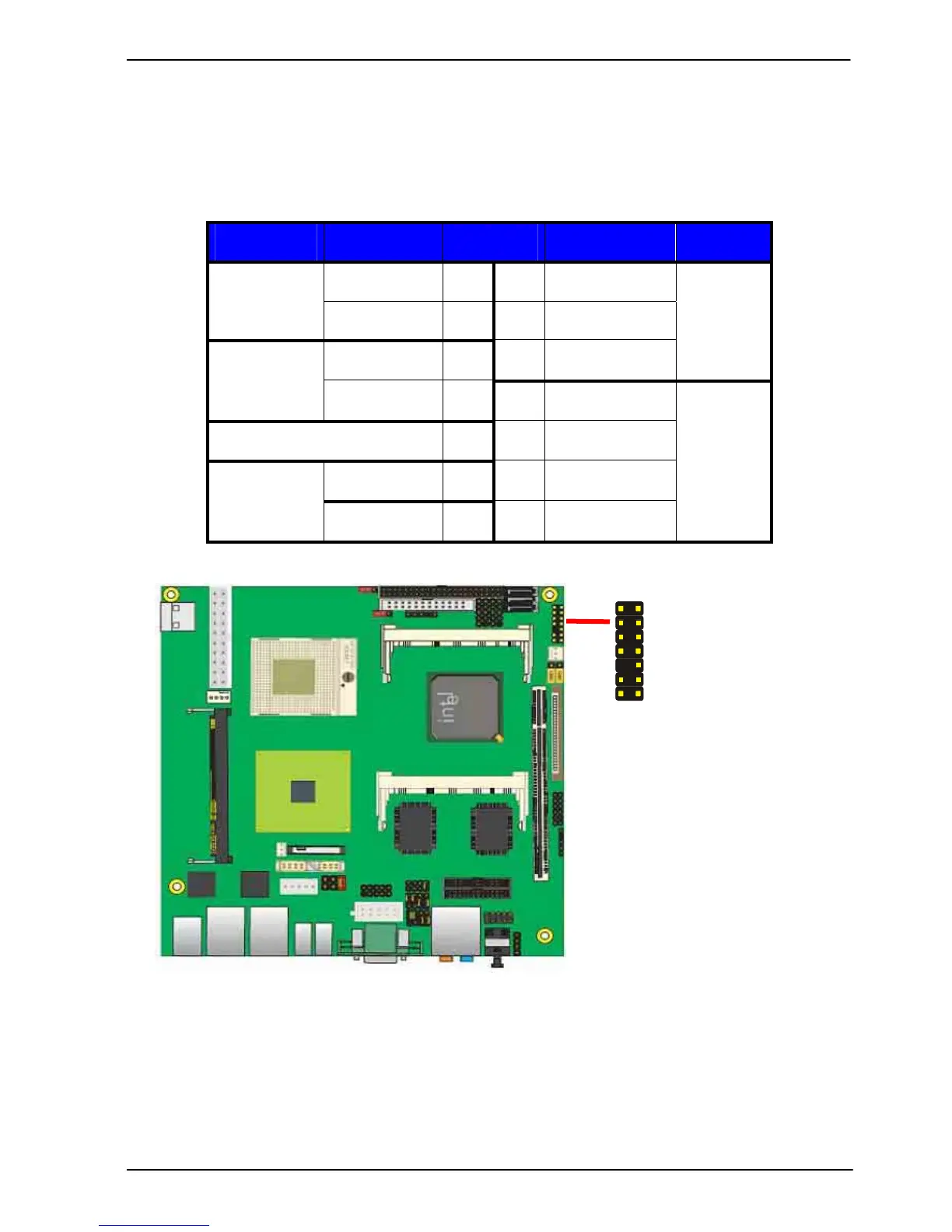

The JFRNT provides front control panel of the board, such as power button, reset and
beeper, etc. Please check well before you connecting the cables on the chassis.
Connector: JFRNT
Type: onboard 14-pin (2 x 7) 2.54-pitch header
Function Signal PIN Signal Function
HDLED+ 1 2 PWRLED+
IDE LED
HDLED- 3 4 N/C
Reset+ 5 6 PWRLED-
Power
LED
Reset
Reset- 7 8 SPK+
N/C 9 10 N/C
PWRBT- 11 12 N/C
Power
Button
PWRBT+ 13 14 SPK-
Speaker
1
14
JFRNT
2
13
