2.10.3 <HDTV Interface>
The board provides an HDTV interface with Intel GM(E) 965, supports Composite,
S-Video and Component with PAL and NTSC of TV system, and display (clone or
extended desktop) function with CRT,LVDS,DVI.
Connector: CN_HDTV
Connector type: 10-pin header HDTV connector (pitch = 2.54mm)
Pin Number Assignment Pin Number Assignment
1 GND 2 DACB1
3 DACB2 4 GND
5 GND 6 N/C
7 DACB3 8 GND
9 N/C 10 N/C

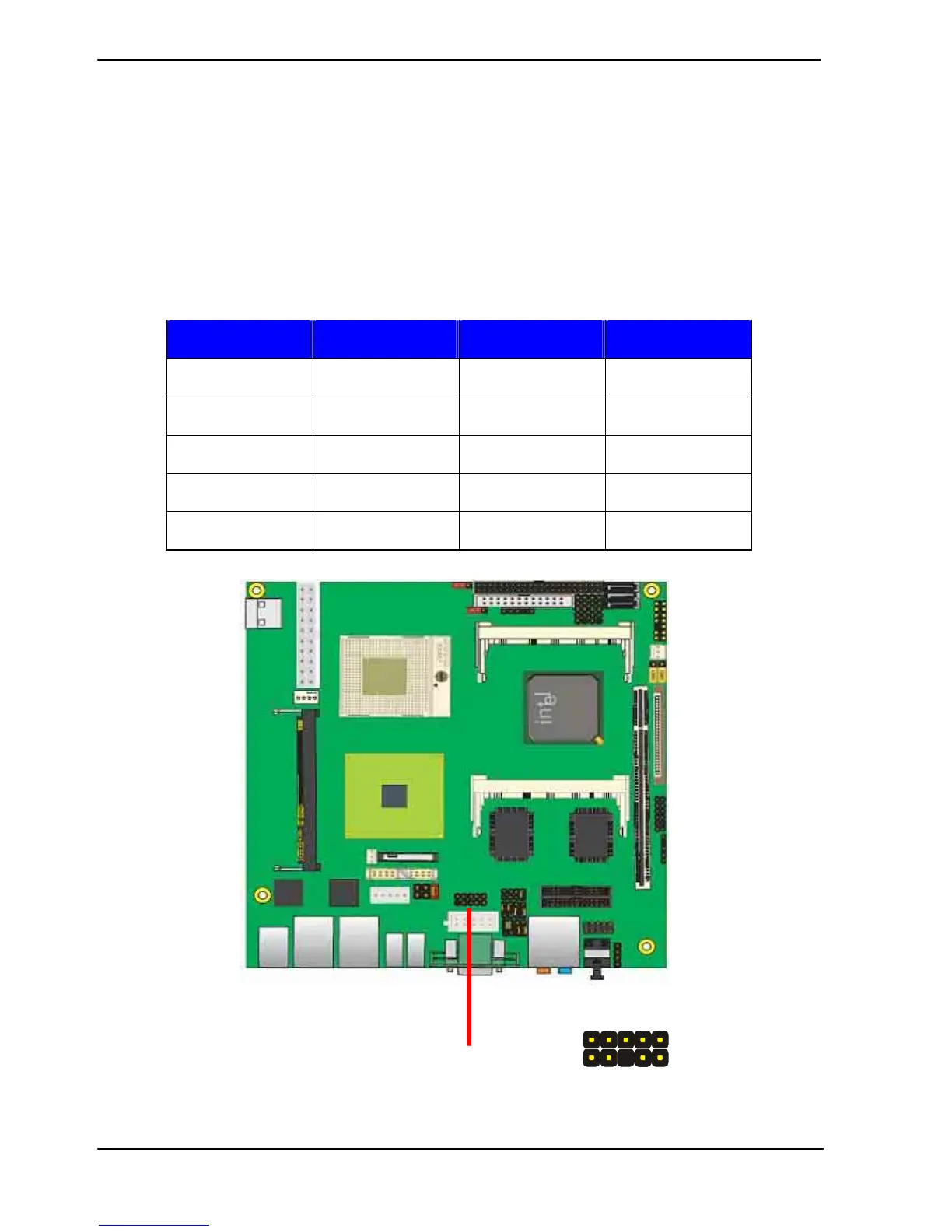

CN_HDTV
10
1
2
9
