Commell LV-679 - Atx Power Mode

LV-679 User’s Manual
-
35-

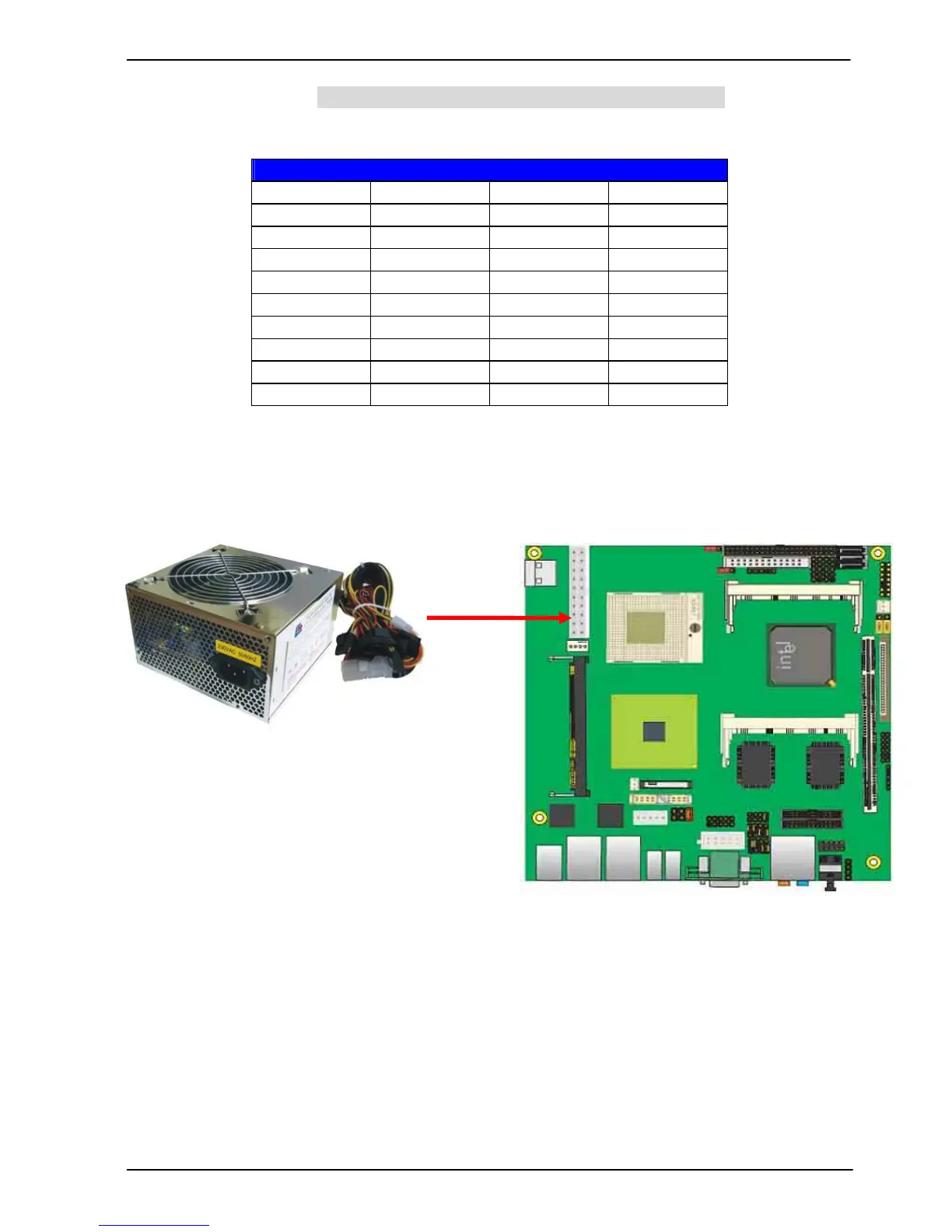

 ATX Power Mode
Connector: ATX (It also can become Output when DC-IN be used)
Type: 20-pin ATX power connector
PIN assignment
1 3.3V 11 3.3V
2 3.3V 12 -12V
3 GND 13 GND
4 5V 14 PS_ON
5 GND 15 GND
6 5V 16 GND
7 GND 17 GND
8 PW_OK 18 -5V
9 5V_SB 19 5V
10 12V 20 5V
