LV-679 User’s Manual
-
34-

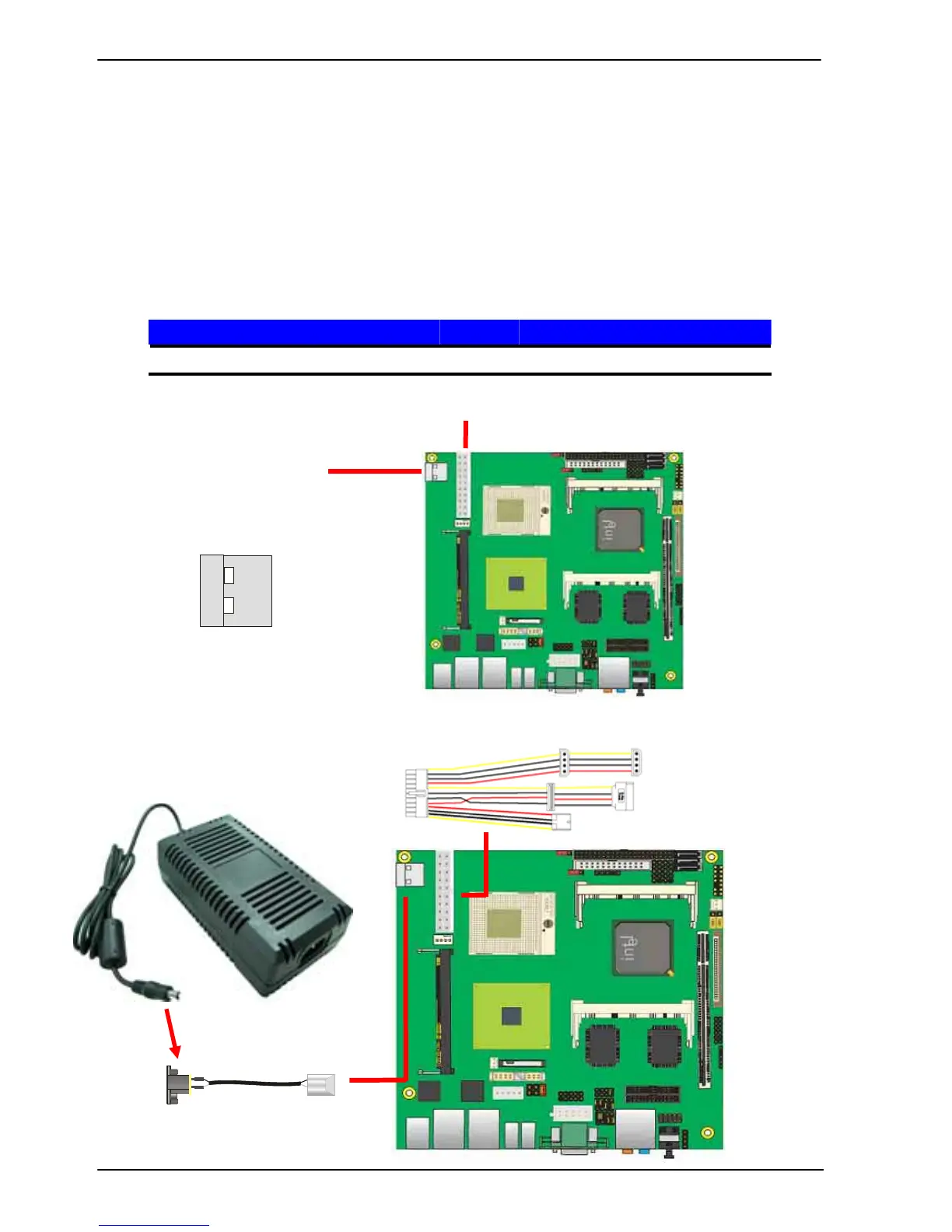

DC Input Mode
2.13 <Power Supply>
2.13.1 <Power Input>
The board requires DC 12V input with onboard 2-pin DC-input connector
the input voltage range is from 8V to 30V, or onboard 20-pin ATX2.0, for the input
current, please take a reference of the power consumption report on appendix.
Connector: DC_IN
Type: 4-pin DC power connector
Pin Description Pin Description
1 +12V 2 Ground
DC_IN
1
2
ATX
ATX power output cable
to powering device.
To Next Page
