2.13.2 <Power Output>

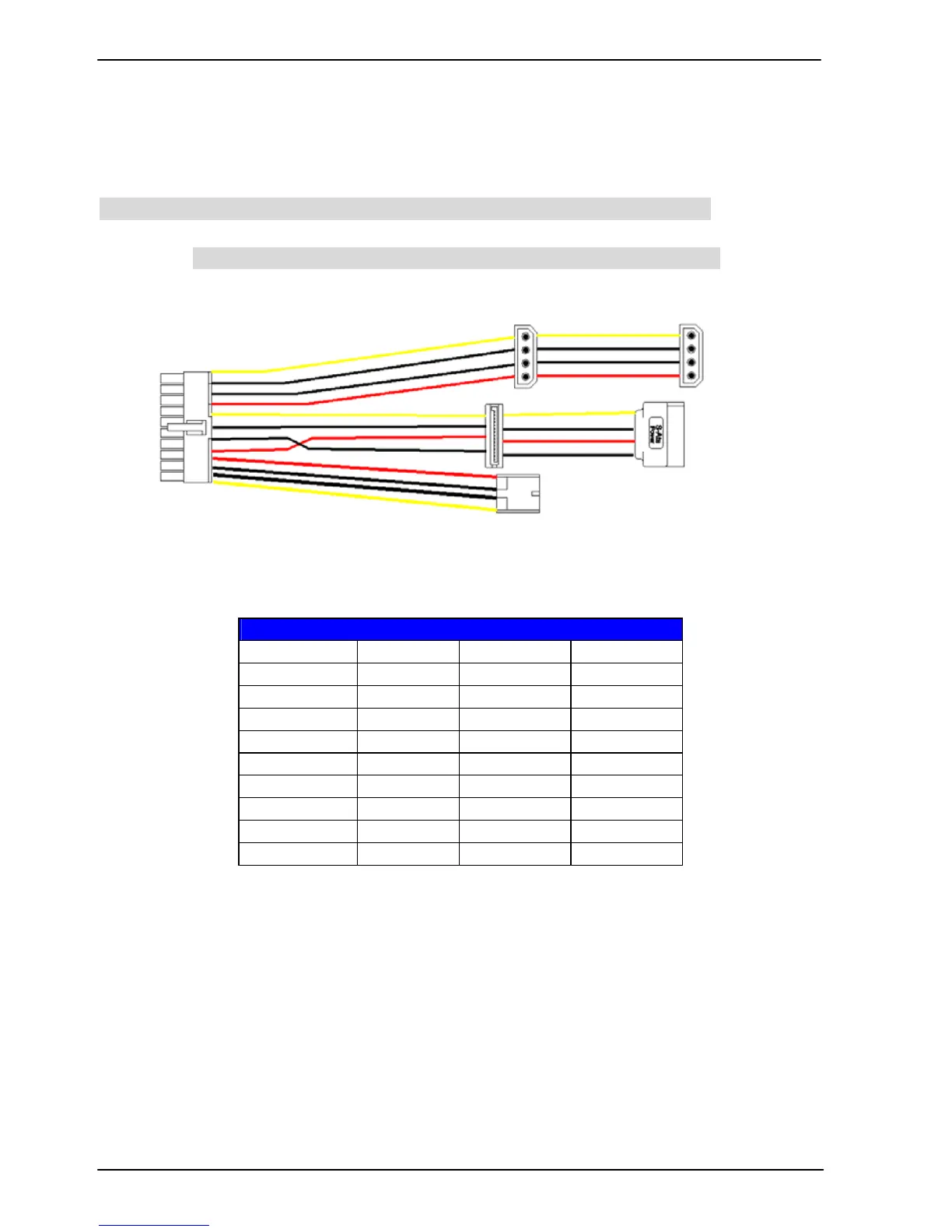

The board provides one 20-pin ATX connector for +5V/+12V output for powering your
HDD, CDROM or other devices when DC-input mode has been used.
Attention: When DC-IN had power supplied, the ATX become output !
Avoid DC-IN and ATX power supply input at the same time !
Connector: ATX Output (When DC-IN be used)
Type: 20-pin ATX connector for +5V/+12V
PIN assignment
1 * 13 *
2 * 14 *
3 * 15 *
4 5V 16 *
5 GND 17 *
6 * 18 GND
7 GND 19 GND
8 * 20 *
9 * 21 *
10 12V 22 5V
Note: Maximum output voltage: 12V/5A & 5V/3A
“ * ” Mean don’t connection
