Commend EE 8000 - Mounting the Modules; General Mounting with housings Rev. “BA”; General Mounting with housings min. Rev. “BB”

Installation Industrial Stations EE 8000
18 3.1/0614

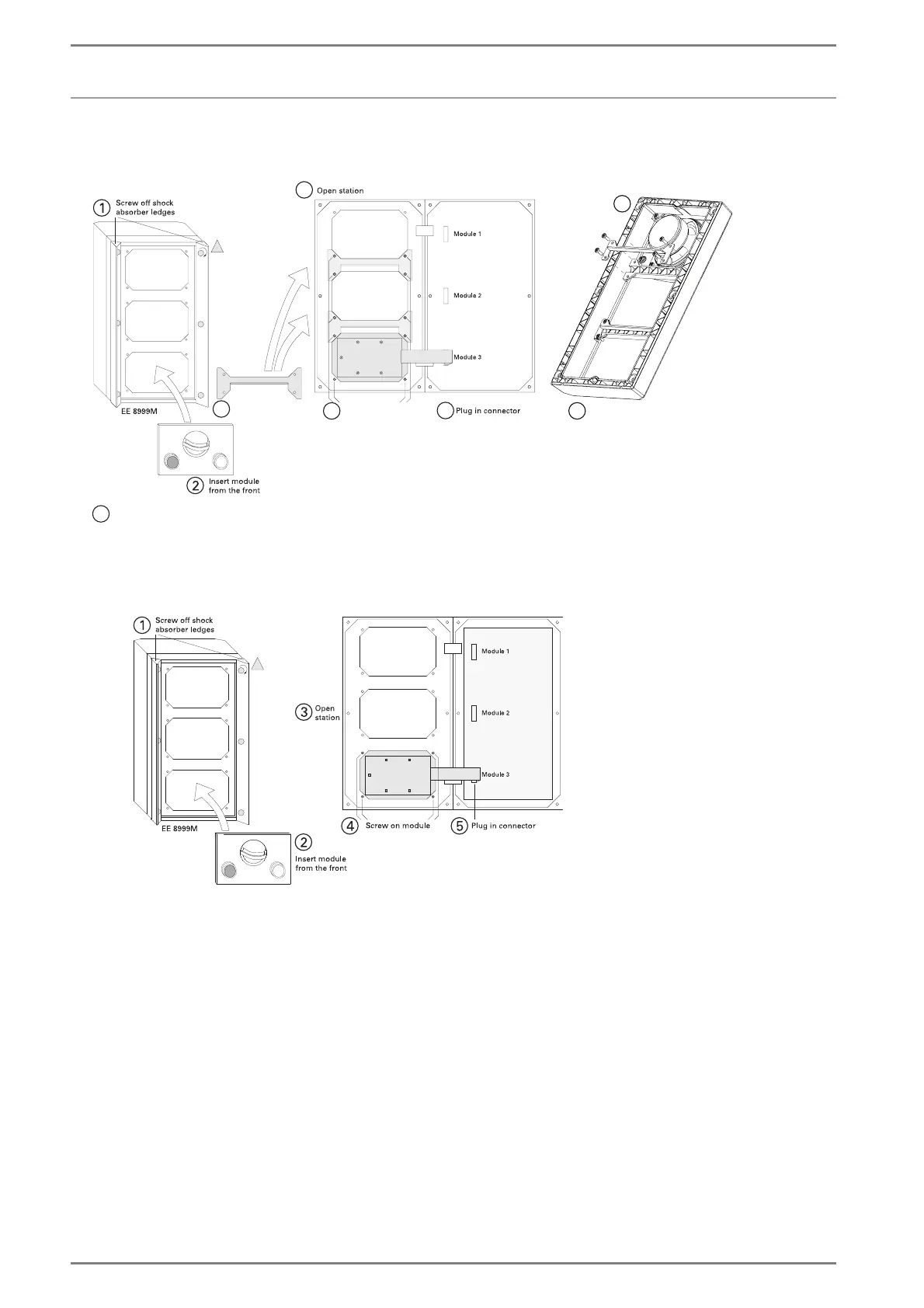

Mounting the Modules
General Mounting with housings Rev. “BA”
Attention: The maximum permissible tightening torque of the 6 cover screws is 1.5 Nm.
General Mounting with housings min. Rev. “BB”
4
4
5
6
4
!
!
3
max.
1.5 Nm
Insert sheet metal
bracket
Screw on sheet metal
brackets and modules
Both sheet metal brackets
have to be used
The sheet metal brackets have to be used for the housings (EE 8999M, EE8999M-SOS, EE 8999S and EDI 600) of Rev. “BA”
!
max.
1.5 Nm
