1541 CIRCUIT THEORY
^ A10
A n
4
^ Ai2
i»
s _ £ ! 5 _ _
12
81
rMO» - > l(tSt4-

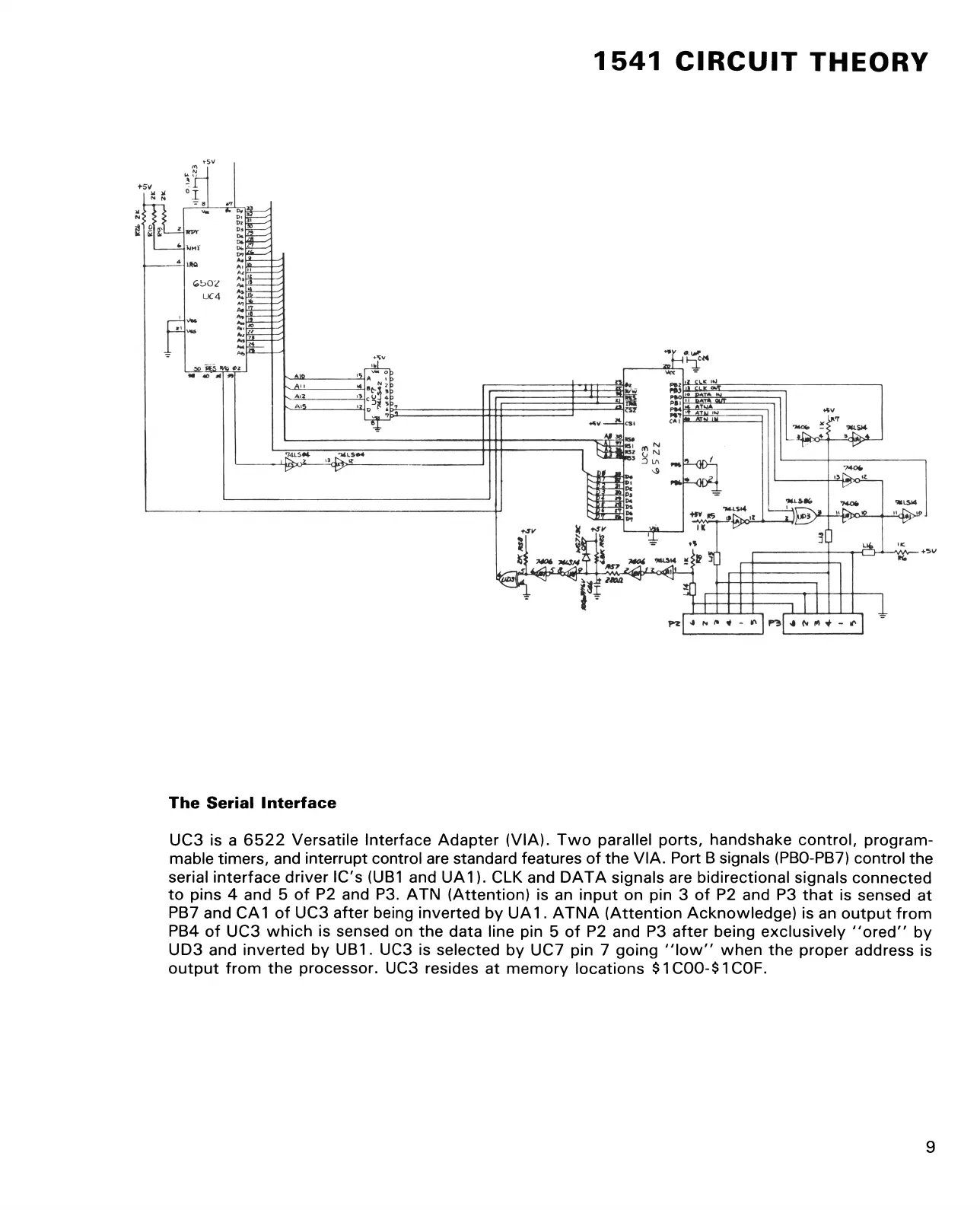

The Serial Interface
UC3 is a 6522 Versatile Interface Adapter (VIA). Two parallel ports, handshake control, program
mable timers, and interrupt control are standard features of the VIA. Port B signals (PB0-PB7) control the
serial interface driver IC's (UB1 and UA1). CLK and DATA signals are bidirectional signals connected
to pins 4 and 5 of P2 and P3. ATN (Attention) is an input on pin 3 of P2 and P3 that is sensed at
PB7 and CA1 of UC3 after being inverted by UA1. ATNA (Attention Acknowledge) is an output from
PB4 of UC3 which is sensed on the data line pin 5 of P2 and P3 after being exclusively "ored" by
UD3 and inverted by UB1. UC3 is selected by UC7 pin 7 going "low” when the proper address is
output from the processor. UC3 resides at memory locations $1C00-$1C0F.
9
