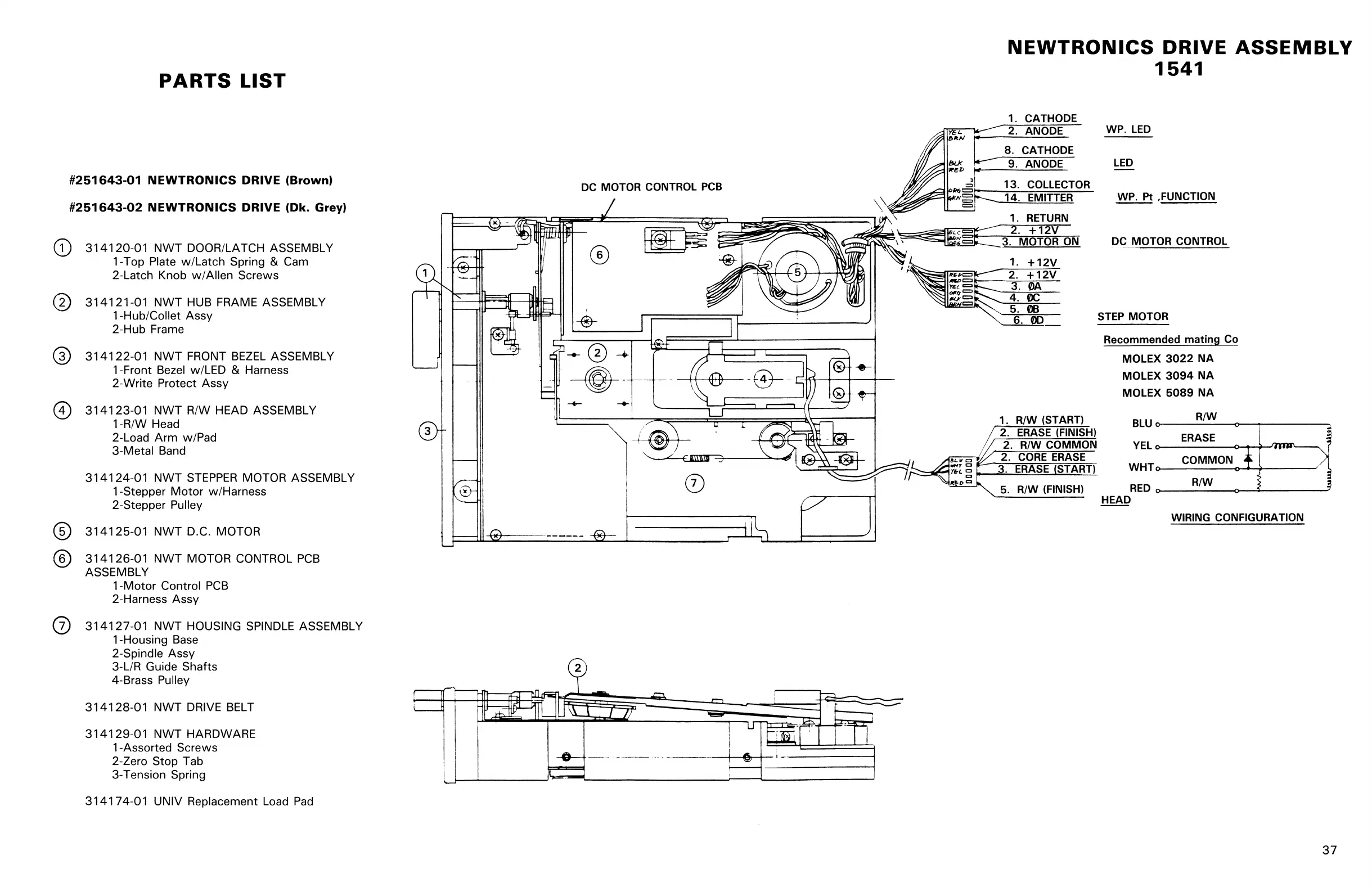

PARTS LIST
NEWTRONICS DRIVE ASSEMBLY
1541
#251643-01 NEWTRONICS DRIVE (Brown)
#251643-02 NEWTRONICS DRIVE (Dk. Grey)
© 314120-01 NWT DOOR/LATCH ASSEMBLY
1- Top Plate w/Latch Spring & Cam
2- Latch Knob w/Allen Screws
© 314121-01 NWT HUB FRAME ASSEMBLY
1- Hub/Collet Assy
2- Hub Frame
@ 314122-01 NWT FRONT BEZEL ASSEMBLY
1- Front Bezel w/LED & Harness
2- Write Protect Assy
@ 314123-01 NWT R/W HEAD ASSEMBLY
1- R/W Head
2- Load Arm w/Pad
3- Metal Band
314124-01 NWT STEPPER MOTOR ASSEMBLY
1- Stepper Motor w/Harness
2- Stepper Pulley
© 314125-01 NWT D.C. MOTOR
© 314126-01 NWT MOTOR CONTROL PCB
ASSEMBLY
1- Motor Control PCB
2- Harness Assy
© 314127-01 NWT HOUSING SPINDLE ASSEMBLY
1- Housing Base
2- Spindle Assy
3- L/R Guide Shafts
4- Brass Pulley
314128-01 NWT DRIVE BELT
314129-01 NWT HARDWARE
1- Assorted Screws
2- Zero Stop Tab
3- Tension Spring
314174-01 UNIV Replacement Load Pad
1. CATHODE
37
