Commodore Computers 1541 - Resistance Checks

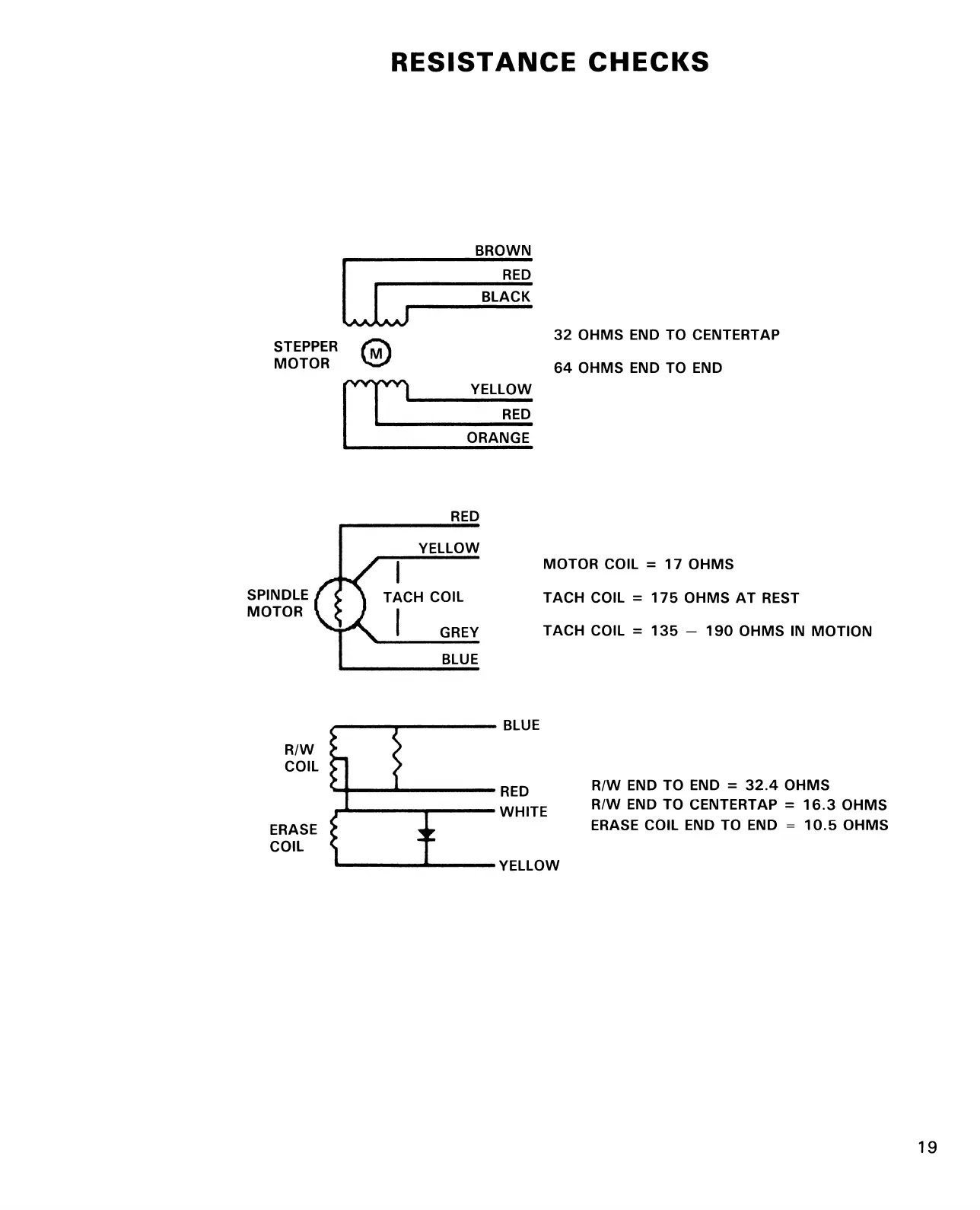

RESISTANCE CHECKS
BROWN
RED
BLACK
YELLOW
RED
ORANGE
32 OHMS END TO CENTERTAP
64 OHMS END TO END
SPINDLE
MOTOR
RED
MOTOR COIL = 17 OHMS
TACH COIL = 175 OHMS AT REST
TACH COIL = 135 - 190 OHMS IN MOTION
R/W
COIL
ERASE
COIL
BLUE
RED
WHITE
YELLOW
R/W END TO END = 32.4 OHMS
R/W END TO CENTERTAP = 16.3 OHMS
ERASE COIL END TO END = 10.5 OHMS
19
