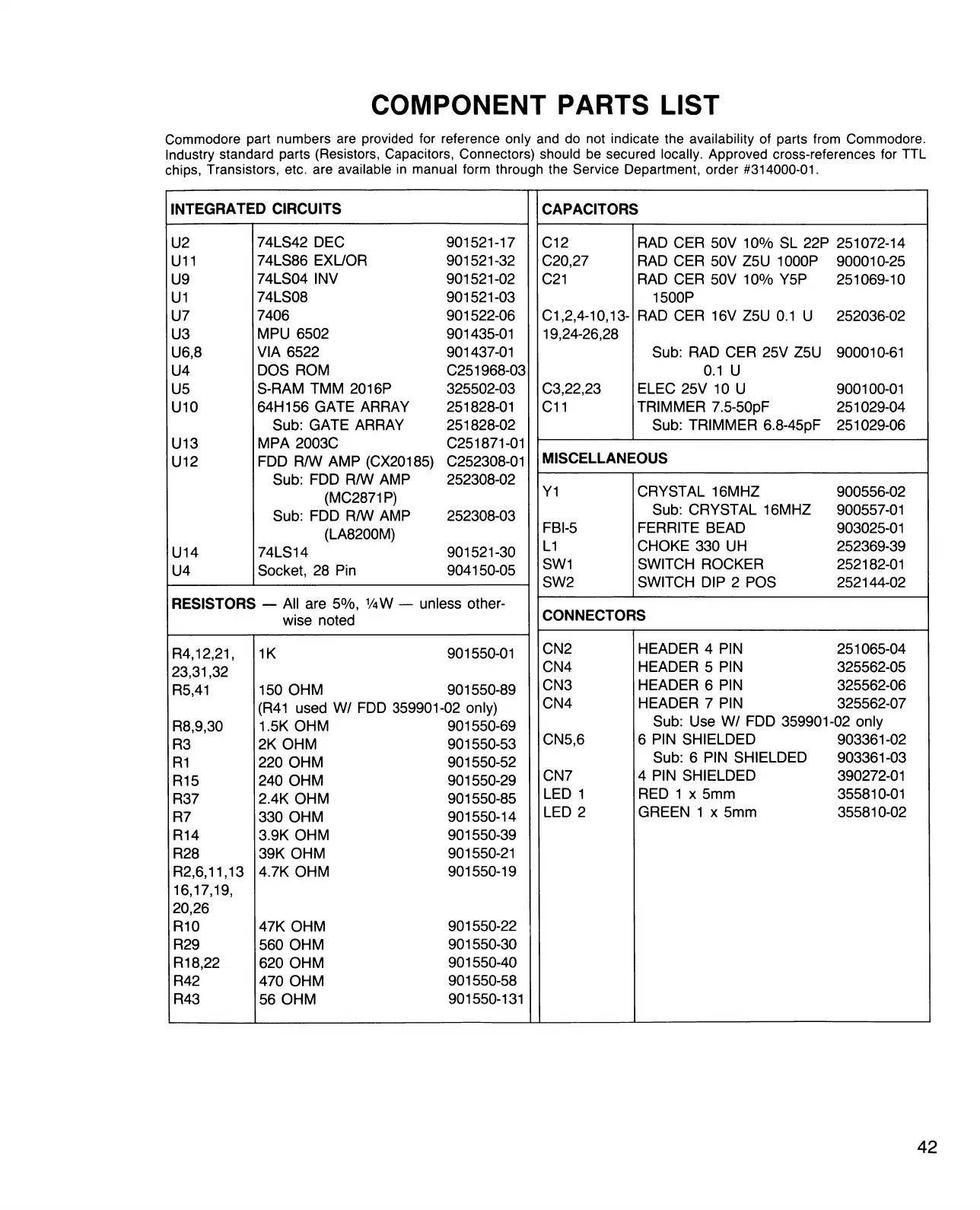

COMPONENT PARTS LIST
Commodore part numbers are provided for reference only and do not indicate the availability of parts from Commodore.
Industry standard parts (Resistors, Capacitors, Connectors) should be secured locally. Approved cross-references for TTL
chips, Transistors, etc. are available in manual form through the Service Department, order #314000-01.
INTEGRATED CIRCUITS
U2 74LS42 DEC 901521-17
U11
74LS86 EXL/OR 901521-32
U9
74LS04 INV
901521-02
U1
74LS08
901521-03
U7 7406 901522-06
U3
MPU 6502 901435-01
U6,8 VIA 6522 901437-01
U4
DOS ROM C251968-03
U5
S-RAM TMM 2016P 325502-03
U10 64H156 GATE ARRAY 251828-01
Sub: GATE ARRAY 251828-02
U13
MPA 2003C
C251871-01
U12 FDD R/W AMP (CX20185) C252308-01
Sub: FDD R/W AMP
252308-02
(MC2871P)
Sub: FDD R/W AMP
252308-03
(LA8200M)
U14 74LS14 901521-30
U4 Socket, 28 Pin
904150-05
RESISTORS — All are 5%, 1/4W — unless other-
wise noted
R4,12,21, 1K 901550-01
23,31,32
R5,41
150 OHM
901550-89
(R41 used W/ FDD 359901-02 only)
R8,9,30
1.5K OHM 901550-69
R3
2K OHM 901550-53
R1 220 OHM
901550-52
R15
240 OHM 901550-29
R37
2.4K OHM
901550-85
R7
330 OHM
901550-14
R14 3.9K OHM 901550-39
R28
39K OHM
901550-21
R2,6,11,13
4.7K OHM
901550-19
16,17,19,
20,26
R10 47K OHM
901550-22
R29
560 OHM
901550-30
R 18,22
620 OHM
901550-40
R42
470 OHM
901550-58
R43
56 OHM
901550-131
CAPACITORS
C12
RAD CER 50V 10% SL 22P 251072-14
C20,27
RAD CER 50V Z5U 1000P 900010-25
C21
RAD CER 50V 10% Y5P 251069-10
1500P
C1,2,4-10,13- RAD CER 16V Z5U 0.1 U
252036-02
19,24-26,28
Sub: RAD CER 25V Z5U 900010-61
0.1 U
C3,22,23
ELEC 25V 10 U 900100-01
C11 TRIMMER 7.5-50pF 251029-04
Sub: TRIMMER 6.8-45pF 251029-06
MISCELLANEOUS
Y1
CRYSTAL 16MHZ 900556-02
Sub: CRYSTAL 16MHZ
900557-01
FBI-5
FERRITE BEAD
903025-01
L1
CHOKE 330 UH
252369-39
SW1 SWITCH ROCKER
252182-01
SW2
SWITCH DIP 2 POS 252144-02
CONNECTORS
CN2 HEADER 4 PIN 251065-04
CN4 HEADER 5 PIN
325562-05
CN3
HEADER 6 PIN
325562-06
CN4 HEADER 7 PIN 325562-07
Sub: Use W/ FDD 359901-02 only
CN5,6 6 PIN SHIELDED 903361-02
Sub: 6 PIN SHIELDED
903361-03
CN7 4 PIN SHIELDED
390272-01
LED 1 RED 1 x 5mm 355810-01
LED 2 GREEN 1 x 5mm 355810-02
42
