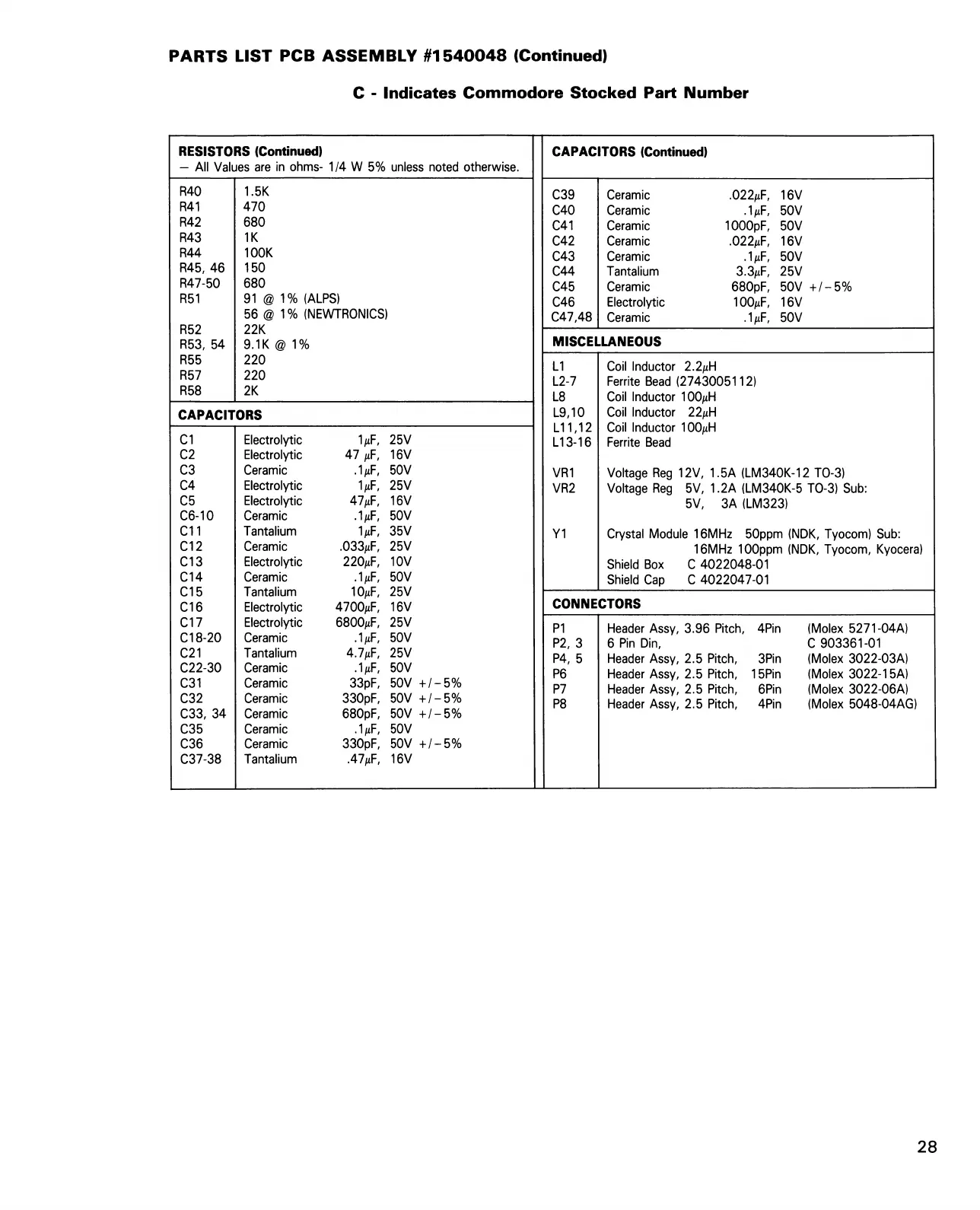

PARTS LIST PCB ASSEMBLY #1540048 (Continued)
C - Indicates Commodore Stocked Part Number
RESISTORS (Continued)
— All Values are in ohms- 1/4 W 5% unless noted otherwise.
R40 1.5K
R41
470
R42 680
R43
1K
R44 100K
R45, 46 150
R47-50 680
R51
91 @ 1% (ALPS)
56 @ 1 % (NEWTRONICS)
R52
22K
R53, 54
9.1K @ 1%
R55 220
R57 220
R58 2K
CAPACITORS
C1 Electrolytic
VF,
25 V
C2
Electrolytic
47 ft, 16V
C3 Ceramic
Aft,
50V
C4
Electrolytic
^ft,
25 V
C5
Electrolytic
47 ft, 16V
C6-10 Ceramic
Aft,
50V
C11
Tantalium VF,
35V
C12 Ceramic .033ft,
25 V
C13 Electrolytic
220ft,
10V
C14
Ceramic Aft,
50V
C15
Tantalium }0ft, 25 V
C16
Electrolytic 4700ft,
16V
C17
Electrolytic
6800^F,
25V
C18-20 Ceramic
• VF, 50V
C21
Tantalium
4.7 ft,
25 V
C22-30 Ceramic
Aft,
50V
C31
Ceramic
33pF,
50V
+ /-5%
C32
Ceramic
330pF,
50V
+ /- 5%
C33, 34
Ceramic
680pF, 50V
+ /- 5%
C35 Ceramic
Aft,
50V
C36
Ceramic
330pF, 50V
+ /-5%
C37-38
Tantalium A lft,
16V
CAPACITORS (Continued)
C39
Ceramic .022ft, 16V
C40
Ceramic
Aft,
50V
C41 Ceramic 10OOpF, 50V
C42
Ceramic .022ft, 16V
C43 Ceramic
Aft,
50V
C44 Tantalium
3.3ft,
25V
C45 Ceramic 680pF, 50V + /- 5%
C46
Electrolytic
100ft,
16V
C47,48
Ceramic
Aft,
50V
MISCELLANEOUS
L1 Coil Inductor
2.2ft\
L2-7
Ferrite Bead (2743005112)
L8
Coil Inductor d\00ft\
L9,10
Coil Inductor 22ft\
L11,12
Coil Inductor *\00ft\
L13-16 Ferrite Bead
VR1 Voltage Reg 12V, 1.5A (LM340K-12 TO-3)
VR2
Voltage Reg 5V, 1.2A (LM340K-5 TO-3) Sub:
5V, 3A (LM323)
Y1
Crystal Module 16MHz 50ppm (NDK, Tyocom) Sub:
16MHz 100ppm (NDK, Tyocom, Kyocera)
Shield Box C 4022048-01
Shield Cap C 4022047-01
CONNECTORS
P1 Header Assy, 3.96 Pitch, 4Pin (Molex 5271-04A)
P2, 3
6 Pin Din, C 903361-01
P4, 5 Header Assy, 2.5 Pitch, 3Pin (Molex 3022-03A)
P6
Header Assy, 2.5 Pitch, 15Pin (Molex 3022-15A)
P7
Header Assy, 2.5 Pitch, 6Pin (Molex 3022-06A)
P8 Header Assy, 2.5 Pitch, 4Pin (Molex 5048-04AG)
28
