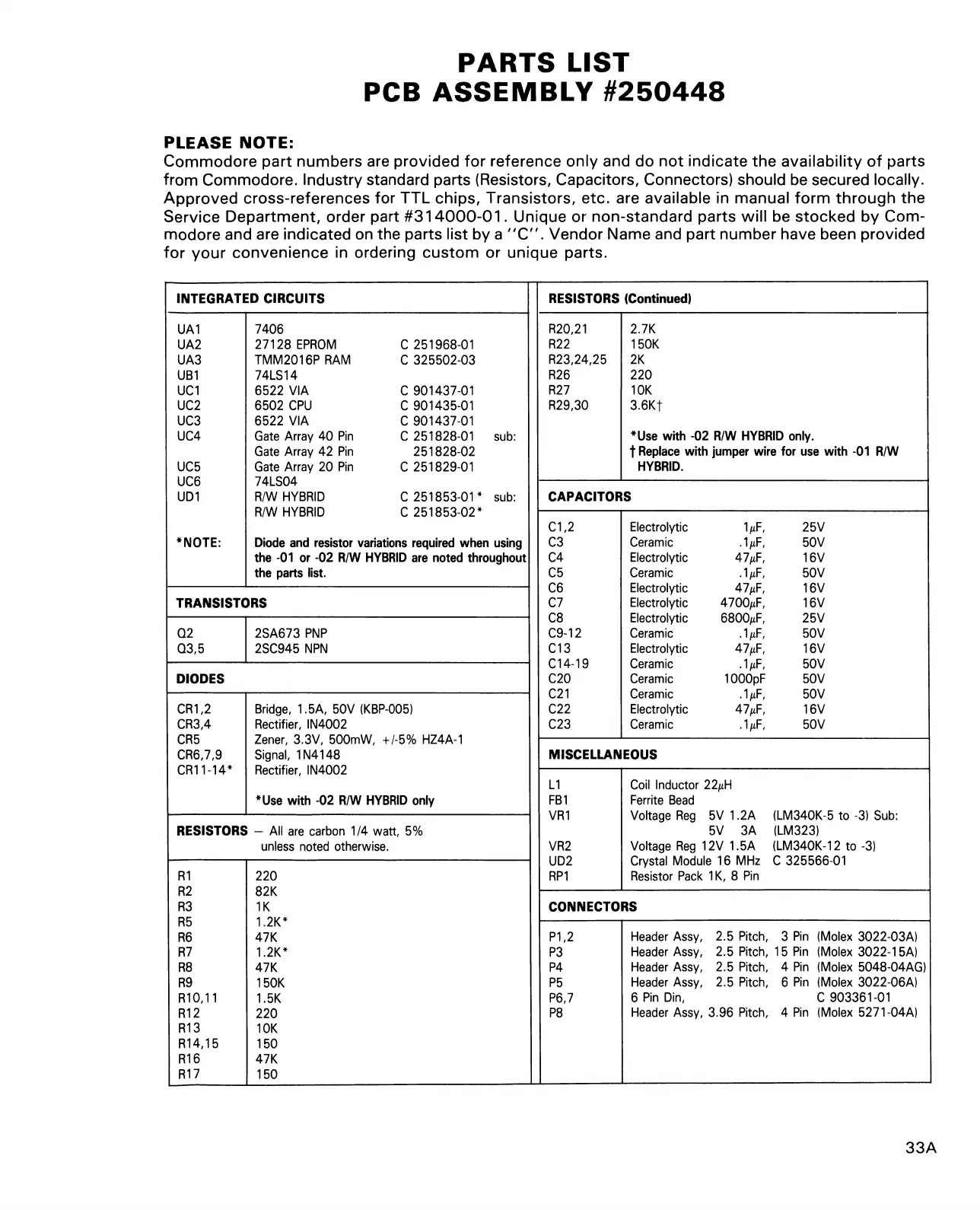

PCB ASSEMBLY #250448
PLEASE NOTE:
Commodore part numbers are provided for reference only and do not indicate the availability of parts
from Commodore. Industry standard parts (Resistors, Capacitors, Connectors) should be secured locally.
Approved cross-references for TTL chips, Transistors, etc. are available in manual form through the
Service Department, order part #314000-01. Unique or non-standard parts will be stocked by Com
modore and are indicated on the parts list by a "C” . Vendor Name and part number have been provided
for your convenience in ordering custom or unique parts.
INTEGRATED CIRCUITS
UA1 7406
UA2
27128 EPROM C 251968-01
UA3 TMM2016P RAM C 325502-03
UB1 74LS14
UC1 6522 VIA C 901437-01
UC2 6502 CPU C 901435-01
UC3 6522 VIA C 901437-01
UC4
Gate Array 40 Pin C 251828-01 sub:
Gate Array 42 Pin 251828-02
UC5 Gate Array 20 Pin C 251829-01
UC6
74LS04
UD1
R/W HYBRID C 251853-01 * sub:
R/W HYBRID C 251853-02*
*N0TE:
Diode and resistor variations required when using
the -01 or -02 R/W HYBRID are noted throughout
the parts list.
TRANSISTORS
Q2
2SA673 PNP
Q3,5 2SC945 NPN
DIODES
CR1,2 Bridge, 1.5A, 50V (KBP-005)
CR3,4 Rectifier, IN4002
CR5 Zener, 3.3V, 500mW, + /-5% HZ4A-1
CR6,7,9 Signal, 1N4148
CR11-14*
Rectifier, IN4002
*Use with -02 R/W HYBRID only
RESISTORS - All are carbon 1/4 watt, 5%
unless noted otherwise.
R1 220
R2
82K
R3 1K
R5 1.2K*
R6 47K
R7
1.2K*
R8 47K
R9
150K
R10,11
1.5K
R12
220
R13
10K
R14,15
150
R16 47K
R17
150
RESISTORS (Continued)
R20,21 2.7K
R22
150K
R23,24,25 2K
R26 220
R27 10K
R29,30
3.6Kf
*Use with -02 R/W HYBRID only.
t Replace with jumper wire for use with -01 R/W
HYBRID.
CAPACITORS
C1,2
Electrolytic
VF,
25V
C3 Ceramic ■ VF, 50V
C4
Electrolytic
47/iF,
16V
C5
Ceramic • VF, 50V
C6 Electrolytic 47/iF, 16V
C7
Electrolytic 4700/iF, 16V
C8
Electrolytic
6800/iF, 25V
C9-12 Ceramic • VF, 50V
C13 Electrolytic 47/zF, 16V
C14-19 Ceramic
. V F,
50V
C20
Ceramic 1OOOpF 50V
C21
Ceramic • VF, 50V
C22
Electrolytic 47/xF, 16V
C23 Ceramic
.1/xF,
50V
MISCELLANEOUS
L1 Coil Inductor 22/xH
FB1
Ferrite Bead
VR1
Voltage Reg
5V 1.2A
(LM340K-5 to -3) Sub:
5V 3A
(LM323)
VR2
Voltage Reg 12V 1.5A (LM340K-12 to -3)
UD2 Crystal Module 16 MHz
C 325566-01
RP1
Resistor Pack 1K, 8 Pin
CONNECTORS
P1,2
Header Assy, 2.5 Pitch, 3 Pin (Molex 3022-03A)
P3
Header Assy, 2.5 Pitch, 15 Pin (Molex 3022-15A)
P4
Header Assy, 2.5 Pitch, 4 Pin (Molex 5048-04AG)
P5
Header Assy, 2.5 Pitch, 6 Pin (Molex 3022-06A)
P6,7
6 Pin Din, C 903361-01
P8
Header Assy, 3.96 Pitch, 4 Pin (Molex 5271-04A)
33A
