Commodore 1084S - Technical Specifications

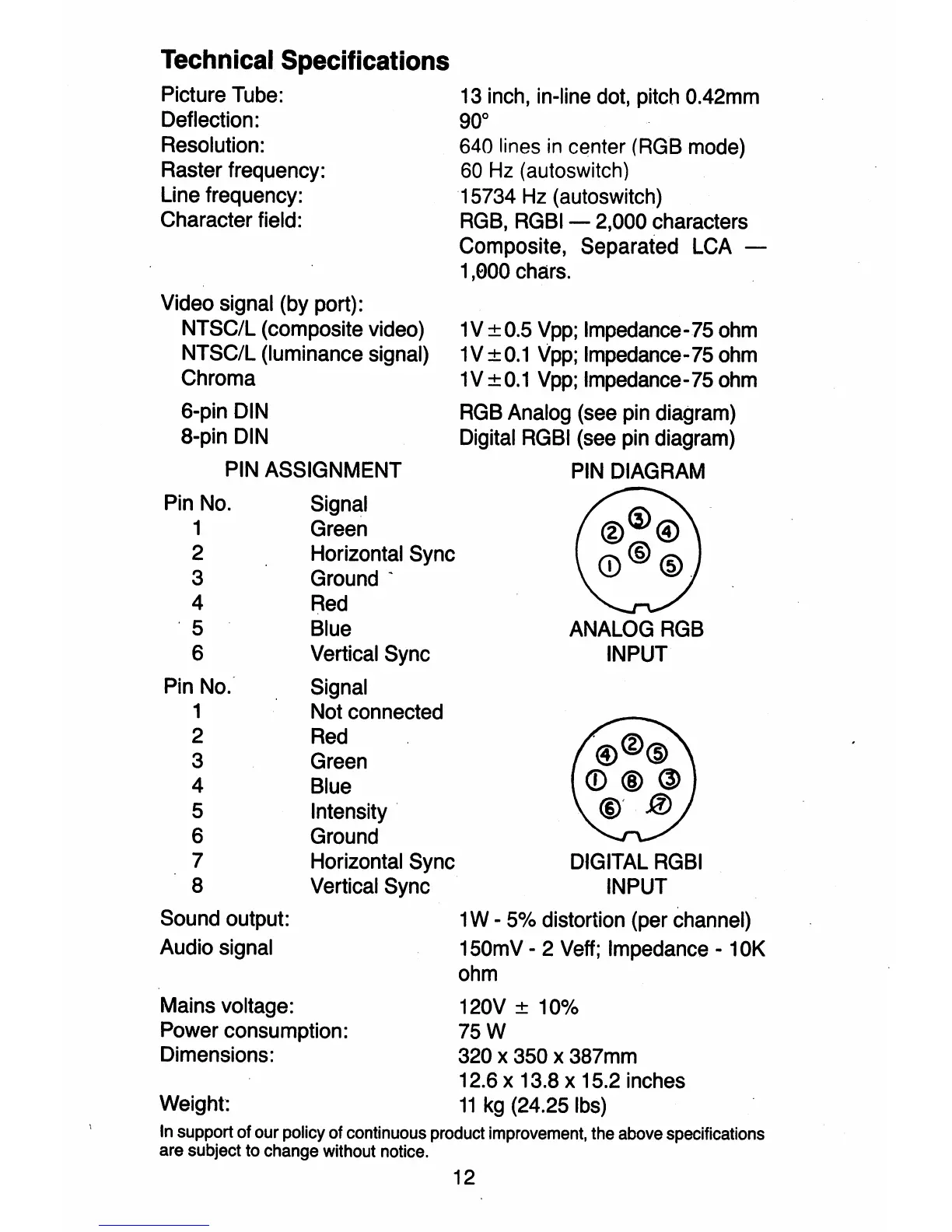

Technical Specifications
Picture Tube:
Deflection:
Resolution:
Raster frequency:
Line frequency:
Character field:
Video signal (by port):
NTSC/L (composite video)
NTSC/L (luminance signal)
Chroma
6-pin
DIN
8-pin DIN
PIN ASSIGNMENT
Pin No.
1
2
3
4
'5
6
Pin No.
1
2
3
4
5
6
7
8
Sound output:
Audio signal
Mains voltage:
Signal
Green
Horizontal Sync
Ground'
Red
Blue
Vertical Sync
Signal
Not connected
Red
Green
Blue
Intensity
Ground
Horizontal Sync
Vertical Sync
Power consumption:
Dimensions:
Weight:
13 inch, in-line dot, pitch 0.42mm
90°
640 lines in center (RGB mode)
60 Hz (autoswitch)
15734 Hz (autoswitch)
RGB, RGBI - 2,000 characters
Composite, Separated
LCA -
1
,eoo chars.
1 V
± 0.5 Vpp; Impedance-75 ohm
1 V ± 0.1 Vpp; Impedance- 75 ohm
1 V ± 0.1 Vpp; Impedance-75 ohm
RGB Analog (see pin diagram)
Digital
RGBI (see pin diagram)
PIN DIAGRAM
ANALOG RGB
INPUT
DIGITAL RGBI
INPUT
1 W - 5% distortion (per channel)
150mV - 2 Veff; Impedance - 10K
ohm
120V ± 10%
75W
320 x 350 x 387mm
12.6 x 13.8 x 15.2 inches
11 kg (24.25 Ibs)
