4.
Connect
the
power
cord.
Check
the
ON/OFF
switch
on
the
back
of
the drive
(see
Figure
2)
and
make
sure
it's
OFF.
Connect
the
power
supply
where
indicated
in
Figure
2.
Plug
the
other
end
into
an
electrical
outlet.
Don't
turn
the
power
on
yet.

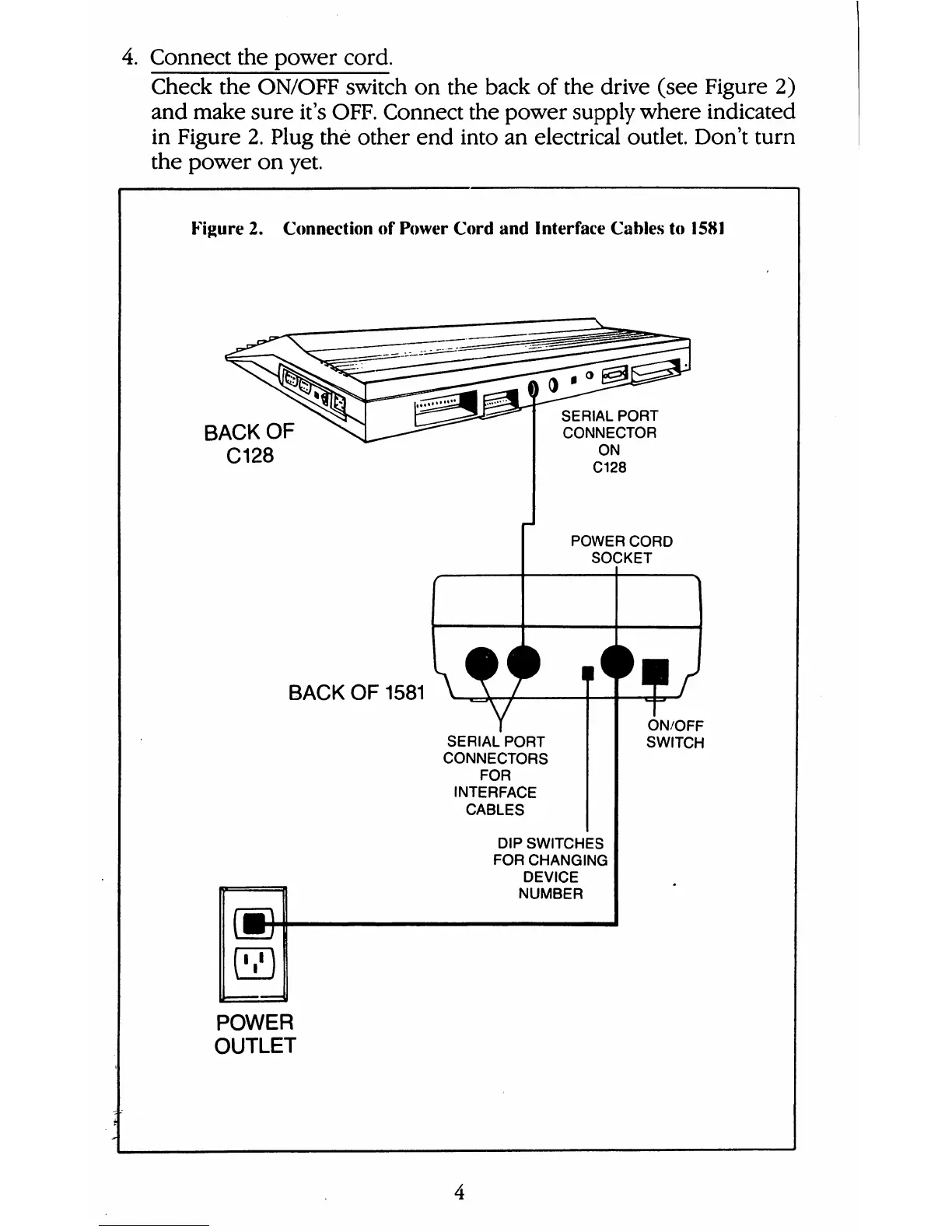

Figure
2.
Connection
of
Power
Cord
and
Interface
Cables
to
1581
BACK
OF
C128
SERIAL
PORT
CONNECTOR
ON
C128
POWER
CORD
SOCKET
BACK
OF
1581
SERIAL
PORT
CONNECTORS
FOR
INTERFACE
CABLES
DIP
SWITCHES
FOR
CHANGING
DEVICE
NUMBER
ON/OFF
SWITCH
POWER
OUTLET
