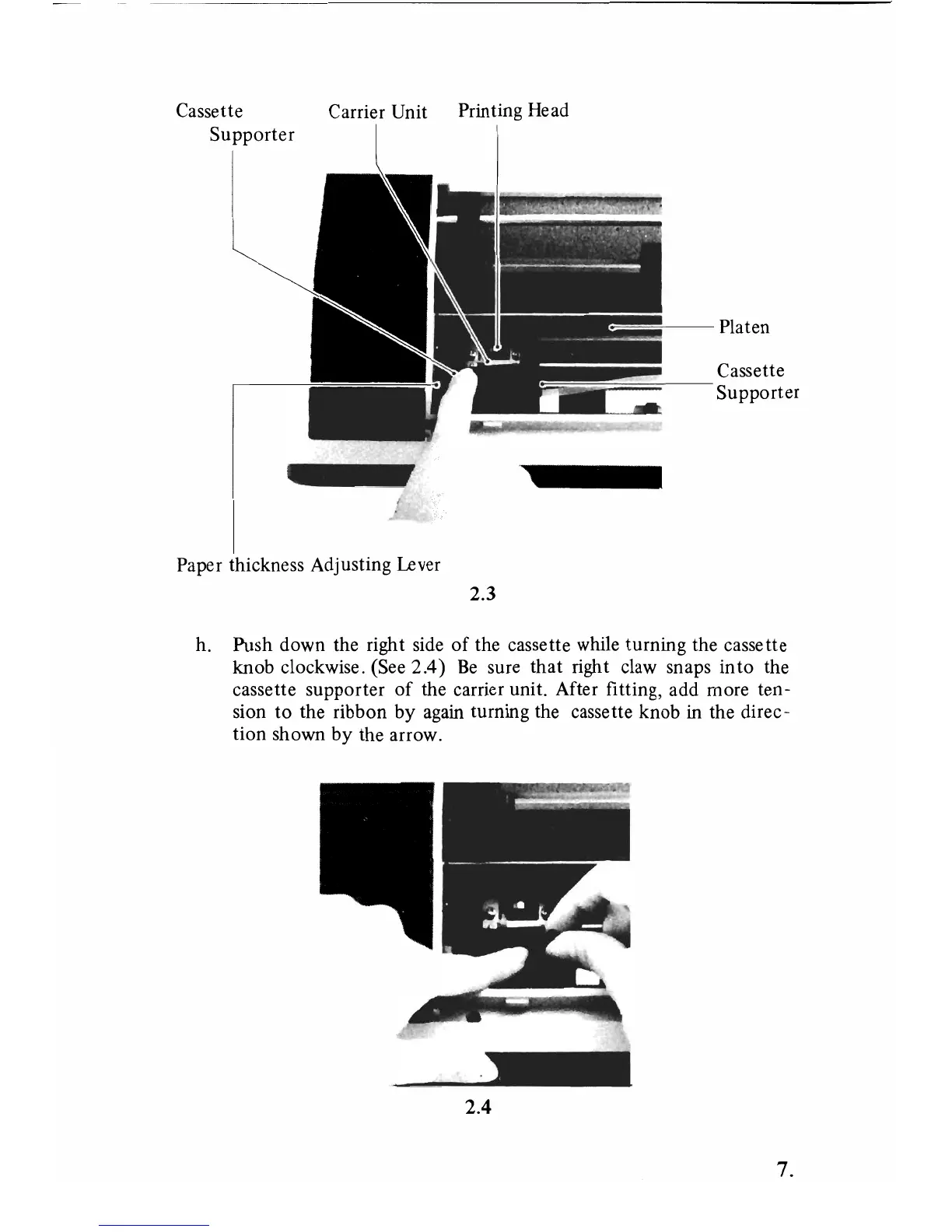

Cassette
Supporter
Carrier Unit Printing Head
Platen
iii!iii!i!!!~~
--
Cassette
Supporter
Paper thickness Adjusting Lever
2.3
h. Push down the right side
of
the cassette while turning the cassette
knob clockwise. (See 2.4)
Be
sure that right claw snaps
into
the
cassette supporter
of
the carrier unit. After fitting, add more ten-
sion to the ribbon by again turning the cassette knob in the direc-
tion shown by the arrow.
2.4
7.
