11232-D
TIE DOWN CABLE
ON OPPOSITE
SIDE FROM ENTRY
TIE DOWN CABLE
ON OPPOSITE
SIDE FROM ENTRY
PREFERRED
TO USE PANEL AS SHIPPED
WITH PIGTAILS LOADED, ROUTE
CABLE IN FROM REAR LEFT
AND ROUTE CLOCKWISE
TO BRING CABLE IN FROM
RIGHT REAR, ROUTE CABLE
COUNTER-CLOCKWISE.
ALSO, REMOVE AND REROUTE
PIGTAILS COUNTER-CLOCKWISE
IFC OR OSP
CABLE
A
B DC
A
B
D
C
SHEATH
18.0 IN.
(20.32 CM)
TWO FULL
LOOPS
36.0 IN.
(91.4 CM)
SUB-UNITS
FIBERS
ADCP-90-545 • Issue 4 • July 2016
Page 13
© 2016 CommScope. All Rights Reserved.

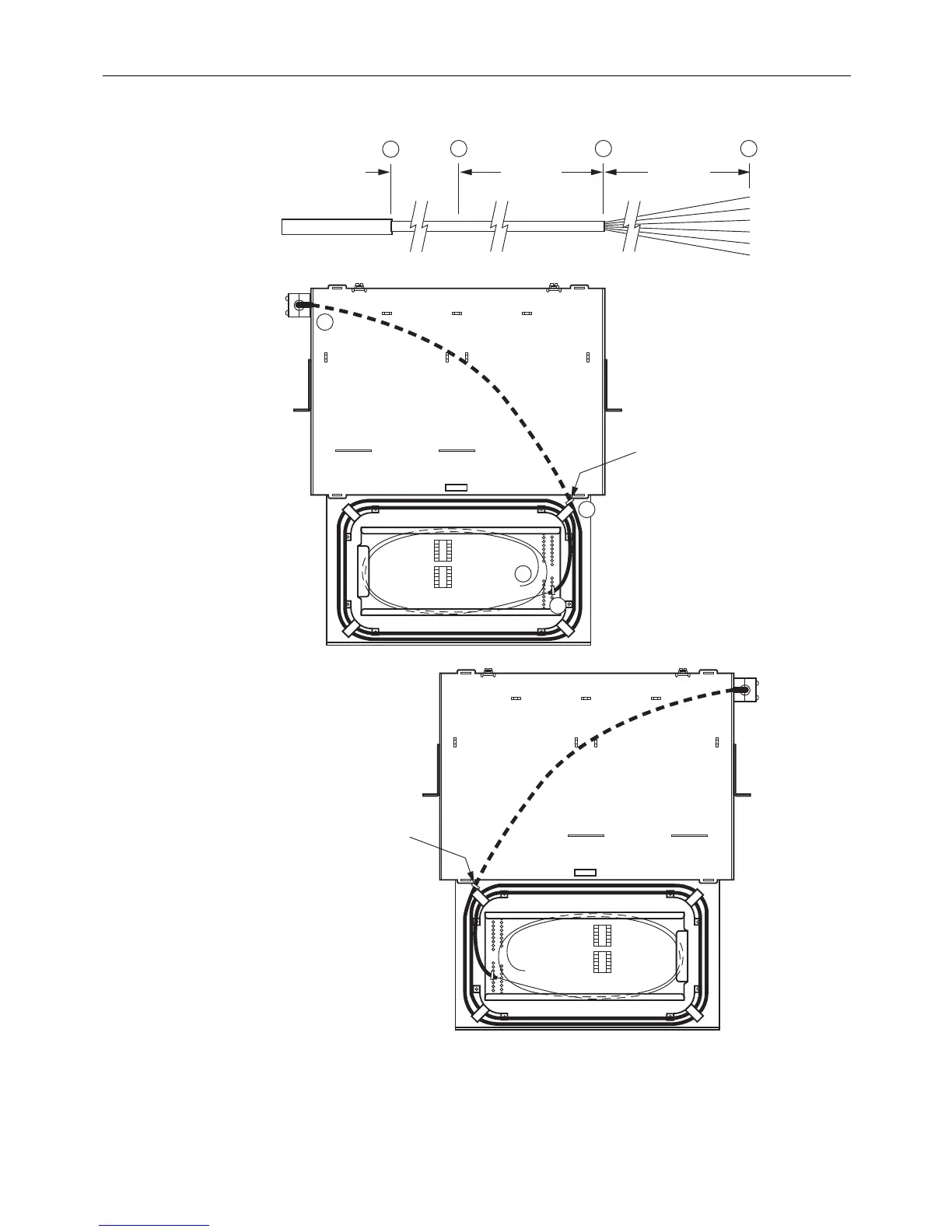

Figure 9. Fiber Routing in 24-Fiber Termination/Splicing Panel
