2.1.2 19-Inch Rack, Flush; 23-Inch Rack, 5-Inch Recess; 23-Inch Rack, Flush
For these positions, the mounting brackets must be removed and remounted
in a different
orientation. Use the following procedure.
1. Remove the mounting brackets.
2. Remount the mounting brackets
in the position shown:
a. For 19-inch rack, flush mount, use Figure 1 forward position;
b. For 23-inch rack, 5-inch
recess mount, use Figure 2 back position;
c. For 23-inch rack, flush mount, use Figure 2 forward position.
3. Attach the mounting brackets to the rack
using the #12-24 screws supplied.
11248-C
DANGER
INVISIBLE LASER RADIATION
AVOID DIRECT EXPOSURE TO BEAM
CAT #
S/N
DATE
CODE
MADE
IN USA
‚
MOUNTING
BRACKET
POSITIONED
FOR 5-INCH
RECESS
MOVE MOUNTING
BRACKETS TO THIS
POSITION FOR
FLUSH MOUNT

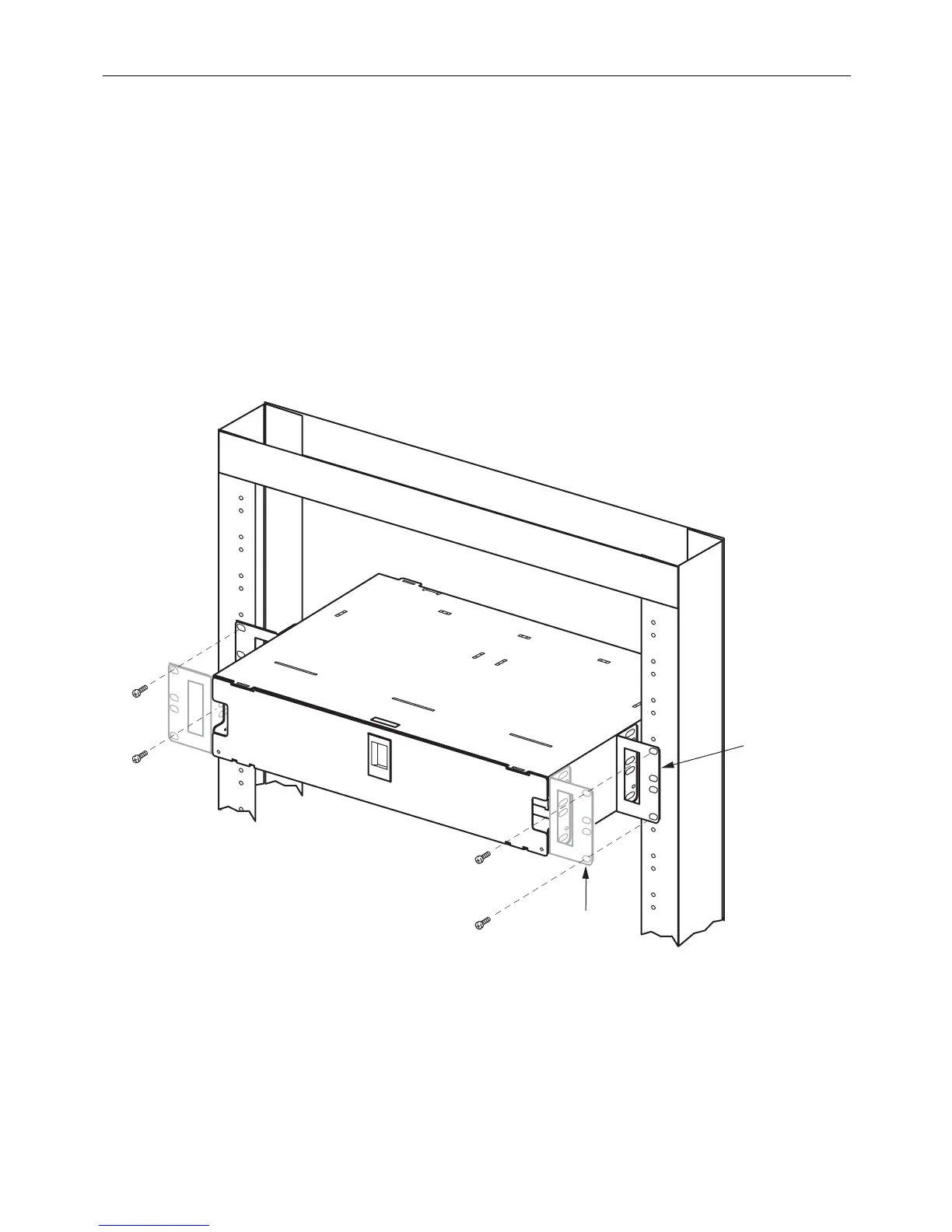

Figure 2. Installing a Chassis on a 23-Inch Rack
