11246-D
CABLE ENTRY
FROM RIGHT
CABLE ENTRY
FROM LEFT
TIE OFF USING
TIE-DOWN BRACKET
SUPPLIED WITH PANEL
TIE OFF USING
TIE-DOWN BRACKET
SUPPLIED WITH PANEL
TIE DOWN ON OPPOSITE
SIDE FROM ENTRY USING
CORD LACING SECURED
ON LANCE
TIE DOWN ON OPPOSITE
SIDE FROM ENTRY USING
CORD LACING SECURED
ON LANCE
IFC OR OSP
CABLE
A
A
A
B
B
B
C
C
C
D
D
D
SHEATH
87.0 IN.
(220.98 CM)
53.0 IN.
(134.62 CM)
18.0 IN.
(47.72 CM)
16.0 IN.
(40.64 CM)
SUB-UNITS
FIBERS
CONNECTORS
ATTACH USING
CURLY LOCK
SUPPLIED WITH
PANEL
ADCP-90-545 • Issue 4 • July 2016
Page 9
© 2016 CommScope. All Rights Reserved.

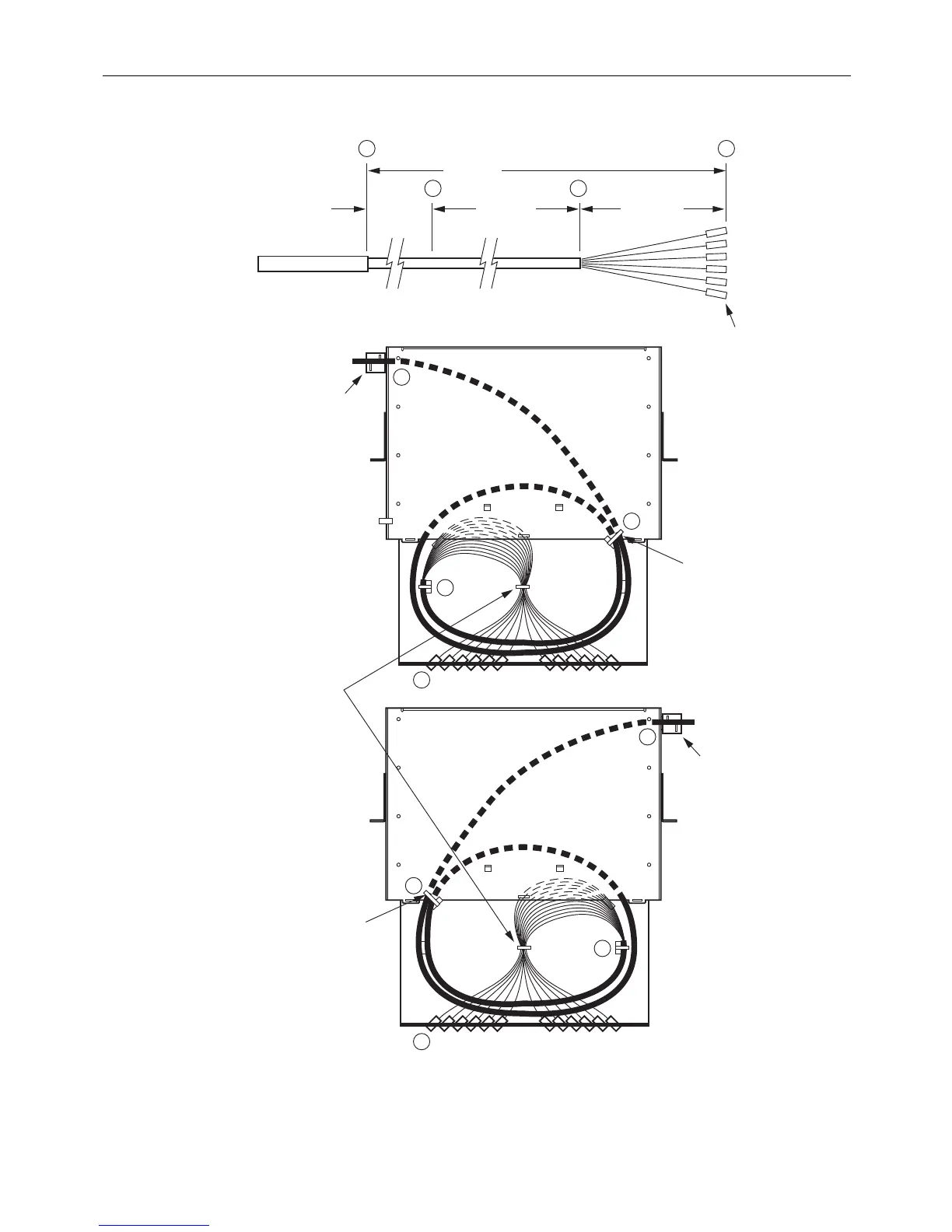

Figure 6. Cable Breakout for 12-Fiber Panel
