INS_CNGE2+2SMS_REV– 02/19/13 PAGE 20
INSTALLATION AND OPERATION MANUAL CNGE2+2SMS[POE][HO]
TECH SUPPORT: 1.888.678.9427

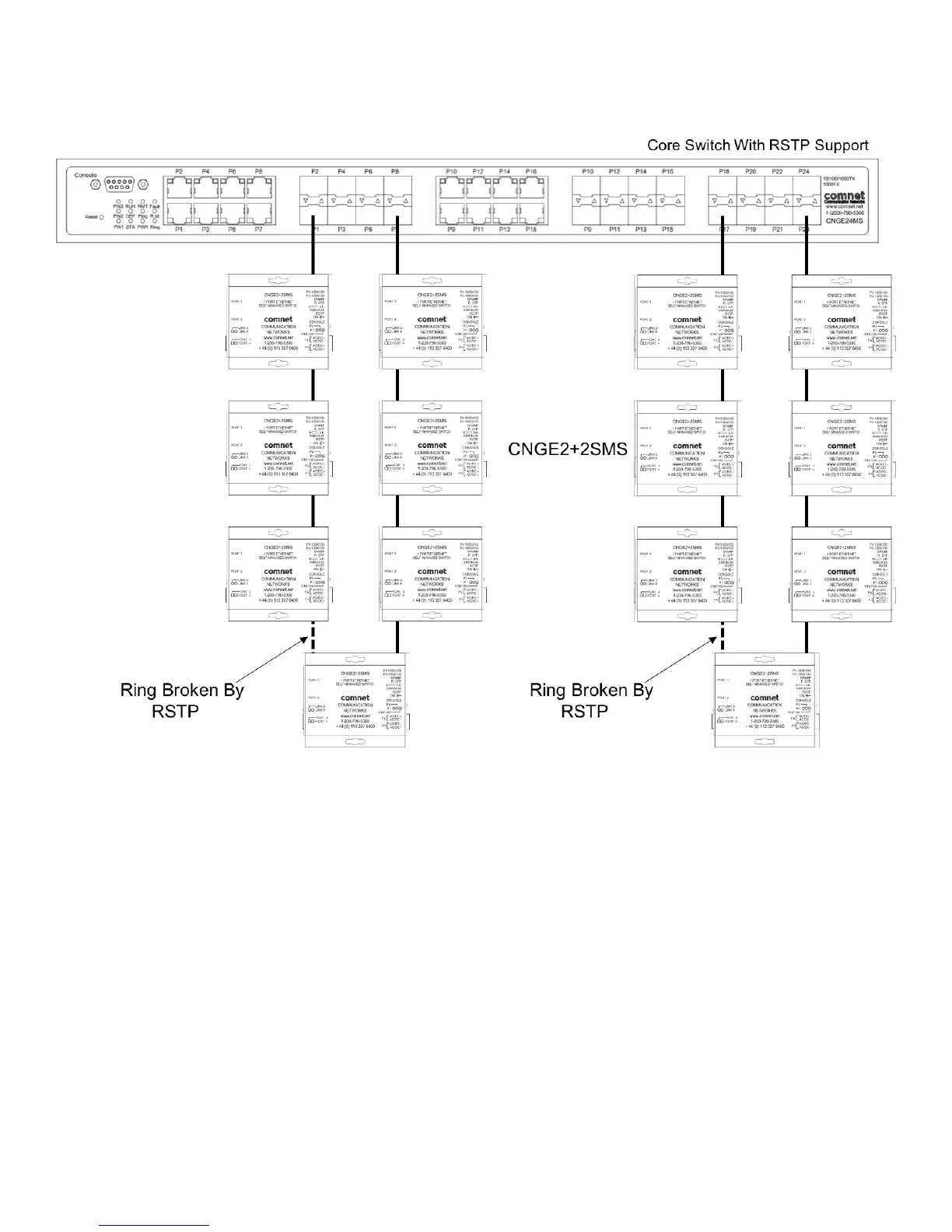

RSTP Enabled (Multiple Rings) (DIP Switch 1 ON)
Attention: ComNet recommends maximum number of units per ring is limited to 20 devices.
Numbers higher than this may cause undesired performance and are not supported
by ComNet.
Attention: Central switch must be manually configured to be the root bridge. This requirement is
mandatory for correct performance in a multiple ring scenario.
Attention: ComNet recommends maximum number of rings per core switch is limited to 3-4.
The actual number supported will depend on the processing power of the core switch
used and other features that may be enabled on the core switch. Please contact
ComNet Technical Support to discuss your application prior to ordering.
