INS_CNGE2+2SMS_REV– 02/19/13 PAGE 39
INSTALLATION AND OPERATION MANUAL CNGE2+2SMS[POE][HO]
TECH SUPPORT: 1.888.678.9427

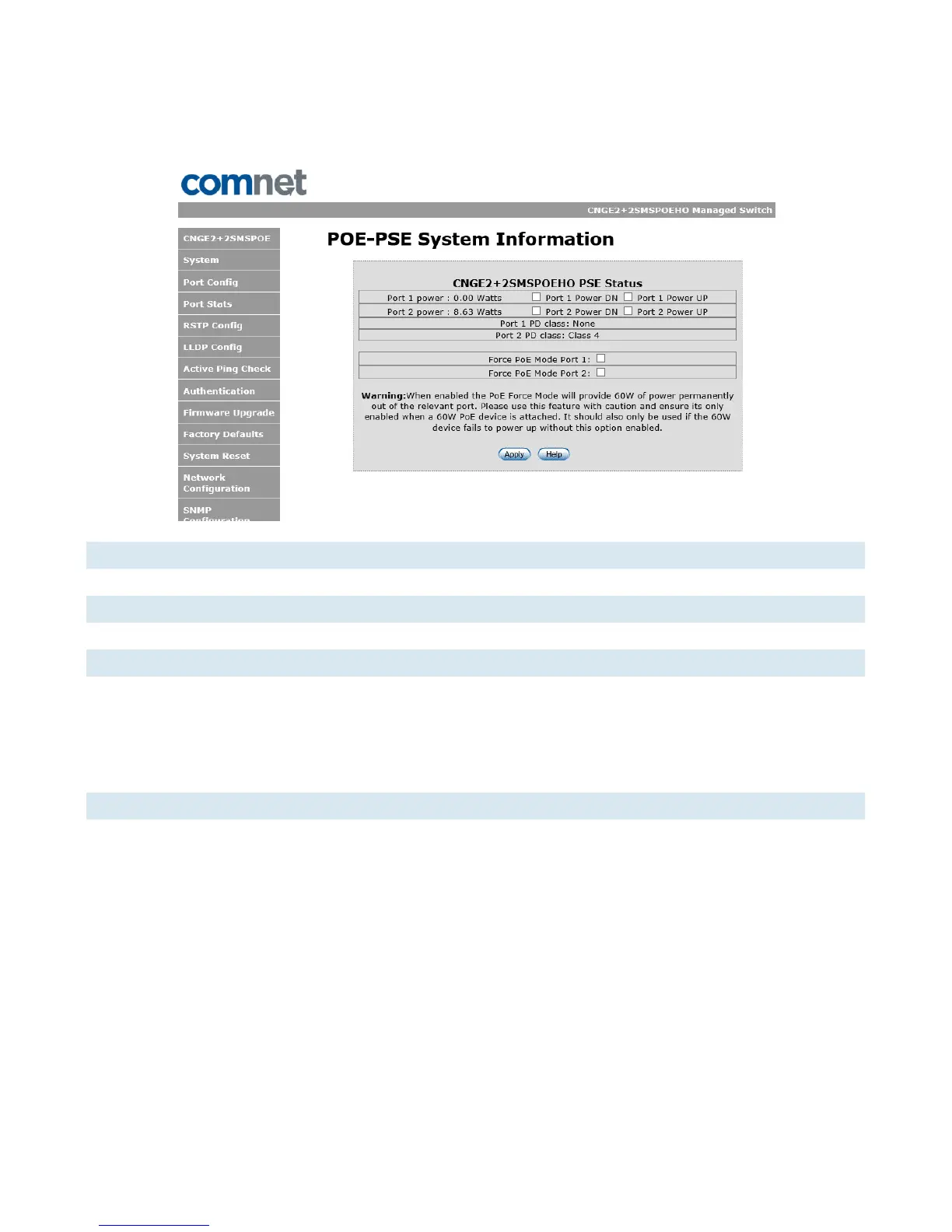

CNGE2+2SMSPOE[HO] PoE-PSE-Status Information
Label Description
Port Power Displays the amount of power being used on the port in watts
Port Power DN Turns off PoE power to the associated port
Port Power UP Turns on PoE power to the associated port
Port PD Class Displays the PoE class being used by the PoE device
Force PoE Mode Enables 60 W of PoE in manual forced mode (HO models only).
Warning - please use this feature with caution and ensure it’s only enabled
when a 60 W PoE device is attached. It should only be enabled if the 60 W
devices fail to power up without this option enabled.
Apply Select Apply to activate the selected configurations
Help Show help file
