6–38 433612-001 Service Reference Guide, dc7700
Removal and Replacement Procedures - Convertible Minitower (CMT) Chassis

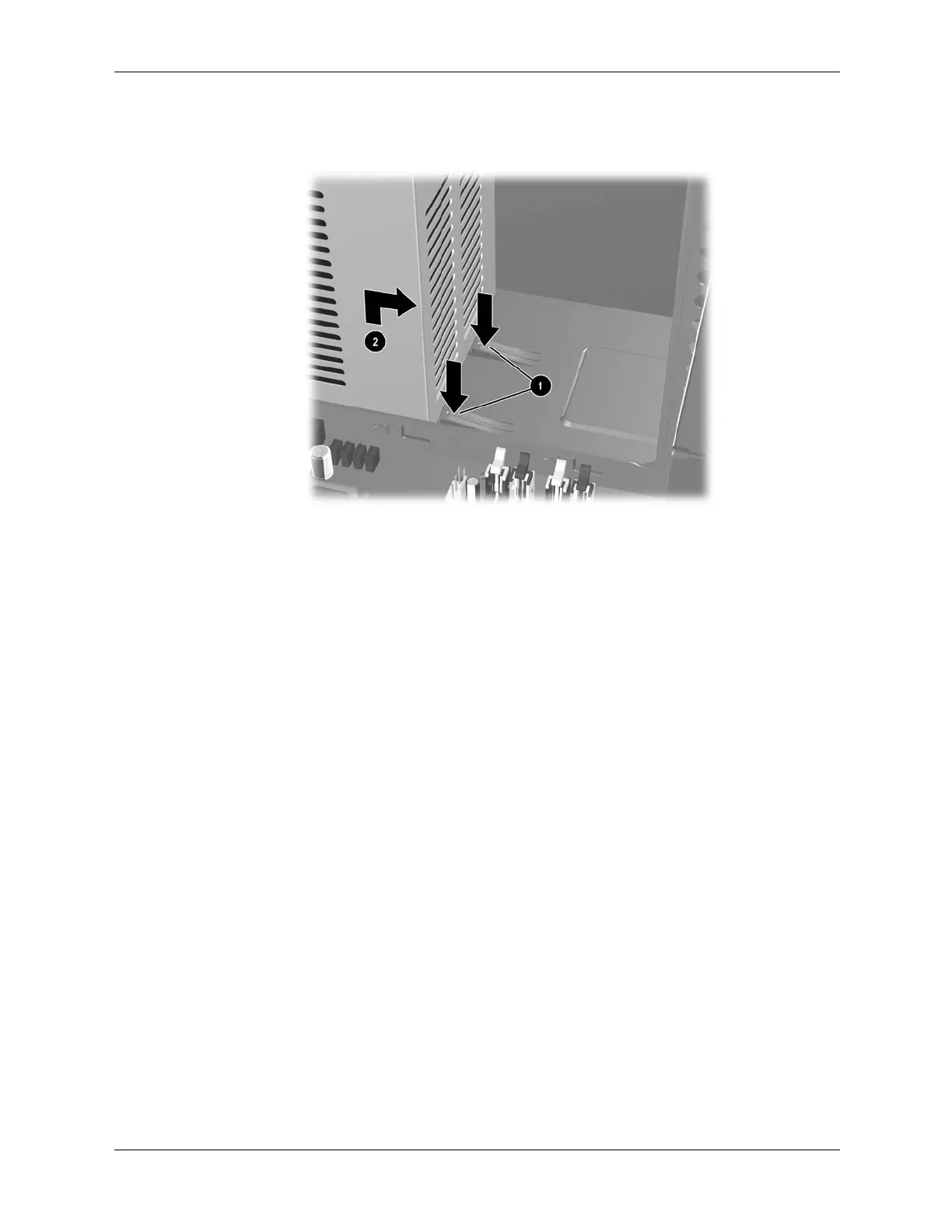

4. With the power supply stopped by the retaining clips 1, lift the power supply to raise it over
the clips then slide the power supply forward 2 to remove it from the computer.
To install the power supply, reverse the removal procedure.
