Service Reference Guide, dc7700 433612-001 6–39
Removal and Replacement Procedures - Convertible Minitower (CMT) Chassis
6.23 Changing from Desktop to Minitower
1. Prepare the computer for disassembly (Section 6.1).
2. Remove the computer access panel (Section 6.5).
3. Remove the front bezel (Section 6.6).
4. Disconnect all power and data cables from the back of the drives in the 5.25-inch drive bays.

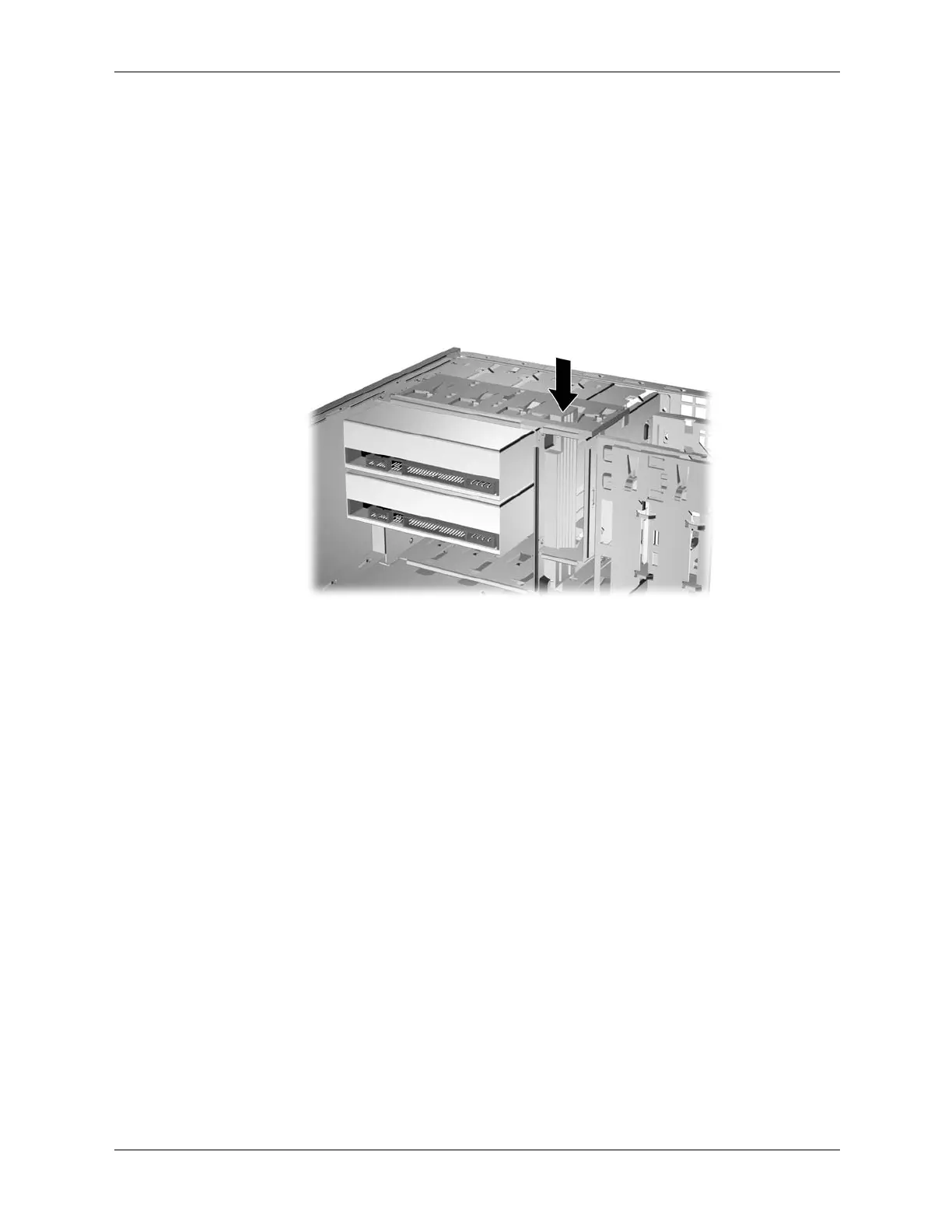

5. To release the drives from the 5.25-inch drive bay, press down on the short yellow drivelock
as shown. While pressing the drivelock, pull the drives out of the drive bay.
