6–6 433612-001 Service Reference Guide, dc7700
Removal and Replacement Procedures - Convertible Minitower (CMT) Chassis
6.6 Front Bezel
1. Prepare the computer for disassembly (Section 6.1).
2. Remove the computer access panel (Section 6.5).

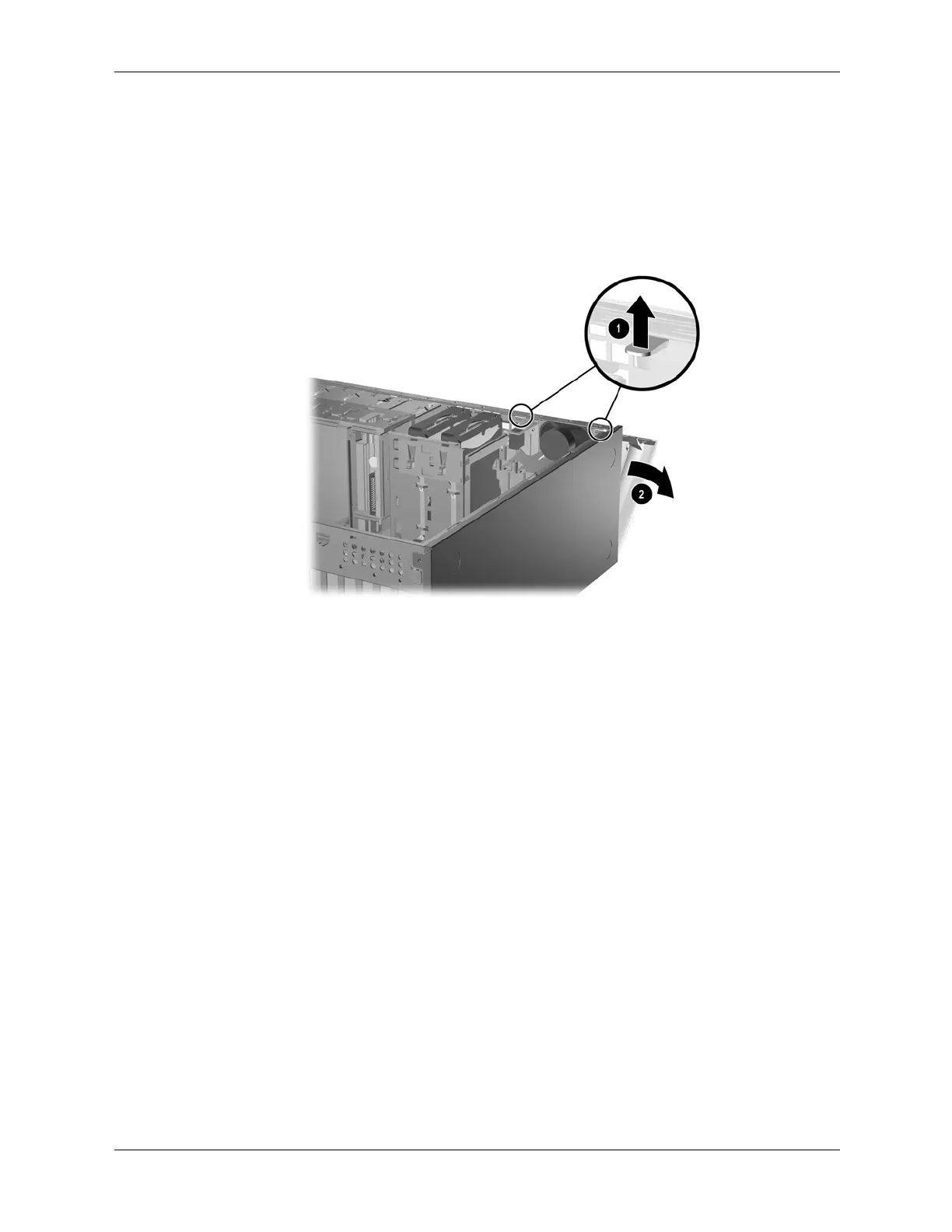

3. Push up on the two release tabs 1, then rotate the front bezel away from the chassis to
release it 2.
To reinstall the front bezel, reverse the removal procedure
