Service Reference Guide, dc7700 433612-001 7–31
Removal and Replacement Procedures— Small Form Factor (SFF) Chassis
7.13 Front I/O D evi ces
1. Prepare the computer for disassembly (Section 7.1).
2. Remove the computer cover (Section 7.5).

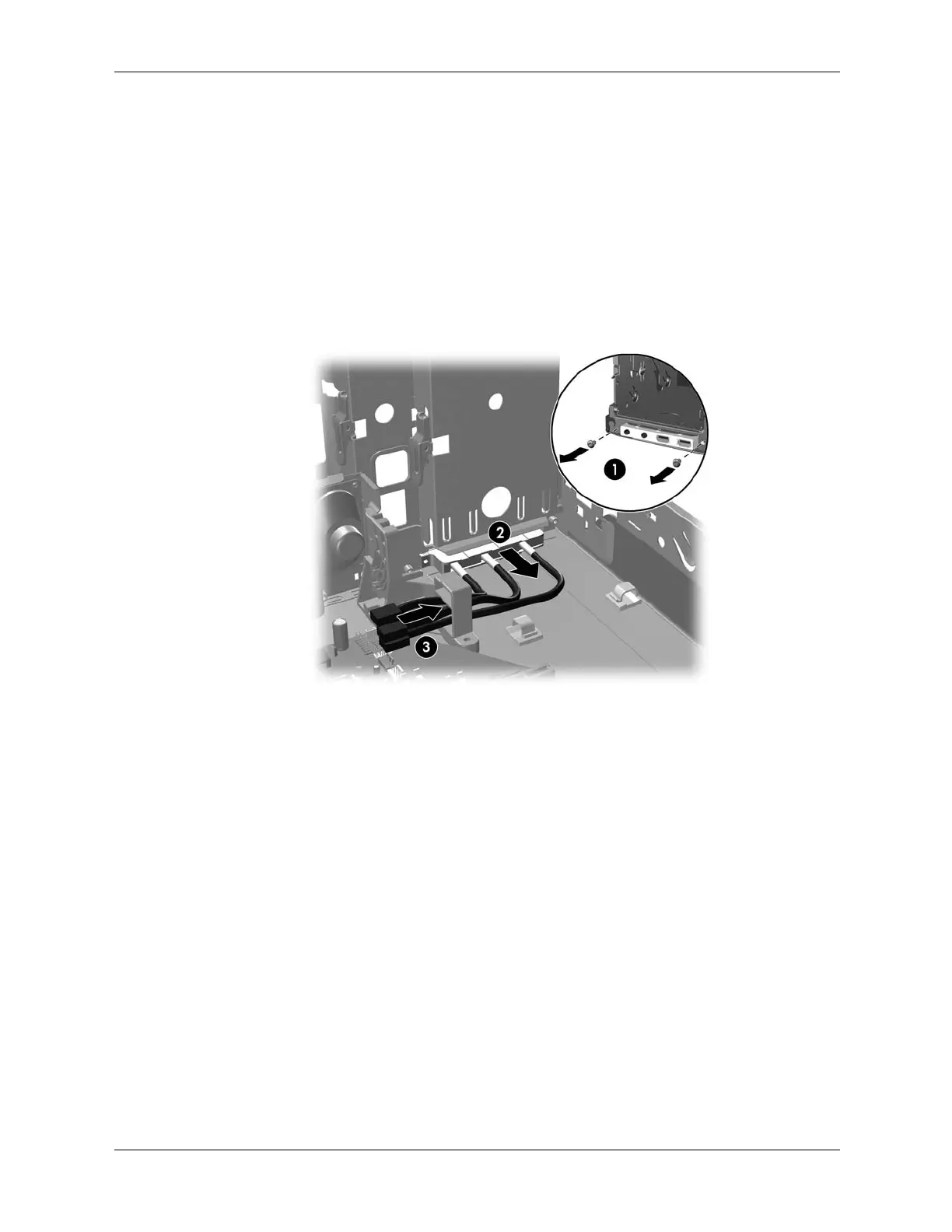

3. Remove the two screws that secure the front I/O device to the chassis 1.
4. Rotate the drive cage to its full upright position.
5. Disconnect the front I/O cable from the system board.
6. Push the front I/O device into the chassis 2 and snake the cable through the tunnel 3 to
remove the device from the chassis.
To reinstall the front I/O device, reverse the removal procedure.
