Service Reference Guide, dc7700 433612-001 8–7
Removal and Replacement Procedures - Ultra-Slim Desktop (USDT) Chassis
8.5 Front Panel Assembly
1. Prepare the computer for disassembly (Section 8.1).
2. Remove the computer access panel (Section 8.3).
3. Lift up on the two green locking levers on the left and right sides of the chassis. This will
unlatch the front panel assembly and push it about 1.3 cm (1/2 inch) out of the chassis. The
assembly will automatically stop at that distance.

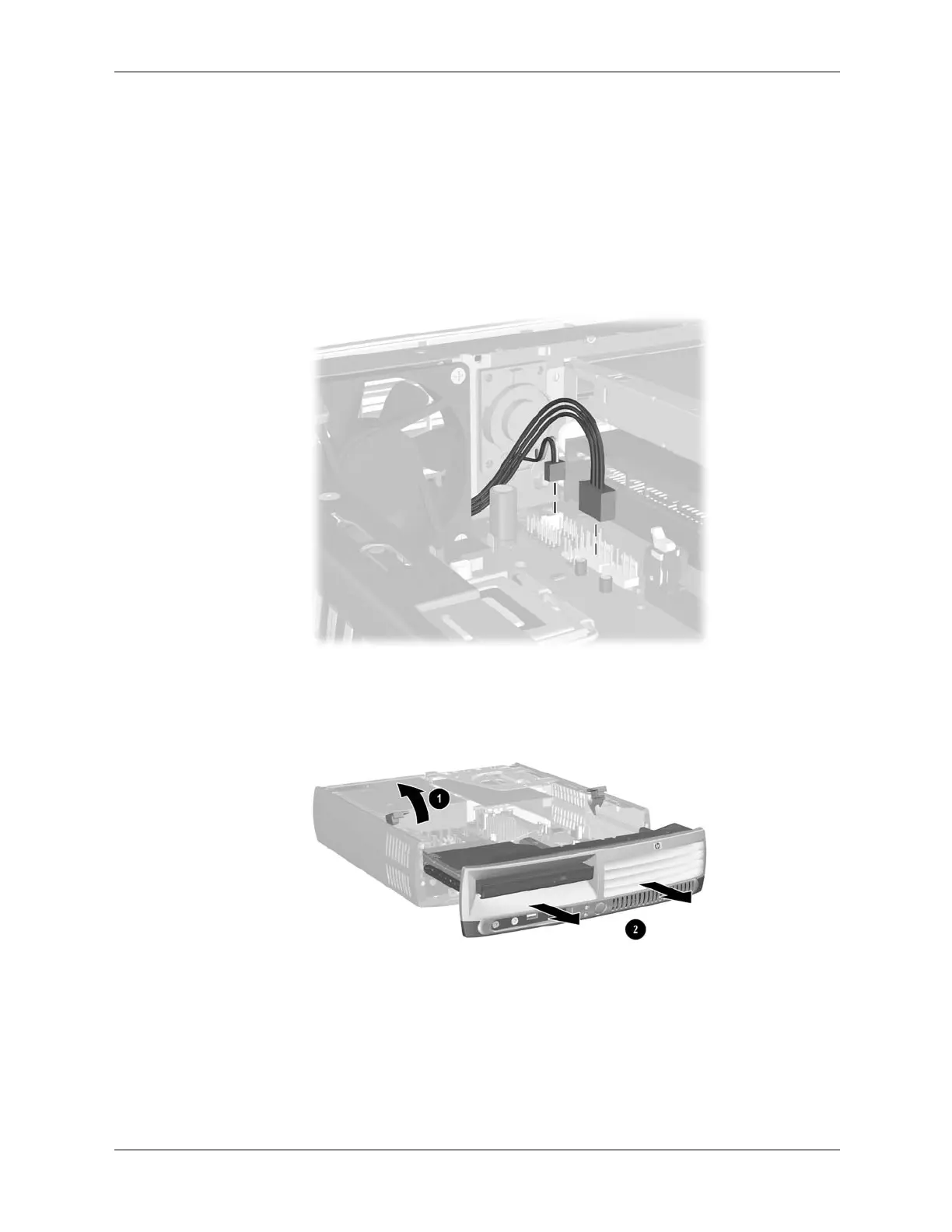

4. Disconnect the fan and speaker cables from the system board.
5. Lift the left lever again 1 and pull the front panel assembly straight out of the chassis 2.
To reinstall the front panel assembly, reverse the removal procedure.
