Service Reference Guide, dc7700 433612-001 6–27
Removal and Replacement Procedures - Convertible Minitower (CMT) Chassis
6.15 Power Switch Assembly
1. Prepare the computer for disassembly (Section 6.1).
2. Remove the computer access panel (Section 6.5).
3. Remove the front bezel (Section 6.6).
4. Disconnect the power switch/LED cable from the system board.

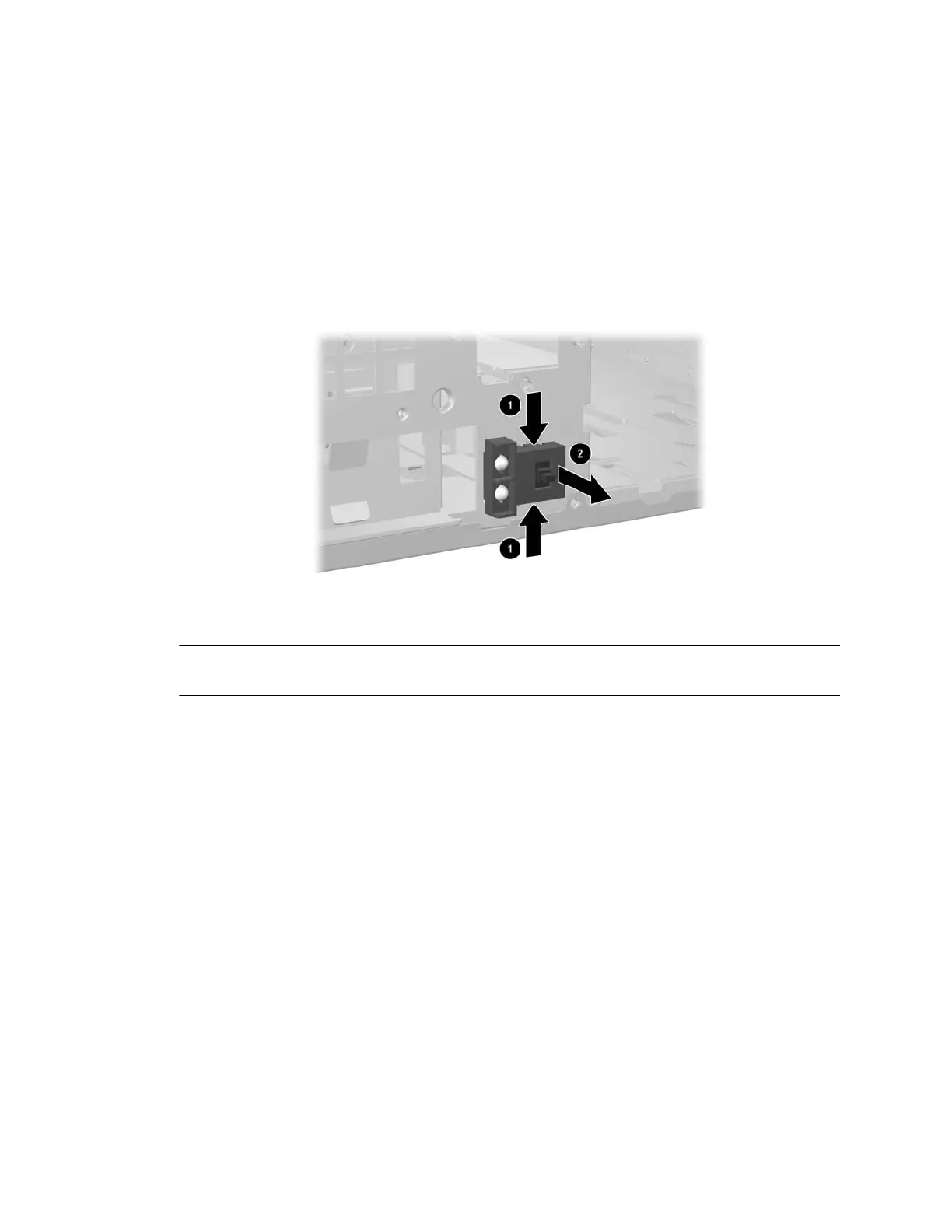

5. Squeeze the switch holder retaining clips together at the front of the chassis 1 and pull the
switch assembly out of the chassis 2.
To install the power switch assembly, reverse the removal procedure.
✎
When installing the power switch cable it may be necessary to disconnect a data cabe from one
of the drives to make it easier to grab the free end of the cable.
