8–8 433612-001 Service Reference Guide, dc7700
Removal and Replacement Procedures - Ultra-Slim Desktop (USDT) Chassis
8.6 Front Bezel
1. Prepare the computer for disassembly (Section 8.1).
2. Remove the computer access panel (Section 8.3).
3. Remove the optical drive (Section 8.4).
4. Disconnect the fan and speaker cables from the system board.
5. Remove the front panel assembly (Section 8.5).

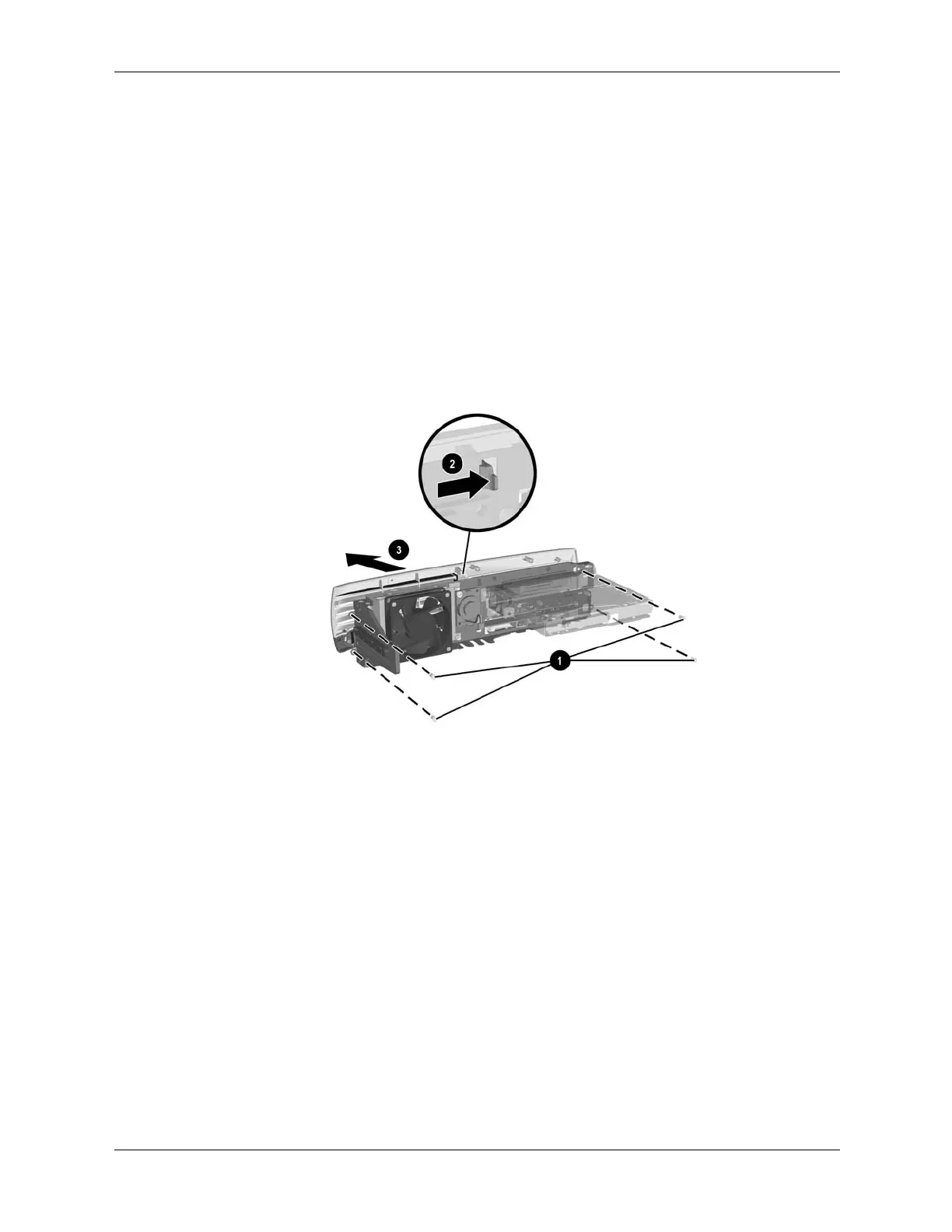

6. Use a #0 Phillips screwdriver to remove the four screws that secure the front bezel to the
front panel assembly 1.
7. Release the catch 2 that keeps the top of the bezel in place.
8. Pull the front bezel away from the assembly 3.
To reinstall the front bezel, reverse the removal procedures.
