Service Reference Guide, dc7700 433612-001 7–37
Removal and Replacement Procedures— Small Form Factor (SFF) Chassis

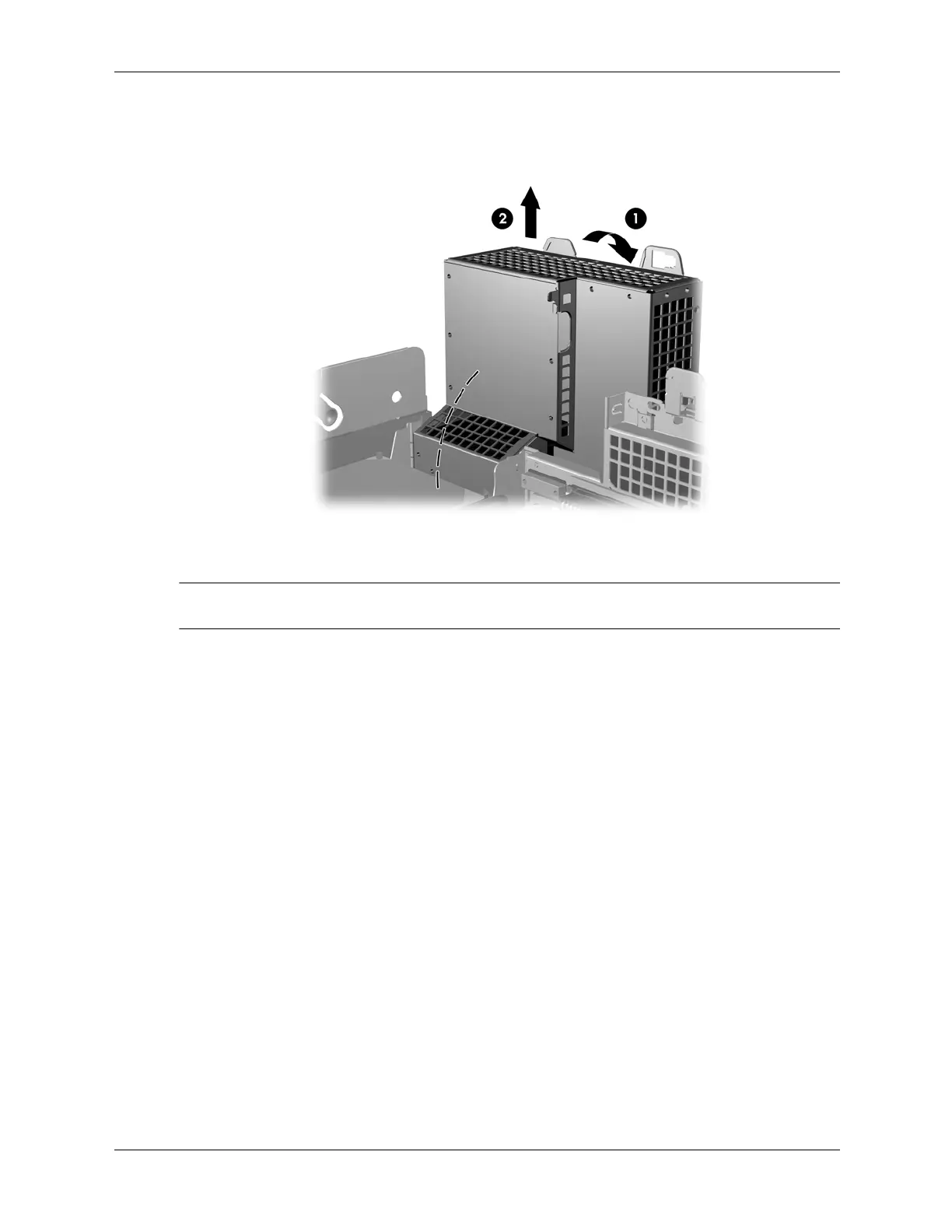

8. Rotate the power supply to its full upright position 1, then lift the power supply straight up
and out of the chassis 2.
To install the power supply, reverse the removal procedure.
Ä
CAUTION: When installing the power supply cables, make sure they are properly positioned so they
are not cut by the drive cage and are not pinched by the rotating power supply.
