7–40 433612-001 Service Reference Guide, dc7700
Removal and Replacement Procedures— Small Form Factor (SFF) Chassis

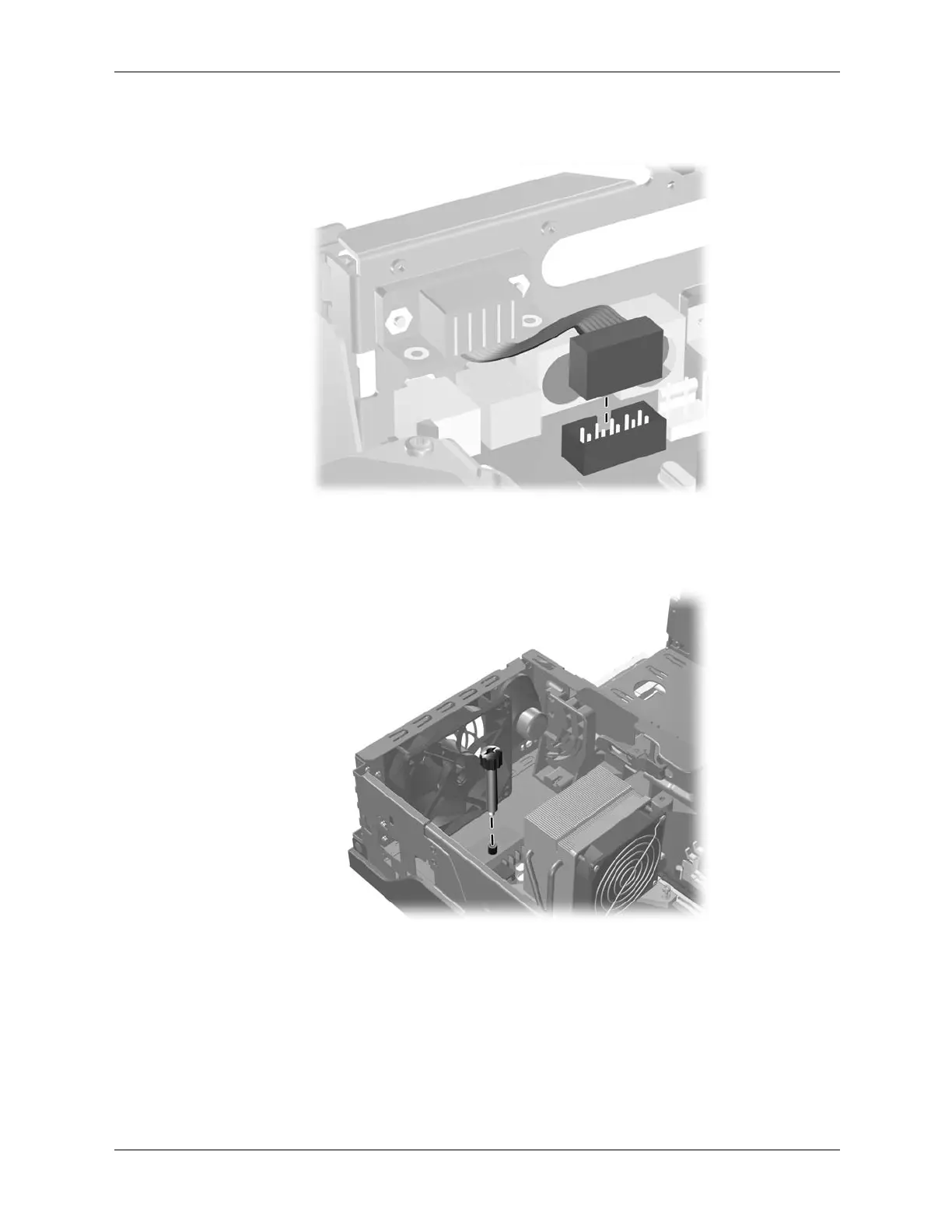

9. Disconnect the serial port from the system board.
10. Disconnect the balance of the cables from the system board.
11. Remove the long mounting screw that secures the system board tray to the chassis.
