8–2 433612-001 Service Reference Guide, dc7700
Removal and Replacement Procedures - Ultra-Slim Desktop (USDT) Chassis

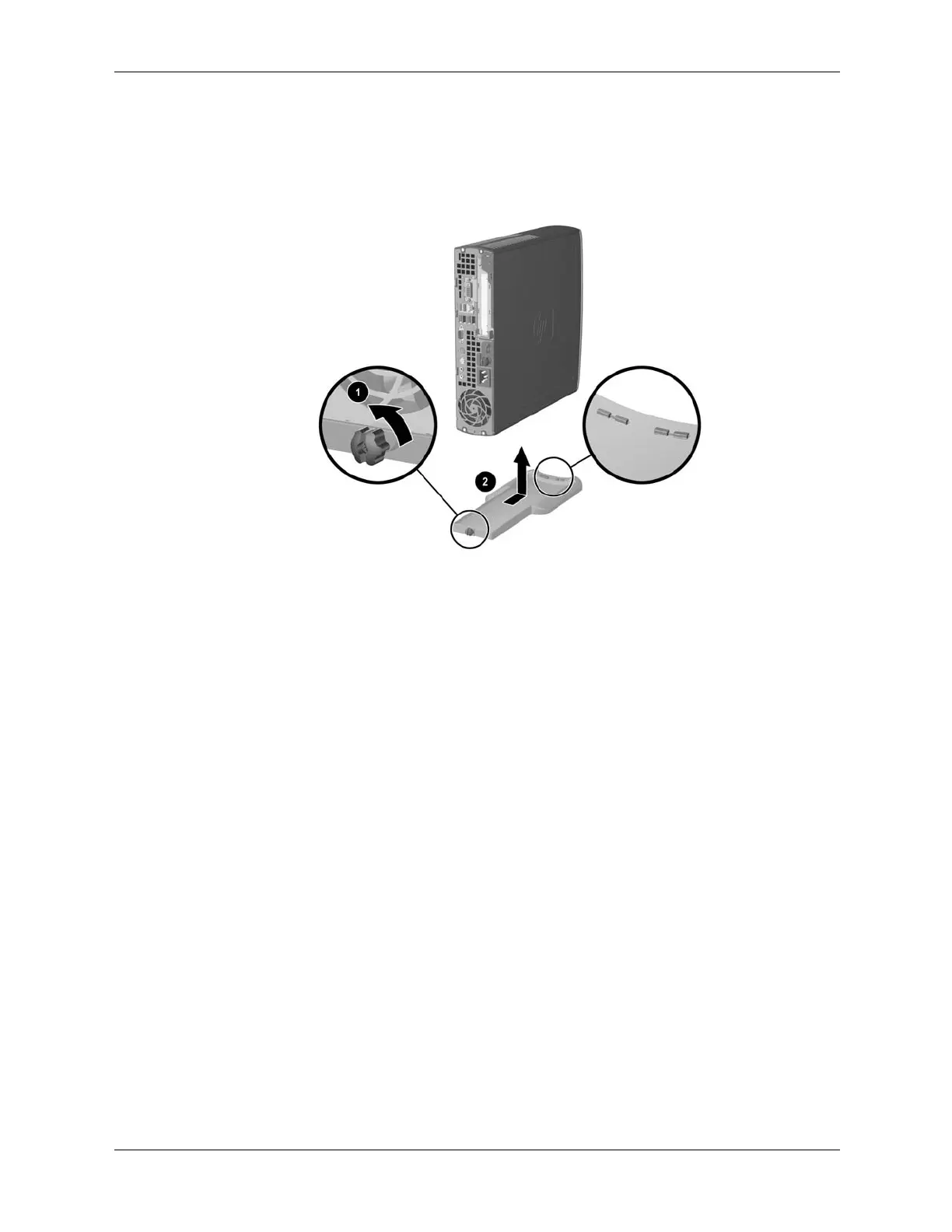

8. If the PC is mounted in the accessory mounting stand, loosen the thumbscrew that secures
the computer to the stand 1.
9. Slide the computer forward until it is disengaged from the hooks on the front of the tower
stand, then lift the computer off the stand 2 and lay the computer down on its rubber feet.
