5–14 Maintenance and Service Guide
Removal and Replacement Procedures
6. Disconnect the modem cable from the mini PCI
communications board 1 (Figure 5-8).
7. Spread the retaining tabs 2 to release the mini
PCI communications board. The board tilts up at a
45-degree angle.
8. Remove the board by pulling it away from the connector
at a 45-degree angle 3.

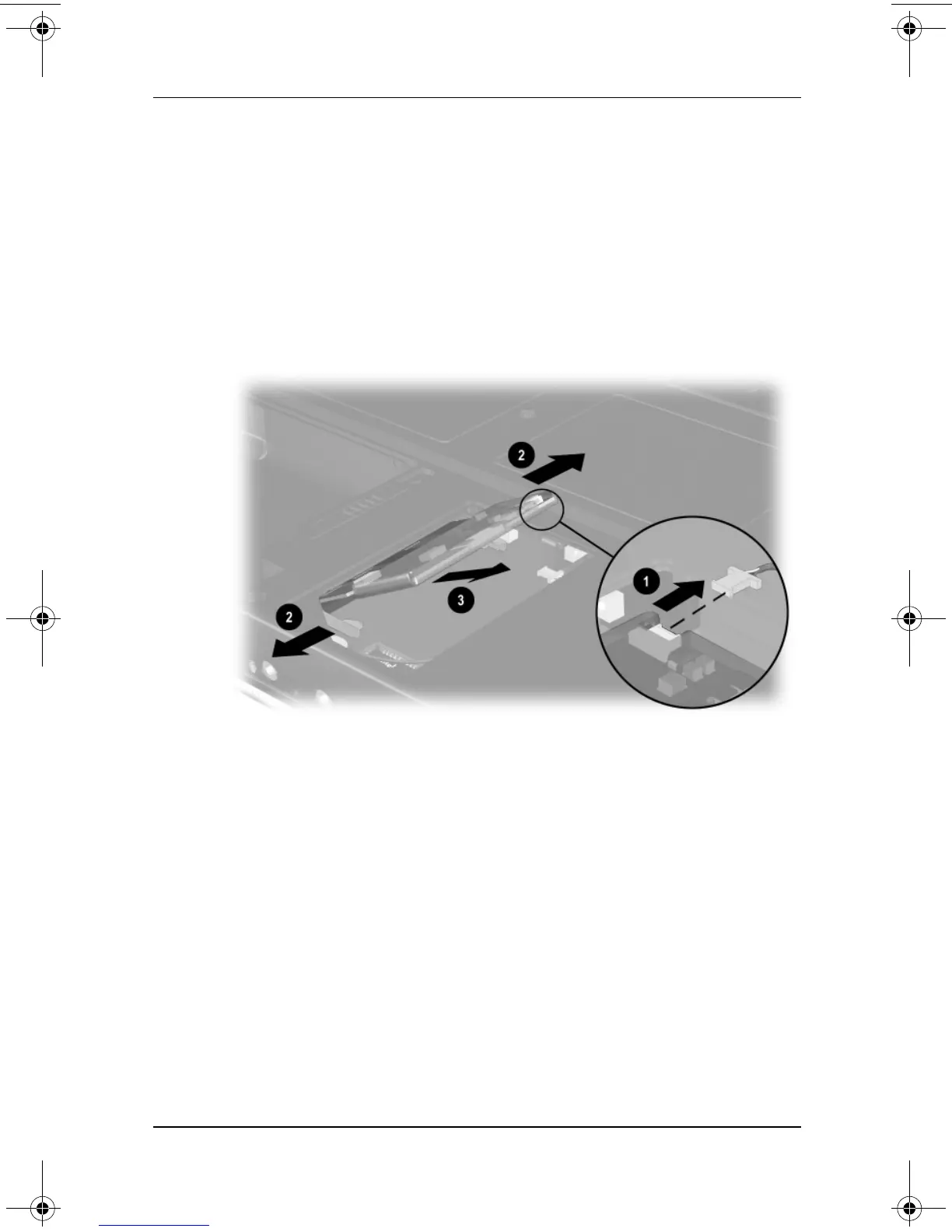

Figure 5-8. Removing the Mini PCI Communications Board
Reverse the preceding procedure to install the mini PCI
communications board and mini PCI compartment cover.
279362-003.book Page 14 Monday, May 19, 2003 1:28 PM
