Removal and Replacement Procedures
Maintenance and Service Guide 5–31
9. Remove the two TM2.5 × 7.0 screws 1 that secure the
display to the base enclosure (Figure 5-19).
10. Lift the display straight up and remove it from the base
enclosure 2.

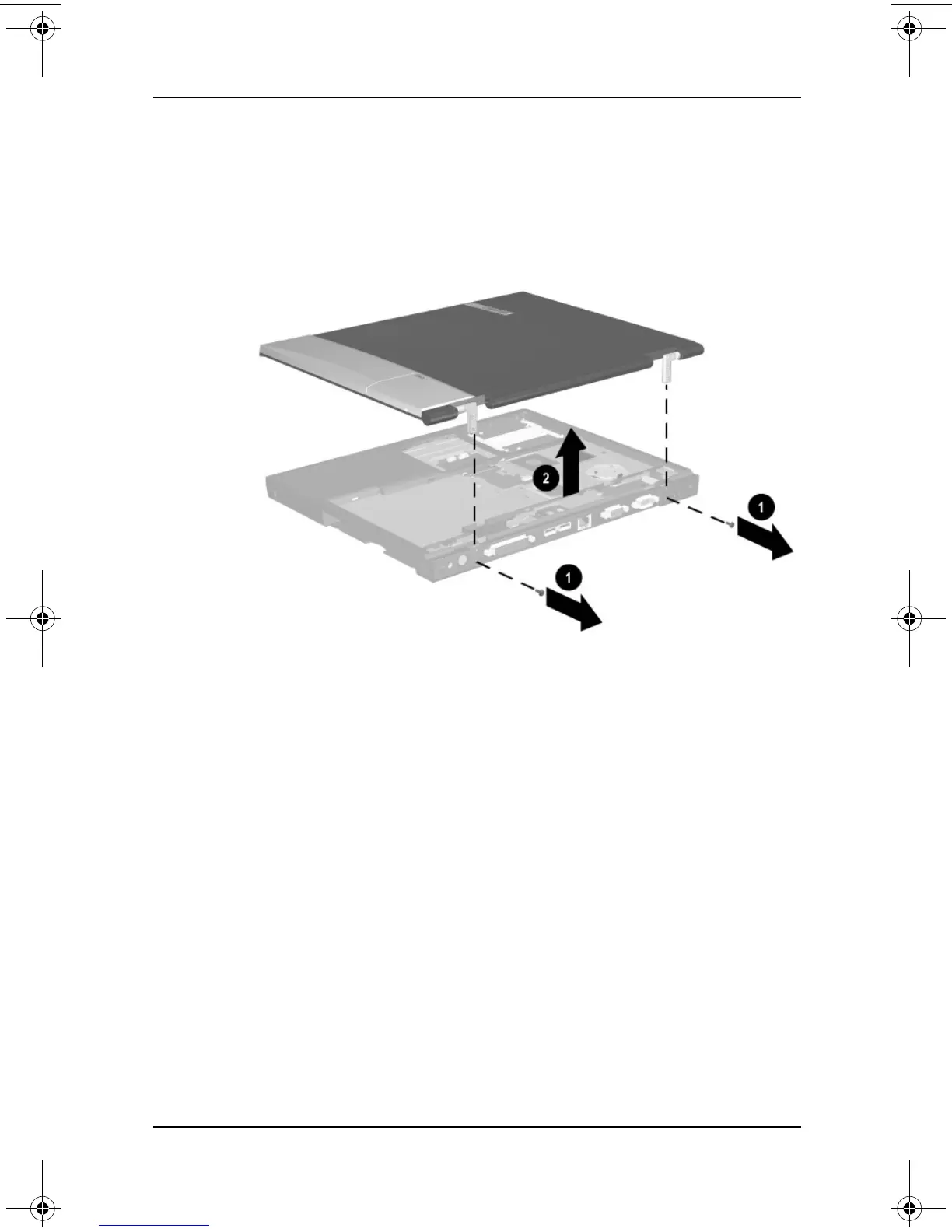

Figure 5-19. Removing the Display
Reverse the preceding procedure to replace the display.
