3. Remove the following screws:
❏ Three TM2.5 × 7.0 screws from the front edge of the base
enclosure 1 (Figure 5-20)
❏ Two TM2.5 × 5.0 screws from the hard drive bay 2
✎
The Evo Notebook N620c contains two TM2.5 × 7.0 screws in
the hard drive bay.
❏ Two TM2.5 × 5.0 screws from the Media Bay 3
❏ Evo Notebook N620c and N600c models—Two
TM2.5 × 5.0 screws from the rear panel 4, or
❏ Evo Notebook N610c and N610v models—Two
TM2.5 × 7.0 screws from the rear panel 4

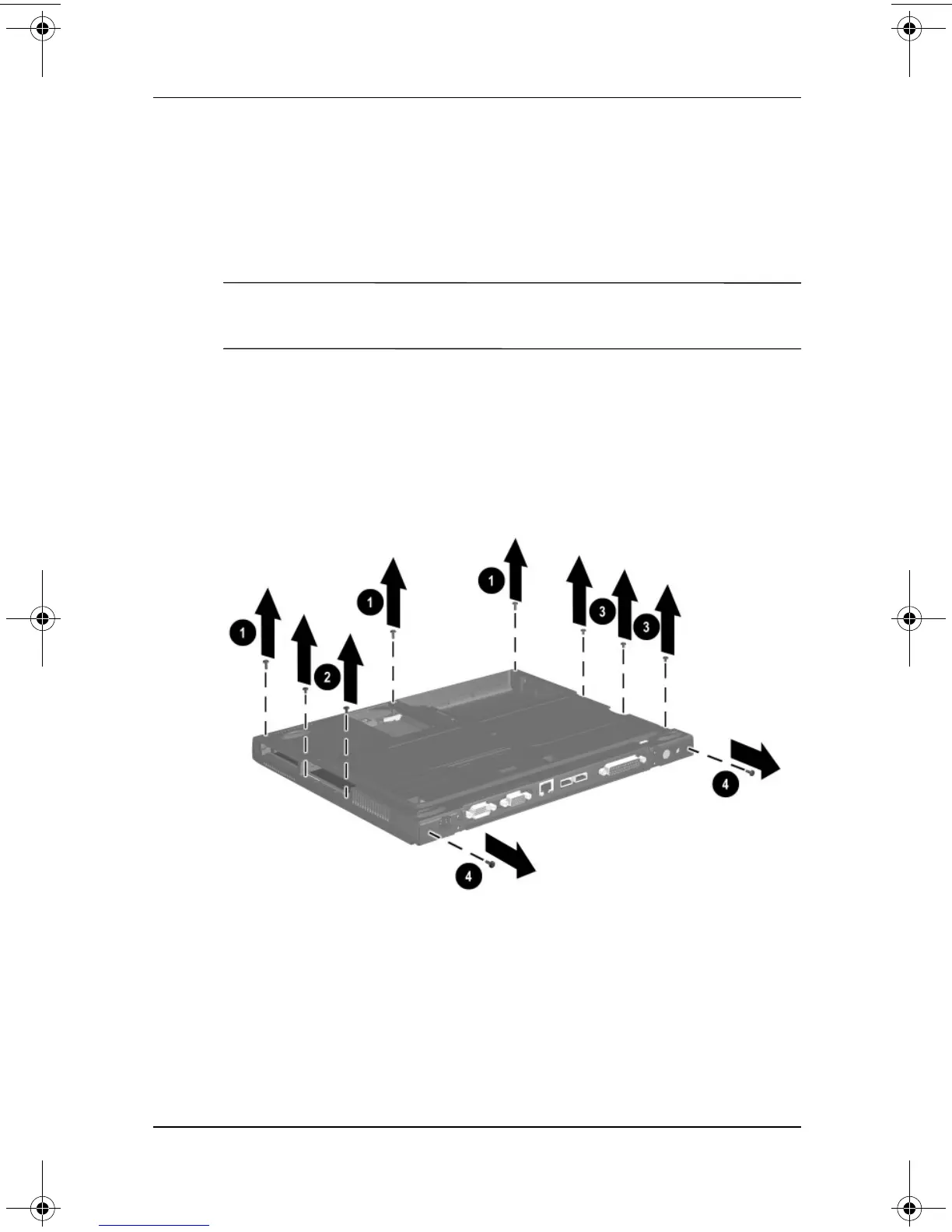

Figure 5-20. Removing the Top Cover Screws
