5–34 Maintenance and Service Guide
Removal and Replacement Procedures
4. Turn the notebook top side up with the front facing you.
5. For Evo Notebook N620c, N610c, N610v models
only—Remove the two TM2.0 × 4.0 1 screws that secure
the top cover to the base enclosure (Figure 5-21).
6. For all notebook models—Remove the TM2.5 × 7.0 2
screw that secures the top cover to the base enclosure.
7. Insert a flat blade screwdriver into the slot 3 on the rear edge
of the top cover to disengage the cover from the I/O bracket.
8. Lift the top cover straight up and remove it from the base
enclosure 4.

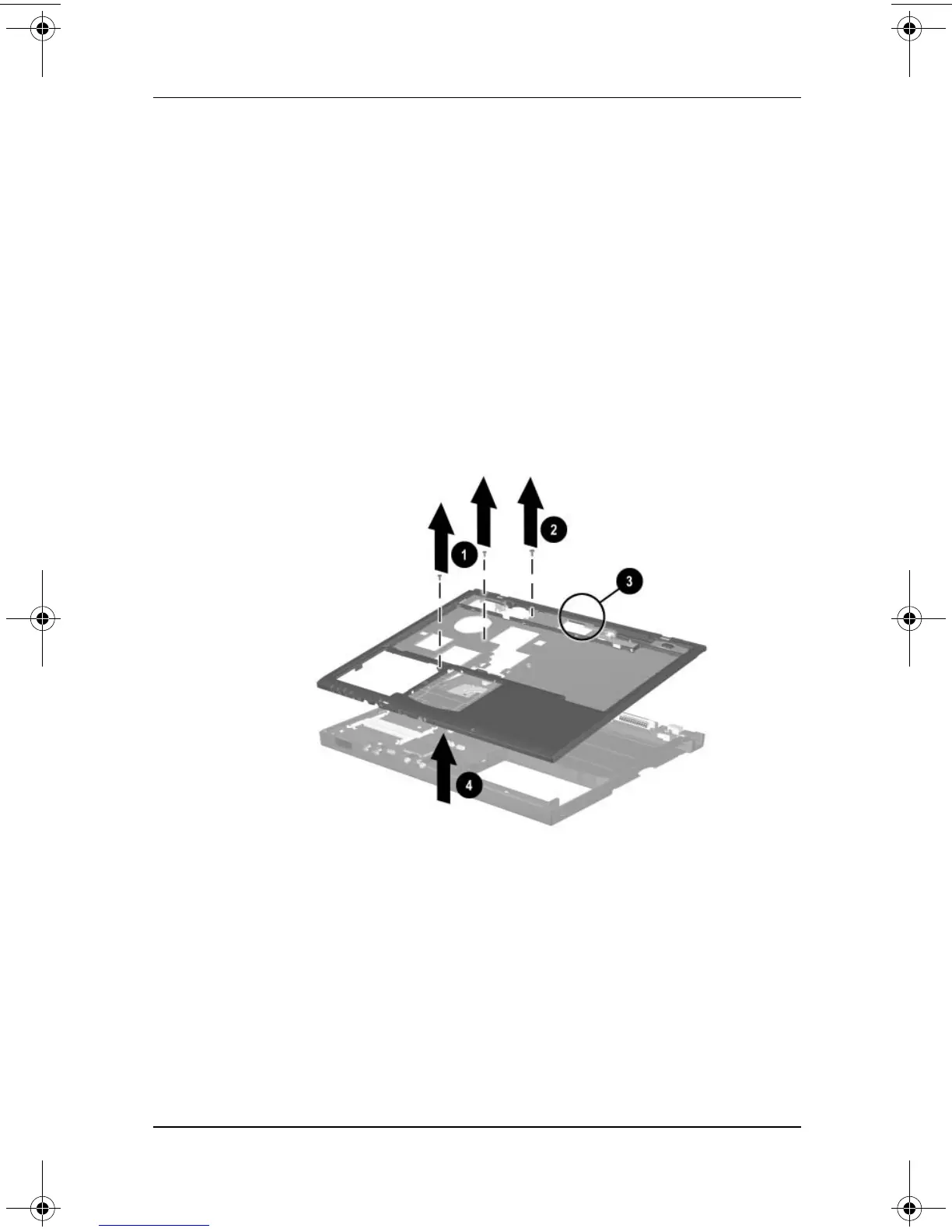

Figure 5-21. Removing the Top Cover
Reverse the preceding procedure to replace the top cover.
