Figure 5-26 applies only to Evo Notebook N600c models. When
handling the system board, be careful not to put stress on the I/O
interface board 1. The narrow profile of this board makes it
susceptible to being damaged when mishandled. Do not remove
the screw 2 that secures the I/O interface board to the system
board or attempt to remove the I/O interface board. The system
board should only be removed and handled using the Media Bay
connector, as illustrated in Figure 5-26.

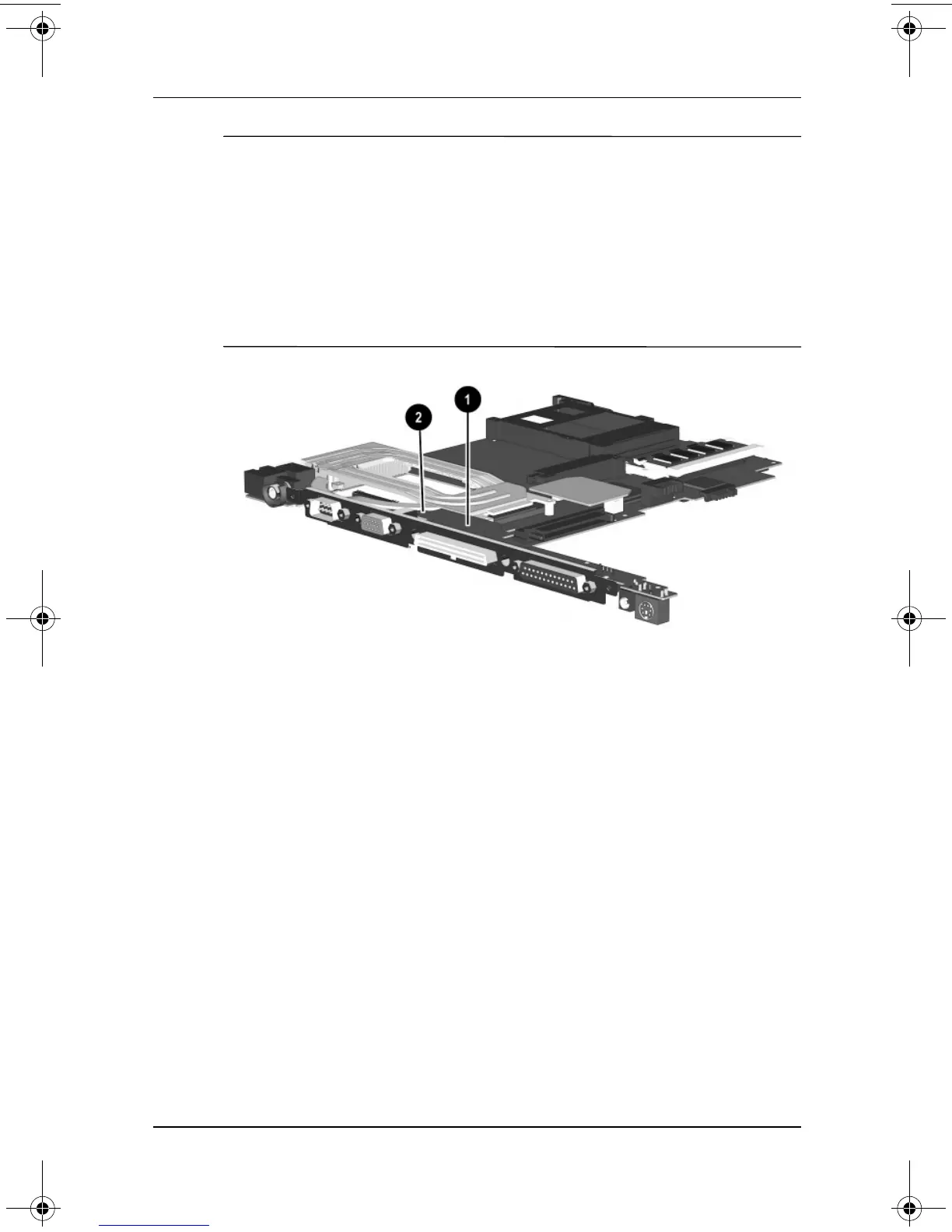

Figure 5-26. Proper Handling of the I/O Interface Board on an
Evo Notebook N600c
